Why choose the G42-1200 Compact Super Core over the standard G42-1200?

Choose it for space. Garrett fits this core with a compact compressor housing that saves room around the inlet and outlet, which helps in crowded engine bays. The compressor wheel, turbine wheel and the 475 to 1200 horsepower rating match the standard version, so the decision comes down to packaging rather than power.

What is the maximum shaft speed for this turbocharger?

Garrett lists 118,000 rpm as the maximum allowable speed for the G42-1200 Compact. Running past that figure is at the risk of the owner and can cause damage and early failure, so Garrett suggests a speed sensor in the compressor housing to watch shaft speed while the engine is tuned.

Which turbine housings fit the compact core?

The G42-1200 Compact Super Core accepts the six Garrett G42 turbine kits: 1.01, 1.15 and 1.28 A/R with a V-band inlet, or the same three sizes with a T4 divided inlet. All six have a V-band outlet and no internal wastegate, so plan for an external gate on the manifold.

Does it need water lines?

Yes. Garrett includes two -6AN water fittings with this core, so the build needs coolant feed and return lines to the center housing as well as an oil feed and a drain. Plan the routing for all four lines before the turbocharger is mounted, since access gets harder once the manifold is in place.

What engines suit the G42-1200 Compact?

Garrett sizes it for 2.0L to 7.0L engines. A heavily built four-cylinder near the top of its power range, an inline six or a small V8 all fall inside that window. For a mild build under 500 horsepower it is larger than needed, and a smaller Garrett frame such as the G35 is the better match.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

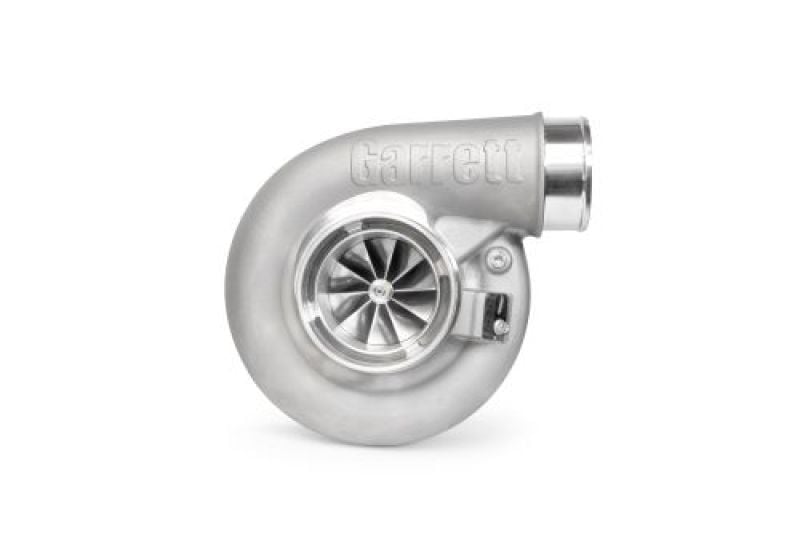

Garrett G42-1200 Compact Super Core, Standard Rotation

Garrett’s G42-1200 Compact Super Core puts the 73mm G-Series compressor wheel of the standard G42-1200 inside a compact 0.90 A/R compressor housing that Garrett designed to save space. Rated at 475 to 1200 horsepower on 2.0L to 7.0L engines, it is the version to buy when an inlet pipe, intercooler pipe or chassis rail leaves little room around the compressor. Where packaging is not a problem, the full-size G42-1200 does the same job, and in both cases the turbine housing and an external wastegate are bought separately.

Turbine and Bearing System

Garrett states that the new G42 turbine wheel flows 10 percent more than the GTX42 wheel and peaks at 77 percent efficiency. The rotor runs on a 10mm ceramic dual ball bearing cartridge shared with the GTX42, and twin piston rings sit on both sides of the shaft to lower the chance of oil leakage.

Features

Compact compressor housing that Garrett designed to save space in tight engine bays
Fully machined speed sensor and pressure ports
Full 360 degree clocking of the compressor housing and non-wastegated turbine housings
Rated by Garrett as 1200 horsepower capable

Specifications

Compressor inducer and exducer: 73mm and 91mm
Compressor trim: 65
Compressor housing A/R: 0.90
Turbine inducer and exducer: 82mm and 75mm
Turbine trim: 84
Bearing system: 10mm ceramic dual ball bearing
Maximum turbocharger speed: 118,000 rpm
Rotation: Standard

What’s Included

G42-1200 super core with compact compressor housing fitted
-6AN water fittings (x2)

Applications

The G42-1200 Compact Super Core is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 2.0L to 7.0L
Power range: 475 to 1200 horsepower (Garrett rating)
Garrett turbine kits: G42 1.01, 1.15 and 1.28 A/R free float, each with a V-band inlet or a T4 divided inlet and a V-band outlet

Notes

The turbine housing is not included; Garrett sells the G42 turbine housing kits separately
All six G42 turbine kits are free float, so an external wastegate is required
The Garrett speed sensor kit is sold separately
Garrett states that running above 118,000 rpm is at the owner’s risk and can result in damage and premature failure

Frequently Asked Questions

Why choose the G42-1200 Compact Super Core over the standard G42-1200? Choose it for space. Garrett fits this core with a compact compressor housing that saves room around the inlet and outlet, which helps in crowded engine bays. The compressor wheel, turbine wheel and the 475 to 1200 horsepower rating match the standard version, so the decision comes down to packaging rather than power.
What is the maximum shaft speed for this turbocharger? Garrett lists 118,000 rpm as the maximum allowable speed for the G42-1200 Compact. Running past that figure is at the risk of the owner and can cause damage and early failure, so Garrett suggests a speed sensor in the compressor housing to watch shaft speed while the engine is tuned.
Which turbine housings fit the compact core? The G42-1200 Compact Super Core accepts the six Garrett G42 turbine kits: 1.01, 1.15 and 1.28 A/R with a V-band inlet, or the same three sizes with a T4 divided inlet. All six have a V-band outlet and no internal wastegate, so plan for an external gate on the manifold.
Does it need water lines? Yes. Garrett includes two -6AN water fittings with this core, so the build needs coolant feed and return lines to the center housing as well as an oil feed and a drain. Plan the routing for all four lines before the turbocharger is mounted, since access gets harder once the manifold is in place.
What engines suit the G42-1200 Compact? Garrett sizes it for 2.0L to 7.0L engines. A heavily built four-cylinder near the top of its power range, an inline six or a small V8 all fall inside that window. For a mild build under 500 horsepower it is larger than needed, and a smaller Garrett frame such as the G35 is the better match.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
