Should I choose the 1.19 A/R G40 Turbine Housing Kit for a 6.0L V8?

Often, yes. The 1.19 A/R G40 Turbine Housing Kit is the largest G40 size, and a 6.0L engine produces enough exhaust flow to spool it while gaining from the lower backpressure. Builders who want stronger midrange should compare it with the 1.06 A/R on the Garrett turbine flow chart.

Is there a twin-scroll version in this size?

Yes. Garrett offers 1.19 A/R G40 housings with either a V-band inlet, this part, or a divided T4 inlet, part 757707-0035. Choose by manifold: a single V-band collector takes this housing, and a divided T4 flange takes the twin-scroll version.

What power can a G40 make with a large housing?

The ceiling depends on the core. Garrett rates the G40-1250 at up to 1250 horsepower, the G40-1150 and GXR40-64 at up to 1150, the G40-1000 at 1000 and the G40-900 at 900. These are potential flywheel figures derived from compressor choke flow.

Is the super core included?

No. This is the turbine housing kit only. The super core, made up of the center housing, rotating assembly and compressor housing, is sold separately, so the owner can choose between the G40-900, G40-1000, G40-1150, G40-1250 and GXR40-64 and pair it with this large housing.

What maximum shaft speed applies?

Garrett gives 125,000 rpm for the G40 and G-Series II G40 cores and 109,000 rpm for the GXR40-64, and warns that exceeding the limit is at the risk of the owner. A speed sensor fitted to the compressor housing is the reliable way to confirm the limit is respected.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

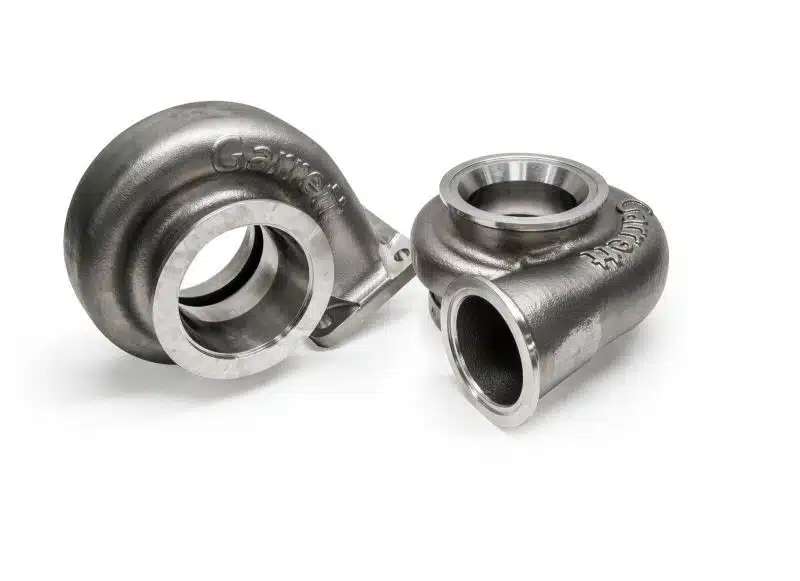

Garrett G40 Turbine Housing Kit, 1.19 A/R V-Band Inlet and Outlet

Garrett’s G40 Turbine Housing Kit in 1.19 A/R is the largest single-scroll G40 housing, stainless steel with V-band joints at both ends and an external wastegate layout. It completes any of the five G40 super cores Garrett lists and is meant for engines that will use all of that flow: displacement near 6.0L, high rpm, and a G40-1250 or GXR40-64 pushed hard. Boost comes in later than with any other G40 housing, so a smaller engine or a road car that rarely sees redline is better served by the 0.95 or 1.06 A/R.

Features

Largest V-band size in the G40 Turbine Housing Kit range
Clamped V-band inlet and outlet
No internal wastegate; an external gate controls boost

Specifications

Garrett part number: 757707-0030
A/R: 1.19
Turbine inlet and outlet: V-band and V-band
Divided inlet: No
Wastegate: External (free float)
Material: Stainless steel
Matching turbine wheel: 77mm inducer and 70mm exducer

Applications

Garrett lists this G40 Turbine Housing Kit for the following cores:

Garrett G40-900: 860777-5003S super core
Garrett G40-1000 G-Series II: 938272-5001S super core, 938271-5001S CHRA
Garrett G40-1150: 860777-5002S super core
Garrett G40-1250 G-Series II: 938272-5002S super core, 938271-5002S CHRA
Garrett GXR40-64 G-XRace: 934173-5005S super core

Notes

An external wastegate is required, because this housing has no internal wastegate
The G40 super core is sold separately
Garrett sets the maximum turbocharger speed at 125,000 rpm for the G40 and G-Series II G40 cores and 109,000 rpm for the GXR40-64; running above it is at the owner’s risk
Smaller sizes and divided T4 versions are listed under G40 turbine housings
Garrett does not publish a hardware list for this kit; confirm clamps and gaskets before ordering

Frequently Asked Questions

Should I choose the 1.19 A/R G40 Turbine Housing Kit for a 6.0L V8? Often, yes. The 1.19 A/R G40 Turbine Housing Kit is the largest G40 size, and a 6.0L engine produces enough exhaust flow to spool it while gaining from the lower backpressure. Builders who want stronger midrange should compare it with the 1.06 A/R on the Garrett turbine flow chart.
Is there a twin-scroll version in this size? Yes. Garrett offers 1.19 A/R G40 housings with either a V-band inlet, this part, or a divided T4 inlet, part 757707-0035. Choose by manifold: a single V-band collector takes this housing, and a divided T4 flange takes the twin-scroll version.
What power can a G40 make with a large housing? The ceiling depends on the core. Garrett rates the G40-1250 at up to 1250 horsepower, the G40-1150 and GXR40-64 at up to 1150, the G40-1000 at 1000 and the G40-900 at 900. These are potential flywheel figures derived from compressor choke flow.
Is the super core included? No. This is the turbine housing kit only. The super core, made up of the center housing, rotating assembly and compressor housing, is sold separately, so the owner can choose between the G40-900, G40-1000, G40-1150, G40-1250 and GXR40-64 and pair it with this large housing.
What maximum shaft speed applies? Garrett gives 125,000 rpm for the G40 and G-Series II G40 cores and 109,000 rpm for the GXR40-64, and warns that exceeding the limit is at the risk of the owner. A speed sensor fitted to the compressor housing is the reliable way to confirm the limit is respected.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
