Which cores fit the G40 Turbine Housing Kit?

Garrett lists this 0.85 A/R G40 Turbine Housing Kit for the G40-900, G40-1150, G-Series II G40-1000 and G40-1250, and the G-XRace GXR40-64. All five use the same 77mm by 70mm turbine wheel, so the housing moves with the owner through any of those core choices.

Is the 0.85 A/R the fastest-spooling G40 housing?

Yes. Of the 0.85, 0.95, 1.06 and 1.19 A/R G40 housings, the 0.85 has the smallest passage and drives the turbine wheel hardest at low exhaust flow. It suits engines toward 2.0L to 3.0L or builds that value response over peak power.

Will my GTX42 downpipe flange fit this housing?

Garrett states that the outlet V-band of the G40 T4 turbine housing measures 117.4mm, or 4.622 inches, outside diameter, equal to the GTX42, GTX45 and G42 models. A downpipe built for one of those housings should therefore match this outlet.

Do I need an external wastegate?

Yes. The housing is free float, with no internal wastegate port or actuator. Boost is held by an external wastegate mounted on the exhaust manifold ahead of the turbine, so the manifold needs a gate flange and the gate is bought separately.

Can I move from a G40-900 to a G-Series II core and keep this housing?

Yes. Garrett states that G-Series II uses the Gen I compressor and turbine housings, so a G40-900 or G40-1150 owner can fit a G40-1000 or G40-1250 CHRA and keep this housing. A calibration is needed to use the extra compressor flow.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

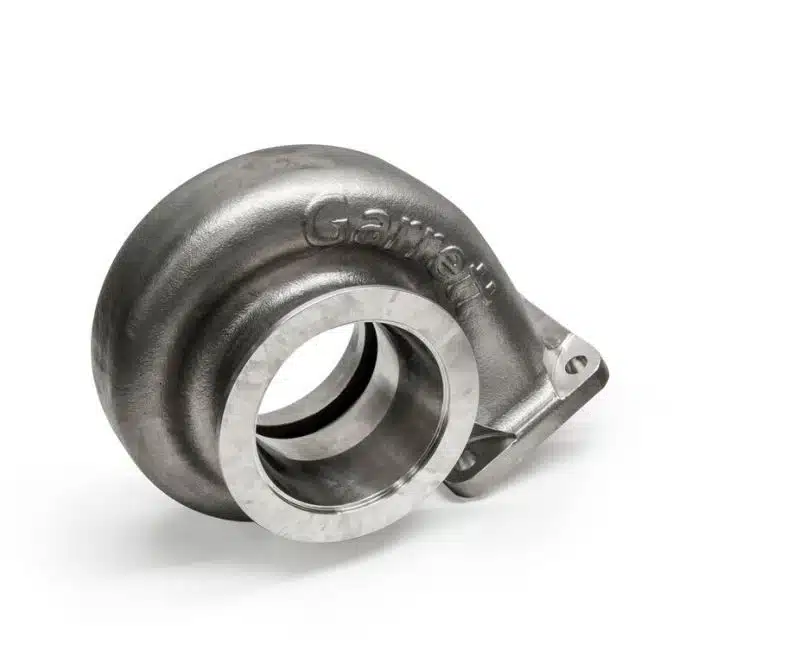

Garrett G40 Turbine Housing Kit, 0.85 A/R T4 Divided Inlet V-Band Outlet

Garrett’s G40 Turbine Housing Kit in 0.85 A/R pairs a divided T4 twin-scroll inlet with a V-band outlet, in stainless steel and with no internal wastegate. It is the smallest of four A/R sizes Garrett offers for the G40 frame and fits five super cores, from the G40-900 to the G-Series II G40-1250 and the G-XRace GXR40-64, all sized for 2.0L to 6.0L engines. On a twin-scroll manifold this housing gives the quickest boost the G40 can offer, which suits a smaller six or a four-cylinder. A big V8 aiming at 1250 horsepower will outgrow it.

Construction

The stainless housing surrounds a G-Series Inconel turbine wheel with a 77mm inducer, which Garrett says flows up to 43 lbs per minute. Its outlet V-band measures 117.4mm across, the same as GTX42, GTX45 and G42 housings, so many existing downpipe flanges carry over.

Features

Divided T4 inlet for twin-scroll manifolds, V-band outlet for the downpipe
Free-float layout for an external wastegate
Smallest of four A/R sizes in the G40 Turbine Housing Kit range

Specifications

Garrett part number: 757707-0032
A/R: 0.85
Turbine inlet and outlet: T4 divided and V-band
Divided inlet: Yes
Wastegate: External (free float)
Rotation: Standard
Material: Stainless steel
Matching turbine wheel: 77mm inducer and 70mm exducer
Outlet V-band: 117.4mm (4.622 in) OD, shared with GTX42, GTX45 and G42

Applications

Garrett lists this G40 Turbine Housing Kit for these standard-rotation cores:

Garrett G40-900: 860777-5003S super core
Garrett G40-1000 G-Series II: 938272-5001S super core, 938271-5001S CHRA
Garrett G40-1150: 860777-5002S super core
Garrett G40-1250 G-Series II: 938272-5002S super core, 938271-5002S CHRA
Garrett GXR40-64 G-XRace: 934173-5005S super core

Notes

An external wastegate is required, because this housing has no internal wastegate
The G40 super core is sold separately
Garrett sets the maximum turbocharger speed at 125,000 rpm for the G40 and G-Series II G40 cores and 109,000 rpm for the GXR40-64; running above it is at the owner’s risk
Garrett also offers 0.95, 1.06 and 1.19 A/R and V-band inlet versions
Garrett does not publish a hardware list for this kit; confirm clamps and gaskets before ordering

Frequently Asked Questions

Which cores fit the G40 Turbine Housing Kit? Garrett lists this 0.85 A/R G40 Turbine Housing Kit for the G40-900, G40-1150, G-Series II G40-1000 and G40-1250, and the G-XRace GXR40-64. All five use the same 77mm by 70mm turbine wheel, so the housing moves with the owner through any of those core choices.
Is the 0.85 A/R the fastest-spooling G40 housing? Yes. Of the 0.85, 0.95, 1.06 and 1.19 A/R G40 housings, the 0.85 has the smallest passage and drives the turbine wheel hardest at low exhaust flow. It suits engines toward 2.0L to 3.0L or builds that value response over peak power.
Will my GTX42 downpipe flange fit this housing? Garrett states that the outlet V-band of the G40 T4 turbine housing measures 117.4mm, or 4.622 inches, outside diameter, equal to the GTX42, GTX45 and G42 models. A downpipe built for one of those housings should therefore match this outlet.
Do I need an external wastegate? Yes. The housing is free float, with no internal wastegate port or actuator. Boost is held by an external wastegate mounted on the exhaust manifold ahead of the turbine, so the manifold needs a gate flange and the gate is bought separately.
Can I move from a G40-900 to a G-Series II core and keep this housing? Yes. Garrett states that G-Series II uses the Gen I compressor and turbine housings, so a G40-900 or G40-1150 owner can fit a G40-1000 or G40-1250 CHRA and keep this housing. A calibration is needed to use the extra compressor flow.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
