What comes with the G40-900 Super Core?

Garrett supplies the G40-900 Super Core as the center housing rotating assembly with the 62mm compressor housing fitted, and lists water fittings as included with the super core. The turbine housing and speed sensor kit are separate, so choose the A/R and inlet style before ordering.

How much power does the G40-900 support?

Garrett rates it at 500 to 900 horsepower on 2.0L to 6.0L engines, based on the choke flow of the compressor map. That makes it a potential flywheel figure; fuel, boost, intercooling and the calibration decide the result, and a large engine will reach the top of the range more easily than a small one.

Which G40 turbine housing should I choose?

Garrett offers 0.85, 0.95, 1.06 and 1.19 A/R, each with a V-band inlet or a divided T4 inlet for twin-scroll manifolds. Smaller A/R values bring boost in sooner and larger ones favor top-end flow; on a 62mm compressor the smaller two sizes keep the response this core is chosen for.

G40-900 or G-Series II G40-1000?

The G40-1000 keeps the 62mm inducer, 88mm exducer, turbine and housings, and adds second-generation compressor aero that Garrett says flows up to 10 percent more at peak pressure ratio and turbo speed, rated to 1000 horsepower. The G40-900 remains a fit for builds that will stay under 900 horsepower.

What is the maximum turbocharger speed?

Garrett lists 125,000 rpm for the G40-900 and warns that running above it can cause damage and premature failure. The compressor housing has a fully machined speed sensor port; Garrett sells the sensor separately, and fitting it lets the tuner hold the turbocharger below the limit.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

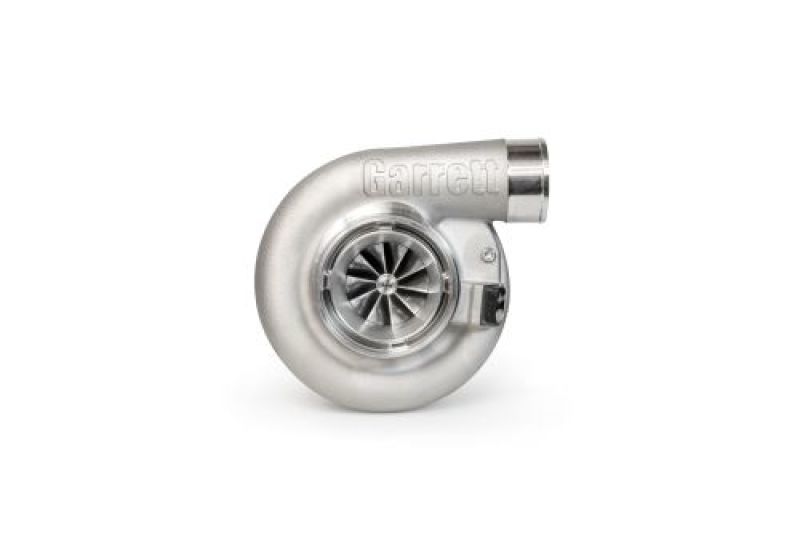

Garrett G40-900 Super Core, 62mm Standard Rotation

Garrett’s G40-900 Super Core is the 62mm entry to the first-generation G40 frame, rated by Garrett at 500 to 900 horsepower on 2.0L to 6.0L engines. It pairs a 51 trim compressor with the 77mm Inconel G40 turbine on a dual ceramic ball bearing with steel cages, and Garrett credits its compressor aero with up to 32 percent more flow than the GTX4088R. It suits a larger engine that wants a mid-frame turbine with a moderate compressor; a small engine chasing response should look at the G30 or G35 instead.

Swap Between Compressors

Garrett states that the 62mm G40-900 and 71mm G40-1150 are the same physical size, so one can replace the other without reconfiguring other turbo kit components. Both use the same stainless steel turbine housings in four A/R sizes with V-band or T4 divided inlets.

Features

62mm compressor inducer, 88mm exducer, 51 trim, 0.80 A/R compressor housing
Dual ceramic ball bearing with steel cages and a lightweight aluminum backplate
Inconel turbine wheel; G-Series turbine aero flows 16 percent more than the GTX4088R
Fully machined speed sensor and pressure ports; water fittings included

Specifications

Compressor inducer and exducer: 62mm and 88mm
Compressor trim and A/R: 51 trim, 0.80 A/R
Turbine inducer and exducer: 77mm and 70mm
Turbine trim: 84
Bearing system: Dual ceramic ball bearing with steel cages
Maximum turbocharger speed: 125,000 rpm
Rotation: Standard

What’s Included

G40-900 standard rotation super core with compressor housing fitted
Water fittings

Applications

The G40-900 Super Core is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 2.0L to 6.0L
Power range: 500 to 900 horsepower (Garrett rating)
Standard-rotation turbine kits: Free float in 0.85, 0.95, 1.06 and 1.19 A/R, with V-band or divided T4 inlet

Notes

The turbine housing is not included; Garrett lists G40 turbine housing kits for standard rotation
Every turbine housing Garrett lists for this core is free float, so an external wastegate is required
The Garrett speed sensor kit is sold separately
Garrett states that running above 125,000 rpm is at the owner’s risk and can cause premature failure

Frequently Asked Questions

What comes with the G40-900 Super Core? Garrett supplies the G40-900 Super Core as the center housing rotating assembly with the 62mm compressor housing fitted, and lists water fittings as included with the super core. The turbine housing and speed sensor kit are separate, so choose the A/R and inlet style before ordering.
How much power does the G40-900 support? Garrett rates it at 500 to 900 horsepower on 2.0L to 6.0L engines, based on the choke flow of the compressor map. That makes it a potential flywheel figure; fuel, boost, intercooling and the calibration decide the result, and a large engine will reach the top of the range more easily than a small one.
Which G40 turbine housing should I choose? Garrett offers 0.85, 0.95, 1.06 and 1.19 A/R, each with a V-band inlet or a divided T4 inlet for twin-scroll manifolds. Smaller A/R values bring boost in sooner and larger ones favor top-end flow; on a 62mm compressor the smaller two sizes keep the response this core is chosen for.
G40-900 or G-Series II G40-1000? The G40-1000 keeps the 62mm inducer, 88mm exducer, turbine and housings, and adds second-generation compressor aero that Garrett says flows up to 10 percent more at peak pressure ratio and turbo speed, rated to 1000 horsepower. The G40-900 remains a fit for builds that will stay under 900 horsepower.
What is the maximum turbocharger speed? Garrett lists 125,000 rpm for the G40-900 and warns that running above it can cause damage and premature failure. The compressor housing has a fully machined speed sensor port; Garrett sells the sensor separately, and fitting it lets the tuner hold the turbocharger below the limit.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
