Is the G40-1250 G-Series II Super Core a direct swap for a G40-1150?

Yes. Garrett describes G-Series II as a direct upgrade path for first-generation owners, and the G40-1250 G-Series II Super Core shares the 71mm inducer, turbine and housings with the G40-1150. The turbine housing stays, and Garrett states that a calibration is required to make use of the extra flow.

How much power can the G40-1250 make?

Garrett rates it at 500 to 1250 horsepower for engines from 2.0L to 6.0L. That number comes from the choke flow of the compressor map and represents potential flywheel horsepower, so the top of the range assumes an engine, fuel system and calibration built to use every bit of it.

Can I buy just the CHRA?

Yes. Garrett lists the G40-1250 CHRA as part 938271-5002S, which leaves out the compressor housing. Because the G-Series II compressor housing keeps the first-generation contour, a G40 owner can reuse the existing cover with the CHRA. This super core includes the compressor housing, which suits a new build.

What housings does it take?

Any of the eight G40 free-float turbine kits Garrett lists: V-band inlet or divided T4 inlet, each in 0.85, 0.95, 1.06 and 1.19 A/R. They are stainless steel, rated by Garrett to 1050 degrees Celsius, and none has an internal wastegate, so an external gate is required.

What is the speed limit of the G40-1250?

Garrett publishes a maximum allowable speed of 125,000 rpm, the same as the rest of the G40 range, and states that running above it is at the risk of the owner. Speed sensor kits are sold separately and fit the compressor housing to monitor shaft speed during tuning.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

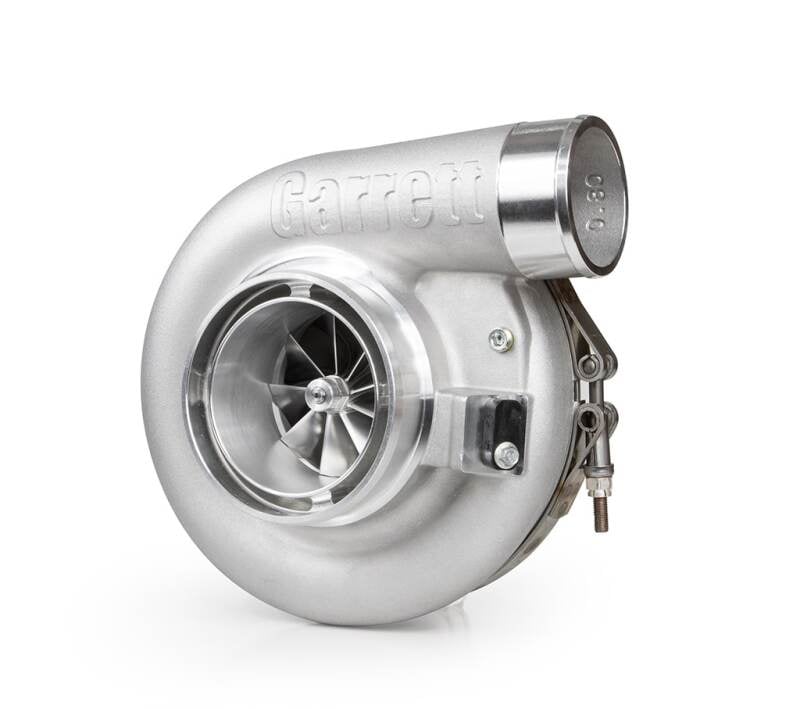

Garrett G40-1250 G-Series II Super Core, 71mm Compressor

Garrett’s G40-1250 G-Series II Super Core is the highest-rated G40 in the Garrett range, a 71mm second-generation compressor on the Inconel G40 turbine, rated at 500 to 1250 horsepower on 2.0L to 6.0L engines. Garrett credits the new compressor aero with up to 10 percent more flow than the first generation at peak pressure ratio and turbo speed, and it uses the same housings as the G40-1150. It is for a fully built engine with fuel and cooling for four-figure output; at 900 horsepower or below it is more compressor than the engine can put to work.

One-Piece Center Housing

The center housing and backplate are a single piece, which Garrett says reduces potential failure points, and twin piston rings sit on both sides of the shaft to limit oil passing the seals. The Inconel turbine wheel flows 15 to 20 percent more than GTX and peaks at 74 percent efficiency, by Garrett’s figures.

Features

71mm compressor inducer, 88mm exducer, 65 trim, 0.80 A/R compressor housing
Increased compressor efficiency at high flow rates
Uses first-generation G40 compressor and turbine housings
Water fittings included

Specifications

Compressor inducer and exducer: 71mm and 88mm
Compressor trim and A/R: 65 trim, 0.80 A/R
Turbine inducer and exducer: 77mm and 70mm
Turbine trim: 84
Maximum turbocharger speed: 125,000 rpm

What’s Included

G40-1250 G-Series II super core with compressor housing fitted
Water fittings

Applications

The G40-1250 G-Series II Super Core is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 2.0L to 6.0L
Power range: 500 to 1250 horsepower (Garrett rating)
Garrett G40 turbine kits: Free float in 0.85, 0.95, 1.06 and 1.19 A/R, with V-band or divided T4 inlet

Notes

The turbine housing is not included; Garrett lists G40 turbine housing kits for this core
Every turbine housing Garrett lists for this core is free float, so an external wastegate is required
The Garrett speed sensor kit is sold separately
Garrett states that running above 125,000 rpm is at the owner’s risk and can cause premature failure
A calibration is required to turn the extra compressor flow into more power

Frequently Asked Questions

Is the G40-1250 G-Series II Super Core a direct swap for a G40-1150? Yes. Garrett describes G-Series II as a direct upgrade path for first-generation owners, and the G40-1250 G-Series II Super Core shares the 71mm inducer, turbine and housings with the G40-1150. The turbine housing stays, and Garrett states that a calibration is required to make use of the extra flow.
How much power can the G40-1250 make? Garrett rates it at 500 to 1250 horsepower for engines from 2.0L to 6.0L. That number comes from the choke flow of the compressor map and represents potential flywheel horsepower, so the top of the range assumes an engine, fuel system and calibration built to use every bit of it.
Can I buy just the CHRA? Yes. Garrett lists the G40-1250 CHRA as part 938271-5002S, which leaves out the compressor housing. Because the G-Series II compressor housing keeps the first-generation contour, a G40 owner can reuse the existing cover with the CHRA. This super core includes the compressor housing, which suits a new build.
What housings does it take? Any of the eight G40 free-float turbine kits Garrett lists: V-band inlet or divided T4 inlet, each in 0.85, 0.95, 1.06 and 1.19 A/R. They are stainless steel, rated by Garrett to 1050 degrees Celsius, and none has an internal wastegate, so an external gate is required.
What is the speed limit of the G40-1250? Garrett publishes a maximum allowable speed of 125,000 rpm, the same as the rest of the G40 range, and states that running above it is at the risk of the owner. Speed sensor kits are sold separately and fit the compressor housing to monitor shaft speed during tuning.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
