Does the G40-1000 G-Series II CHRA include a compressor housing?

No. The CHRA is the center housing rotating assembly with the shaft, both wheels and the bearing system, but no compressor or turbine housing. Garrett sells the G40-1000 with its compressor housing as a super core. Owners of a first-generation G40 can reuse their own compressor cover.

What power will the G40-1000 support?

Garrett rates the G40-1000 G-Series II CHRA at 500 to 1,000 horsepower on 2.0L to 6.0L engines. Garrett calculates the number from compressor choke flow and presents it as potential flywheel horsepower, so the result depends on fuel, boost, the turbine housing A/R and the calibration.

Should I pick the G40-1000 or the G40-1250?

Both use the same 77mm G40 turbine. The G40-1000 has a 62mm compressor inducer and a 1,000 horsepower rating, which keeps the compressor efficient on engines that run moderate boost. The G40-1250 moves to a 71mm inducer and a 1,250 horsepower rating for engines that need much more airflow.

Which G40 turbine housing fits this core?

Garrett lists eight G40 turbine kits: 0.85, 0.95, 1.06 and 1.19 A/R, each with a V-band inlet or a divided T4 inlet and a V-band outlet. All of them are free float housings, so boost is controlled by an external wastegate on the manifold.

Is a tune needed after fitting this core?

Yes. Garrett states that a calibration is required to take advantage of the increased compressor flow. The tuner should also keep the shaft below the 125,000 rpm limit Garrett sets for this frame, and a speed sensor in the compressor housing, sold separately, is the reliable way to do it.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

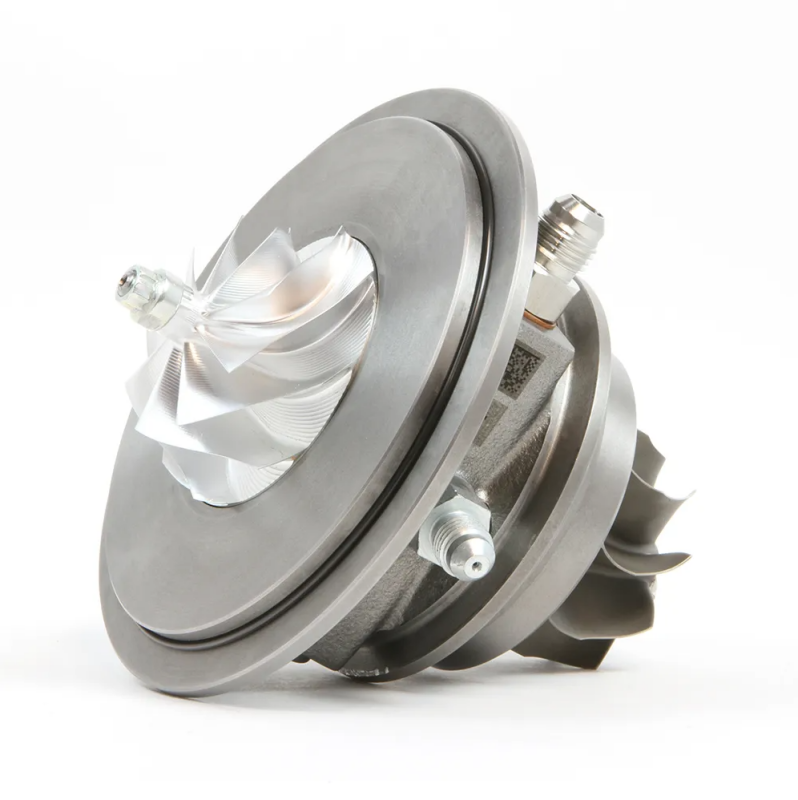

Garrett G40-1000 G-Series II CHRA, 62mm Compressor

Garrett’s G40-1000 G-Series II CHRA brings the large-frame 77mm G40 turbine together with a 62mm compressor inducer, sold as the bare center housing rotating assembly. Garrett rates it at 500 to 1,000 horsepower on engines from 2.0L to 6.0L. The relatively small compressor on a big turbine is the point of this core: it suits a V8 or a large six that needs exhaust flow at 1,000 horsepower but wants the compressor to stay efficient at lower boost. Builders who need more airflow from the same frame should look at the 71mm G40-1250.

Large Frame G-Series II

Garrett states the G-Series II compressor aerodynamics give up to 10 percent more flow than Gen I at peak pressure ratio and turbo speed. The one-piece center housing and backplate reduce failure points, the twin piston rings on each side of the shaft reduce the chance of oil leakage, and the V-band joint between center housing and turbine housing allows 360 degree orientation.

Features

77mm inducer, 70mm exducer turbine wheel with a trim of 84
62mm compressor inducer on an 88mm exducer, trim 51
Reuses Gen I G40 compressor and turbine housings

Specifications

Compressor inducer and exducer: 62mm and 88mm
Compressor trim: 51
Turbine inducer and exducer: 77mm and 70mm
Turbine trim: 84
Maximum turbocharger speed: 125,000 rpm
Matching super core: 938272-5001S

Applications

The G40-1000 G-Series II CHRA is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 2.0L to 6.0L
Power range: 500 to 1,000 horsepower (Garrett rating)
Garrett G40 turbine kits: 0.85, 0.95, 1.06 and 1.19 A/R free float housings with V-band inlets or divided T4 inlets, all with V-band outlets

Notes

Compressor and turbine housings are not included; the G40-1000 super core includes its compressor housing
Every G40 turbine kit Garrett lists is a free float design, so an external wastegate is required
Garrett states that running above 125,000 rpm is at the owner’s risk and can cause premature failure
The Garrett speed sensor kit is sold separately

Frequently Asked Questions

Does the G40-1000 G-Series II CHRA include a compressor housing? No. The CHRA is the center housing rotating assembly with the shaft, both wheels and the bearing system, but no compressor or turbine housing. Garrett sells the G40-1000 with its compressor housing as a super core. Owners of a first-generation G40 can reuse their own compressor cover.
What power will the G40-1000 support? Garrett rates the G40-1000 G-Series II CHRA at 500 to 1,000 horsepower on 2.0L to 6.0L engines. Garrett calculates the number from compressor choke flow and presents it as potential flywheel horsepower, so the result depends on fuel, boost, the turbine housing A/R and the calibration.
Should I pick the G40-1000 or the G40-1250? Both use the same 77mm G40 turbine. The G40-1000 has a 62mm compressor inducer and a 1,000 horsepower rating, which keeps the compressor efficient on engines that run moderate boost. The G40-1250 moves to a 71mm inducer and a 1,250 horsepower rating for engines that need much more airflow.
Which G40 turbine housing fits this core? Garrett lists eight G40 turbine kits: 0.85, 0.95, 1.06 and 1.19 A/R, each with a V-band inlet or a divided T4 inlet and a V-band outlet. All of them are free float housings, so boost is controlled by an external wastegate on the manifold.
Is a tune needed after fitting this core? Yes. Garrett states that a calibration is required to take advantage of the increased compressor flow. The tuner should also keep the shaft below the 125,000 rpm limit Garrett sets for this frame, and a speed sensor in the compressor housing, sold separately, is the reliable way to do it.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
