Which G38 Turbine Housing Kit A/R suits a mid-size engine?

Usually the 0.95. Garrett offers the G38 Turbine Housing Kit in 0.85, 0.95 and 1.06 A/R, and the middle size gives a single-scroll engine in the middle of the 2.0L to 5.5L range a sensible balance of boost onset and top-end flow. Check the choice against the Garrett flow maps.

Will the housing work with the hose outlet GXR38-64?

Yes. The compressor outlet style does not affect the turbine side. Garrett lists this housing for the GXR38-64 in both the V-band compressor outlet version, 934173-5008S, and the hose outlet version, 934173-5009S, as well as for the G-Series II G38-1000, part 938272-5003S.

Does it come with the turbine wheel?

No. The turbine wheel, shaft and bearings are part of the super core, sold separately. This kit is the outer turbine housing that bolts around that wheel. For G38 cores the wheel has a 74mm inducer and a 66mm exducer, which this housing is machined to suit.

Is there a T4 version of this housing?

Yes. Garrett makes each G38 A/R with either a V-band inlet or a divided T4 inlet. This listing is the V-band inlet at 0.95 A/R, intended for single-entry manifolds. A twin-scroll manifold with a T4 flange should use the divided T4 version of the same size.

What limits should I respect when tuning?

Garrett publishes a maximum turbocharger speed of 125,000 rpm for both G38 cores and warns that exceeding it can cause damage and early failure. A speed sensor in the compressor housing port lets the tuner log shaft speed. Garrett power ratings come from compressor choke flow and show potential flywheel horsepower.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

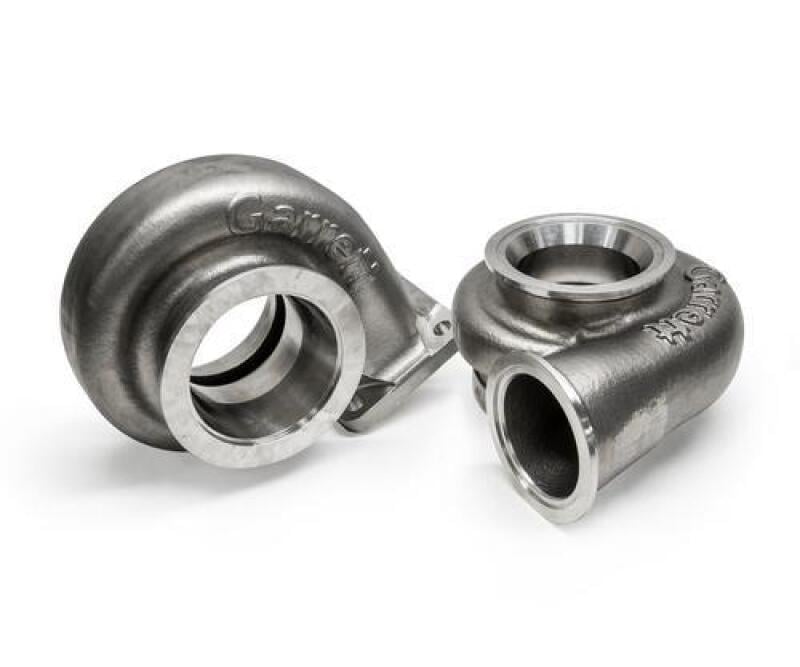

Garrett G38 Turbine Housing Kit, 0.95 A/R V-Band Inlet and Outlet

Garrett’s G38 Turbine Housing Kit in the 0.95 A/R V-band version gives a single-scroll G38 build its exhaust side: stainless steel, clamped V-band joints at the inlet and outlet, and no internal wastegate. It fits the G38-1000 G-Series II and the GXR38-64 G-XRace super cores, which Garrett sizes for 2.0L to 5.5L engines. This middle A/R is where most single-scroll G38 setups should start, trading a small amount of low-rpm response against the 0.85 for steadier flow at the top. A builder on a twin-scroll manifold should look at the T4 version instead.

Features

Clamped V-band inlet and outlet, clockable during mock-up
External wastegate layout with no flapper or actuator in the housing
Mid-size 0.95 A/R in the G38 Turbine Housing Kit lineup
Stainless steel casting, as on every Garrett G38 housing

Specifications

Garrett part number: 757707-0038
A/R: 0.95
Turbine inlet and outlet: V-band and V-band
Divided inlet: No
Wastegate: External (free float)
Material: Stainless steel
Matching turbine wheel: 74mm inducer and 66mm exducer

Applications

This G38 Turbine Housing Kit fits the super cores Garrett lists below:

Garrett G38-1000 G-Series II: 938272-5003S super core
Garrett GXR38-64 G-XRace: 934173-5008S super core with V-band compressor outlet, 934173-5009S with hose outlet

Notes

An external wastegate is required, because this housing has no internal wastegate
The G38-1000 or GXR38-64 super core is sold separately
Garrett sets the maximum turbocharger speed of both listed cores at 125,000 rpm and states that running above it is at the owner’s risk
Other A/R sizes and T4 inlet versions are under G38 turbine housings
Garrett does not publish a hardware list for this kit; confirm clamps and gaskets before ordering

Frequently Asked Questions

Which G38 Turbine Housing Kit A/R suits a mid-size engine? Usually the 0.95. Garrett offers the G38 Turbine Housing Kit in 0.85, 0.95 and 1.06 A/R, and the middle size gives a single-scroll engine in the middle of the 2.0L to 5.5L range a sensible balance of boost onset and top-end flow. Check the choice against the Garrett flow maps.
Will the housing work with the hose outlet GXR38-64? Yes. The compressor outlet style does not affect the turbine side. Garrett lists this housing for the GXR38-64 in both the V-band compressor outlet version, 934173-5008S, and the hose outlet version, 934173-5009S, as well as for the G-Series II G38-1000, part 938272-5003S.
Does it come with the turbine wheel? No. The turbine wheel, shaft and bearings are part of the super core, sold separately. This kit is the outer turbine housing that bolts around that wheel. For G38 cores the wheel has a 74mm inducer and a 66mm exducer, which this housing is machined to suit.
Is there a T4 version of this housing? Yes. Garrett makes each G38 A/R with either a V-band inlet or a divided T4 inlet. This listing is the V-band inlet at 0.95 A/R, intended for single-entry manifolds. A twin-scroll manifold with a T4 flange should use the divided T4 version of the same size.
What limits should I respect when tuning? Garrett publishes a maximum turbocharger speed of 125,000 rpm for both G38 cores and warns that exceeding it can cause damage and early failure. A speed sensor in the compressor housing port lets the tuner log shaft speed. Garrett power ratings come from compressor choke flow and show potential flywheel horsepower.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
