Is the 1.01 A/R G35 Wastegate Turbine Housing suited to a V8?

Yes, for a large single-turbo V8 running a G35-1050 or G35-990 toward its rating. The 1.01 A/R G35 Wastegate Turbine Housing keeps back pressure down at high flow while keeping boost control on the turbocharger. Engines under about 4.0L usually respond better with the 0.83 A/R version.

Which assembled Garrett turbochargers use this layout?

Garrett builds 1.01 A/R internally gated G35 turbochargers as part numbers 880707-5003S on the G35-900, 880707-5006S on the G35-1050 and 934124-5002S on the G-Series II G35-990, all assembled and calibrated with a 0.5 bar actuator. This housing kit suits owners building their own from a super core.

Will an internal wastegate cope with G35-1050 power?

Garrett states that its internally gated G-Series housings use the largest possible wastegate port, designed to reduce boost creep and give better boost control. At the top of the G35-1050 range, the boost target, actuator spring and exhaust flow all affect the result, so careful setup still matters.

Does it work with a reverse rotation G35?

No. Garrett offers this housing for standard-rotation G35 cores only, and there is no internally gated reverse G35 housing. Reverse-rotation G35 cores run free-float housings with external wastegates, which Garrett lists from 0.61 to 1.21 A/R with T3 or V-band inlets.

What is included with the housing?

Garrett does not list the contents of its turbine kits, including whether a wastegate actuator is supplied. The 0.5 bar actuator note on the Garrett pages applies to the assembled turbocharger part numbers. Contact Bulletproof Automotive before ordering and we will confirm what ships.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

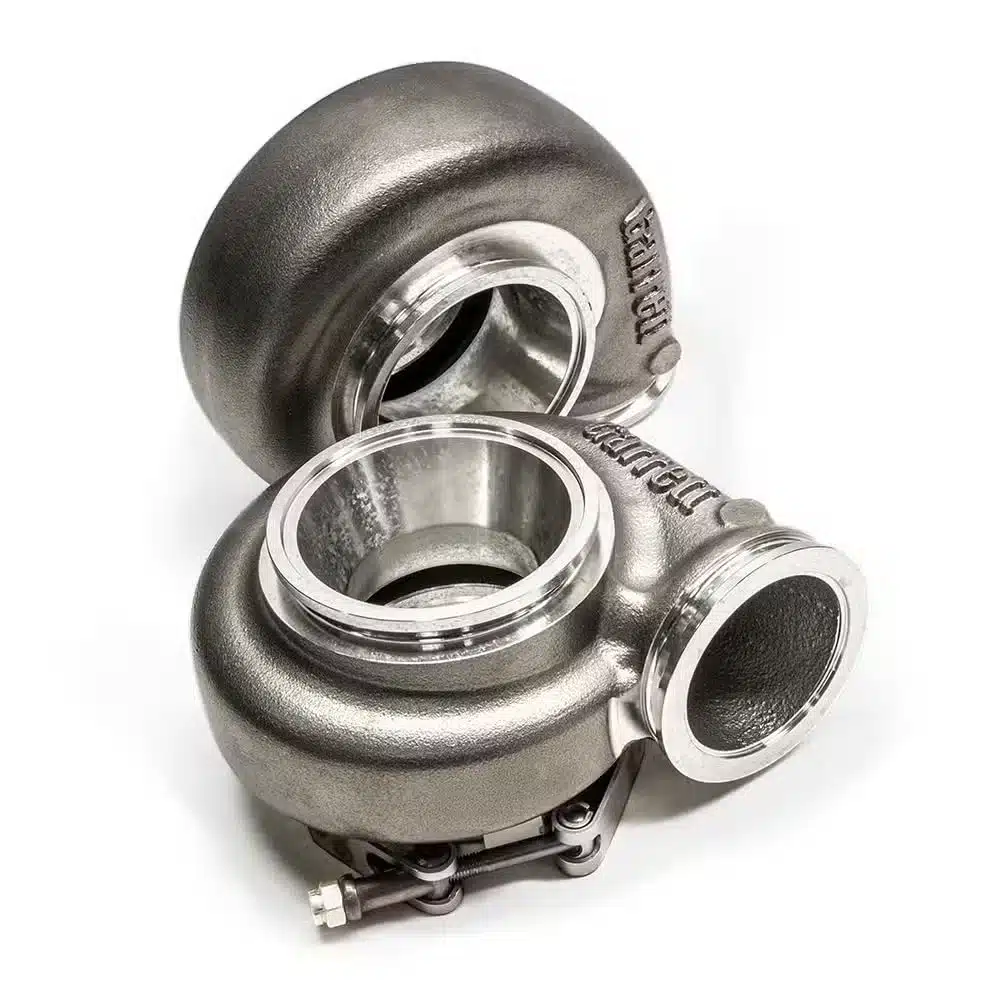

Garrett G35 Wastegate Turbine Housing, 1.01 A/R V-Band

Garrett’s G35 Wastegate Turbine Housing at 1.01 A/R is the high-flow internally gated housing for standard-rotation G35 cores, cast in stainless steel with V-band connections at the inlet and outlet. Garrett lists part 740902-0111 for the G35-900, the G35-1050 and the G-Series II G35-990, the layout used on its assembled 1.01 A/R G35 turbochargers. It is the internally gated choice for a large single-turbo engine, a 4.5L to 5.5L V8 for example, pushing a G35-1050 toward its rating. A smaller engine wanting response belongs on the 0.83 A/R.

Large Single-Turbo Engines

At the power a G35-1050 can support, exhaust back pressure and boost creep both need attention. The 1.01 A/R volute eases back pressure, and Garrett’s maximum-size internal wastegate port gives the exhaust a large path around the turbine when boost is at target. The stainless housing carries Garrett’s 1050C (1922F) rating.

Features

1.01 A/R for high exhaust flow
Built-in wastegate port sized by Garrett to limit boost creep
V-band connections at both ends
Shared by G35 and G-Series II G35 cores

Specifications

Garrett part number: 740902-0111
A/R: 1.01
Turbine inlet and outlet: V-band and V-band
Wastegate: Internal
Rotation: Standard
Material: Stainless steel, rated to 1050C (1922F)

Applications

Garrett lists this G35 Wastegate Turbine Housing for these standard-rotation super cores:

Garrett G35-900: 880695-5001S
Garrett G35-990 G-Series II: 934123-5001S
Garrett G35-1050: 880695-5002S

Notes

Garrett does not publish the contents of this turbine kit or whether an actuator is supplied; contact us to confirm before ordering
The turbocharger core is not included; see the G35 range
Standard rotation only; reverse-rotation G35 cores use free-float housings
For earlier boost, Garrett lists the 0.83 A/R internally gated G35 housing as part 740902-0110

Frequently Asked Questions

Is the 1.01 A/R G35 Wastegate Turbine Housing suited to a V8? Yes, for a large single-turbo V8 running a G35-1050 or G35-990 toward its rating. The 1.01 A/R G35 Wastegate Turbine Housing keeps back pressure down at high flow while keeping boost control on the turbocharger. Engines under about 4.0L usually respond better with the 0.83 A/R version.
Which assembled Garrett turbochargers use this layout? Garrett builds 1.01 A/R internally gated G35 turbochargers as part numbers 880707-5003S on the G35-900, 880707-5006S on the G35-1050 and 934124-5002S on the G-Series II G35-990, all assembled and calibrated with a 0.5 bar actuator. This housing kit suits owners building their own from a super core.
Will an internal wastegate cope with G35-1050 power? Garrett states that its internally gated G-Series housings use the largest possible wastegate port, designed to reduce boost creep and give better boost control. At the top of the G35-1050 range, the boost target, actuator spring and exhaust flow all affect the result, so careful setup still matters.
Does it work with a reverse rotation G35? No. Garrett offers this housing for standard-rotation G35 cores only, and there is no internally gated reverse G35 housing. Reverse-rotation G35 cores run free-float housings with external wastegates, which Garrett lists from 0.61 to 1.21 A/R with T3 or V-band inlets.
What is included with the housing? Garrett does not list the contents of its turbine kits, including whether a wastegate actuator is supplied. The 0.5 bar actuator note on the Garrett pages applies to the assembled turbocharger part numbers. Contact Bulletproof Automotive before ordering and we will confirm what ships.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
