Which cores fit the G35 Wastegate Turbine Housing?

Garrett lists three standard-rotation super cores for it: the G35-900, the G35-1050 and the G-Series II G35-990. The same layout appears on its assembled 0.83 A/R G35 turbochargers, part numbers 880707-5002S, 880707-5005S and 934124-5001S, so the G35 Wastegate Turbine Housing matches what Garrett itself builds.

Why choose an internal wastegate on a turbocharger this size?

It keeps the installation simpler. With the wastegate in the housing, the manifold needs no external gate flange or separate dump pipe, which helps in a crowded engine bay. Garrett sized the port as large as possible to keep boost creep under control at the high exhaust flow a G35 handles.

Will 0.83 A/R spool a G35 on my engine?

On engines of roughly 3.0L to 4.5L, it is a sensible balance. The G35 turbine wheel is large, so smaller engines will notice later boost onset, and very large engines chasing the G35-1050 rating usually prefer the 1.01 A/R internally gated housing, part 740902-0111.

Can I use it on a reverse rotation G35?

No. Garrett lists this housing for standard-rotation G35 cores only and offers no internally gated reverse G35 housing. A twin-turbo G35 build with one reverse unit must use free-float housings and external wastegates on both banks, which also keeps the two sides matched.

Is a speed sensor needed?

Garrett suggests one to guard against overspeed. The limit comes from the core: 145,000 rpm for the G35-900, 140,000 rpm for the G35-990 and 130,000 rpm for the G35-1050. A sensor installs in the compressor housing and is sold separately.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

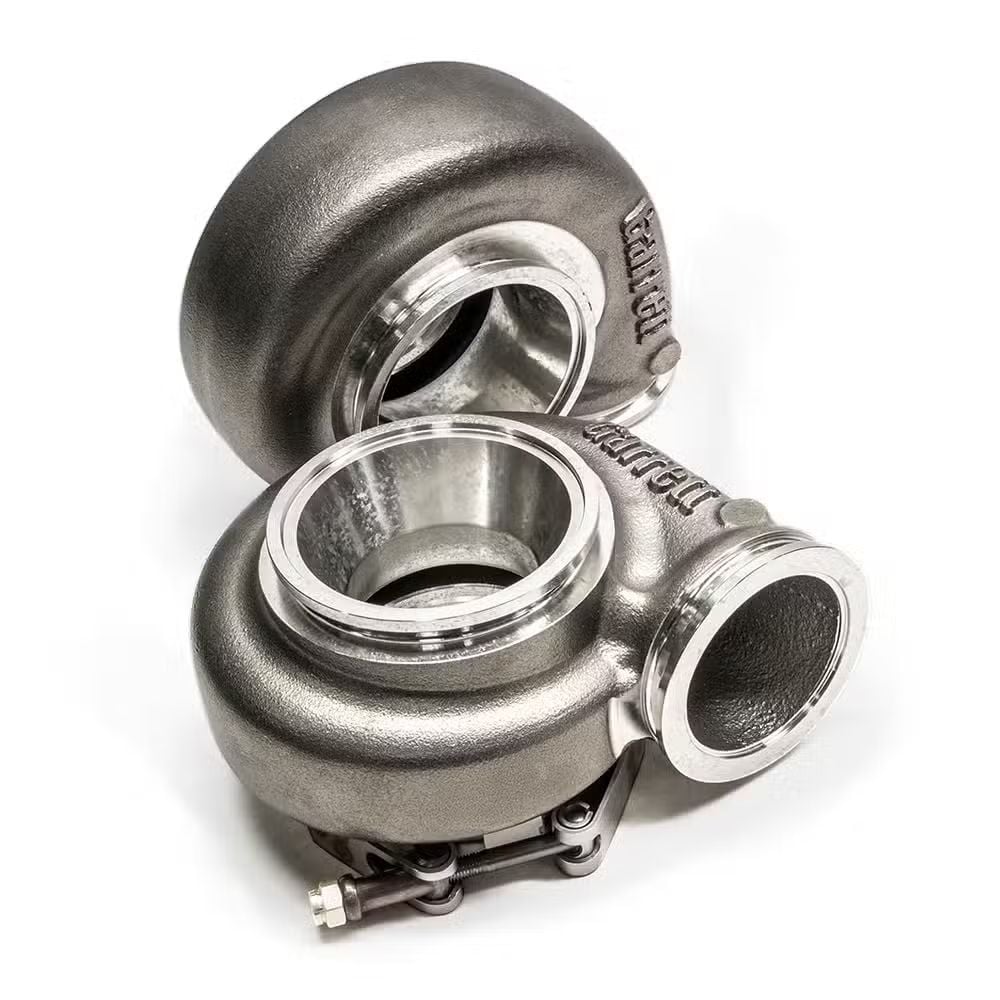

Garrett G35 Wastegate Turbine Housing, 0.83 A/R V-Band

Garrett’s G35 Wastegate Turbine Housing in 0.83 A/R gives a standard-rotation G35 its own boost control, an internally gated stainless housing with V-band inlet and outlet. Garrett lists part 740902-0110 for the G35-900, G35-1050 and G-Series II G35-990, and uses the same layout on its assembled 0.83 A/R G35 turbochargers. It suits a single-turbo build of roughly 3.0L to 4.5L that wants G35 power without plumbing an external wastegate. On a twin-turbo engine it is not an option, because Garrett offers no internally gated reverse G35 housing.

Big Frame, Simple Plumbing

An internal wastegate removes the external gate, its flange and its dump pipe from the manifold design, which simplifies a single G35 installation. Garrett designs these housings with the largest possible wastegate port to reduce boost creep. The G35 turbine wheel inside, 68mm by 62mm in Mar-M alloy, shares the 1050C (1922F) rating of the stainless housing.

Features

Internal wastegate, no external gate needed
V-band inlet and outlet
0.83 A/R, the responsive internally gated G35 size

Specifications

Garrett part number: 740902-0110
A/R: 0.83
Turbine inlet and outlet: V-band and V-band
Wastegate: Internal
Rotation: Standard
Material: Stainless steel, rated to 1050C (1922F)

Applications

Garrett lists this G35 Wastegate Turbine Housing for these standard-rotation super cores:

Garrett G35-900: 880695-5001S
Garrett G35-990 G-Series II: 934123-5001S
Garrett G35-1050: 880695-5002S

Notes

Garrett does not publish the contents of this turbine kit or whether an actuator is supplied; contact us to confirm before ordering
The G35 super core is sold separately
Standard rotation only; Garrett offers no internally gated G35 housing in reverse rotation
Garrett also lists a 1.01 A/R internally gated G35 housing, part 740902-0111

Frequently Asked Questions

Which cores fit the G35 Wastegate Turbine Housing? Garrett lists three standard-rotation super cores for it: the G35-900, the G35-1050 and the G-Series II G35-990. The same layout appears on its assembled 0.83 A/R G35 turbochargers, part numbers 880707-5002S, 880707-5005S and 934124-5001S, so the G35 Wastegate Turbine Housing matches what Garrett itself builds.
Why choose an internal wastegate on a turbocharger this size? It keeps the installation simpler. With the wastegate in the housing, the manifold needs no external gate flange or separate dump pipe, which helps in a crowded engine bay. Garrett sized the port as large as possible to keep boost creep under control at the high exhaust flow a G35 handles.
Will 0.83 A/R spool a G35 on my engine? On engines of roughly 3.0L to 4.5L, it is a sensible balance. The G35 turbine wheel is large, so smaller engines will notice later boost onset, and very large engines chasing the G35-1050 rating usually prefer the 1.01 A/R internally gated housing, part 740902-0111.
Can I use it on a reverse rotation G35? No. Garrett lists this housing for standard-rotation G35 cores only and offers no internally gated reverse G35 housing. A twin-turbo G35 build with one reverse unit must use free-float housings and external wastegates on both banks, which also keeps the two sides matched.
Is a speed sensor needed? Garrett suggests one to guard against overspeed. The limit comes from the core: 145,000 rpm for the G35-900, 140,000 rpm for the G35-990 and 130,000 rpm for the G35-1050. A sensor installs in the compressor housing and is sold separately.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
