Is the 1.01 A/R G35 Turbine Housing Kit right for a single turbo V8?

For many 4.5L to 5.5L V8 builds running one G35-1050 or G35-990, yes. The 1.01 A/R G35 Turbine Housing Kit keeps back pressure low at the power levels those engines reach, and they make enough exhaust to spool it. Smaller engines usually respond better with the 0.83 A/R.

What is the difference from the 1.01 A/R T3 G35 housing?

Only the inlet. This housing has a V-band inlet for fabricated manifolds with a clamp flange, while part 740902-0107 has a T3 inlet for bolted manifolds. Both share the A/R, the V-band outlet, the free-float layout and the list of G35 cores Garrett gives for them.

Would the internally wastegated 1.01 A/R housing suit me better?

It might if your manifold has no external gate. Garrett makes a 1.01 A/R V-band G35 housing with an internal wastegate, part 740902-0111, for standard-rotation cores. This free-float housing suits builds that already run, or prefer, an external wastegate on the manifold.

What does A/R actually describe?

A/R is the ratio between the cross-sectional area of the volute passage and the radius from the turbine centerline to the center of that area. A smaller ratio speeds exhaust onto the wheel for quicker spool, and a larger one, such as this 1.01, passes more flow with less back pressure at high rpm.

Is this standard or reverse rotation?

Standard rotation, listed by Garrett for standard G35 cores only. The reverse-rotation version with the same A/R and V-band layout is part 740902-0114, which pairs with this housing on a mirrored twin-turbo engine running two G35 cores. Each volute only suits its own direction of rotation.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

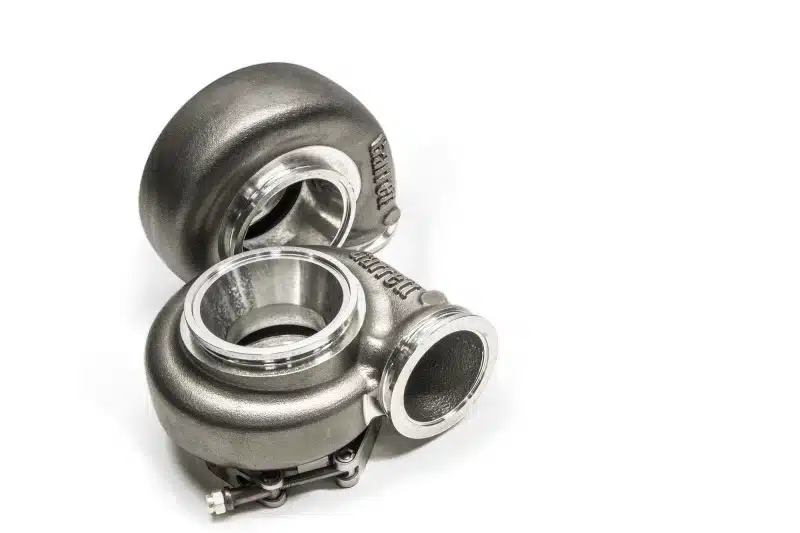

Garrett G35 Turbine Housing Kit, 1.01 A/R V-Band Free Float

Garrett’s G35 Turbine Housing Kit in 1.01 A/R V-band is a high-flow free-float housing for standard-rotation G35 cores, listed by Garrett as part 740902-0104 for the G35-900, G35-1050 and G-Series II G35-990. It is sized for engines that make a lot of exhaust: a 4.5L to 5.5L V8 on a single G35-1050 or G35-990, or a smaller engine built to rev hard, where lower back pressure lets the engine carry power to the redline. A 3.0L street build will find it slow to come on boost and is better served by the 0.83 A/R.

Carrying Power to the Redline

The 1.01 A/R gives exhaust more room on its way to the 68mm G35 turbine wheel, so pressure between the engine and the turbine stays lower at high load. That helps volumetric efficiency where large engines make their peak power. The V-band inlet suits fabricated manifolds, and an external wastegate holds boost.

Features

1.01 A/R for high exhaust flow
V-band inlet and outlet
Free float, clockable on the center housing joint
Stainless steel construction rated to 1050C (1922F)

Specifications

Garrett part number: 740902-0104
A/R: 1.01
Turbine inlet and outlet: V-band and V-band
Wastegate: External (free float)
Rotation: Standard
Material: Stainless steel, rated to 1050C (1922F)

Applications

Garrett lists this G35 Turbine Housing Kit for these standard-rotation super cores, rated from 550 to 1050 horsepower on 2.0L to 5.5L engines:

Garrett G35-900: 880695-5001S
Garrett G35-990 G-Series II: 934123-5001S
Garrett G35-1050: 880695-5002S

Notes

An external wastegate is required, because this free-float housing has no internal wastegate
The G35 super core is sold separately
Standard rotation; the reverse-rotation 1.01 A/R V-band housing is part 740902-0114
Garrett lists an internally gated 1.01 A/R V-band G35 housing as part 740902-0111

Frequently Asked Questions

Is the 1.01 A/R G35 Turbine Housing Kit right for a single turbo V8? For many 4.5L to 5.5L V8 builds running one G35-1050 or G35-990, yes. The 1.01 A/R G35 Turbine Housing Kit keeps back pressure low at the power levels those engines reach, and they make enough exhaust to spool it. Smaller engines usually respond better with the 0.83 A/R.
What is the difference from the 1.01 A/R T3 G35 housing? Only the inlet. This housing has a V-band inlet for fabricated manifolds with a clamp flange, while part 740902-0107 has a T3 inlet for bolted manifolds. Both share the A/R, the V-band outlet, the free-float layout and the list of G35 cores Garrett gives for them.
Would the internally wastegated 1.01 A/R housing suit me better? It might if your manifold has no external gate. Garrett makes a 1.01 A/R V-band G35 housing with an internal wastegate, part 740902-0111, for standard-rotation cores. This free-float housing suits builds that already run, or prefer, an external wastegate on the manifold.
What does A/R actually describe? A/R is the ratio between the cross-sectional area of the volute passage and the radius from the turbine centerline to the center of that area. A smaller ratio speeds exhaust onto the wheel for quicker spool, and a larger one, such as this 1.01, passes more flow with less back pressure at high rpm.
Is this standard or reverse rotation? Standard rotation, listed by Garrett for standard G35 cores only. The reverse-rotation version with the same A/R and V-band layout is part 740902-0114, which pairs with this housing on a mirrored twin-turbo engine running two G35 cores. Each volute only suits its own direction of rotation.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
