When is a 1.01 A/R reverse G35 Turbine Housing Kit the right choice?

When a large twin-turbo engine on T3 manifolds is built for very high output and each G35 needs top-end flow more than early boost. The 1.01 A/R reverse G35 Turbine Housing Kit mirrors part 740902-0107 on the standard bank. Smaller twin-turbo engines suit the 0.83 A/R reverse housing better.

Can a standard rotation G35 use this housing?

No. Its volute is shaped for a turbine wheel spinning in reverse, and Garrett lists it only for reverse-rotation G35 super cores. A standard G35 on a T3 manifold needs part 740902-0107, the same A/R and flange layout in standard rotation, which is also the housing to run on the opposite bank.

How is boost controlled on a twin G35 setup with these housings?

With external wastegates, because both the standard and the reverse T3 housings are free float with no wastegate port. Most twin-turbo manifolds carry a gate per bank. Size the gates for the boost target and the exhaust flow of the full engine.

Will my twin T3 manifolds clear two G35 turbochargers?

Garrett does not publish clearance data for twin installations. The G35 is a larger frame than the G30, so check space around both banks, the downpipe routes and the intake plumbing against the Garrett drawings and flange diagram before ordering. A T3 flange alone does not guarantee physical fit.

What is the difference between a G35 and a G30 housing?

Turbine wheel size. The G35 uses a 68mm inducer and 62mm exducer wheel, while the G30 uses 60mm and 55mm, so Garrett lists separate housings for each frame. This part fits reverse G35 cores only and will not fit a reverse G30.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

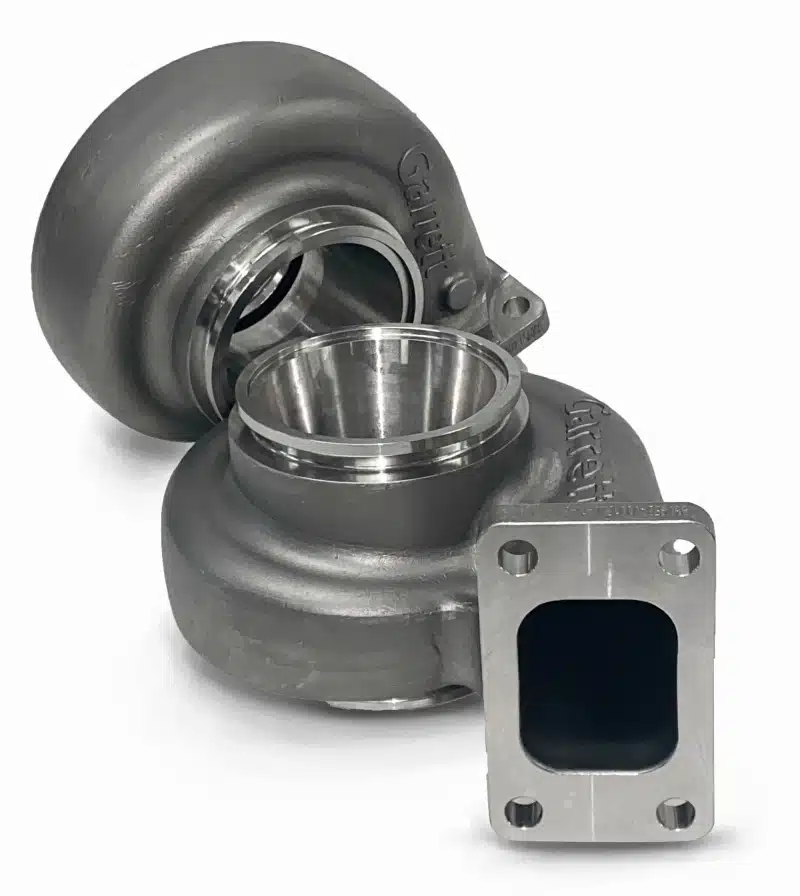

Garrett G35 Turbine Housing Kit, 1.01 A/R T3 Free Float Reverse Rotation

Garrett’s G35 Turbine Housing Kit for reverse rotation, 1.01 A/R with a T3 inlet, is the high-flow T3 housing for reverse-spinning G35 cores, free float with a V-band outlet. Garrett lists part 740902-0117 for the reverse G35-900 and G35-1050 and the G-Series II G35-990. Its natural home is the second bank of a big twin-turbo V8 on T3 manifolds, built for outputs where each G35 runs close to its rating, opposite standard part 740902-0107. For a twin setup that values early boost over outright flow, the 0.83 A/R reverse T3 housing is the better pick.

High Output Twins

With two G35 cores sharing the exhaust of a large engine, each can still spool a 1.01 A/R volute, and the larger passage keeps back pressure down at full load. The reverse volute mirrors the standard turbocharger on the other bank. External wastegates handle boost, and the stainless casting is rated by Garrett to 1050C (1922F).

Features

Reverse-rotation volute at 1.01 A/R
T3 inlet, V-band outlet
Free float for external wastegates

Specifications

Garrett part number: 740902-0117
A/R: 1.01
Turbine inlet and outlet: T3 and V-band
Wastegate: External (free float)
Rotation: Reverse
Material: Stainless steel, rated to 1050C (1922F)

Applications

Garrett lists this G35 Turbine Housing Kit for these reverse-rotation super cores:

Garrett G35-900 Reverse Rotation: 880696-5001S
Garrett G35-990 G-Series II Reverse Rotation: 934126-5001S
Garrett G35-1050 Reverse Rotation: 880696-5002S

Notes

An external wastegate is required, because this free-float housing has no internal wastegate
The reverse-rotation G35 super core is sold separately
Reverse rotation only; the standard-rotation 1.01 A/R T3 housing is part 740902-0107
Garrett also offers this reverse T3 housing in 0.83 A/R, part 740902-0116

Frequently Asked Questions

When is a 1.01 A/R reverse G35 Turbine Housing Kit the right choice? When a large twin-turbo engine on T3 manifolds is built for very high output and each G35 needs top-end flow more than early boost. The 1.01 A/R reverse G35 Turbine Housing Kit mirrors part 740902-0107 on the standard bank. Smaller twin-turbo engines suit the 0.83 A/R reverse housing better.
Can a standard rotation G35 use this housing? No. Its volute is shaped for a turbine wheel spinning in reverse, and Garrett lists it only for reverse-rotation G35 super cores. A standard G35 on a T3 manifold needs part 740902-0107, the same A/R and flange layout in standard rotation, which is also the housing to run on the opposite bank.
How is boost controlled on a twin G35 setup with these housings? With external wastegates, because both the standard and the reverse T3 housings are free float with no wastegate port. Most twin-turbo manifolds carry a gate per bank. Size the gates for the boost target and the exhaust flow of the full engine.
Will my twin T3 manifolds clear two G35 turbochargers? Garrett does not publish clearance data for twin installations. The G35 is a larger frame than the G30, so check space around both banks, the downpipe routes and the intake plumbing against the Garrett drawings and flange diagram before ordering. A T3 flange alone does not guarantee physical fit.
What is the difference between a G35 and a G30 housing? Turbine wheel size. The G35 uses a 68mm inducer and 62mm exducer wheel, while the G30 uses 60mm and 55mm, so Garrett lists separate housings for each frame. This part fits reverse G35 cores only and will not fit a reverse G30.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
