Is the 1.01 A/R G35 Turbine Housing Kit suited to a V8?

Often, yes. A 4.0L to 5.5L V8 running a single G35-1050 or G35-990 produces enough exhaust to spool a 1.01 A/R G35 Turbine Housing Kit, and the larger volute lowers back pressure where the engine makes its peak power. Smaller engines are usually better with the 0.83 A/R.

How does the T3 version compare with the 1.01 A/R V-band housing?

They share the A/R and the core list; the inlet differs. This housing bolts to a T3 manifold flange, while part 740902-0104 has a V-band inlet for fabricated manifolds built around a clamp joint. Both are free float with a V-band outlet and need an external wastegate.

What power can a G35 make with this housing?

Garrett rates its G35 cores, not the housing: 550 to 900 horsepower for the G35-900, 550 to 990 for the G35-990 and 700 to 1050 for the G35-1050. Those figures come from compressor choke flow and represent potential flywheel horsepower, so the engine, fuel and calibration decide the result.

Do I need to change the housing for a G-Series II upgrade?

No. Garrett states that G-Series II uses the same turbine housings as the first generation, and lists this part for the G35-990 G-Series II as well as the G35-900 and G35-1050. A Gen I owner can buy a G-Series II CHRA and keep this housing in place.

Does this T3 housing suit standard rotation cores?

Yes. Part 740902-0107 is the standard-rotation 1.01 A/R T3 housing, and Garrett lists it for standard G35 cores only. The reverse version for mirrored twin-turbo builds is part 740902-0117, which pairs with this housing on the opposite bank so both turbochargers see the same restriction.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

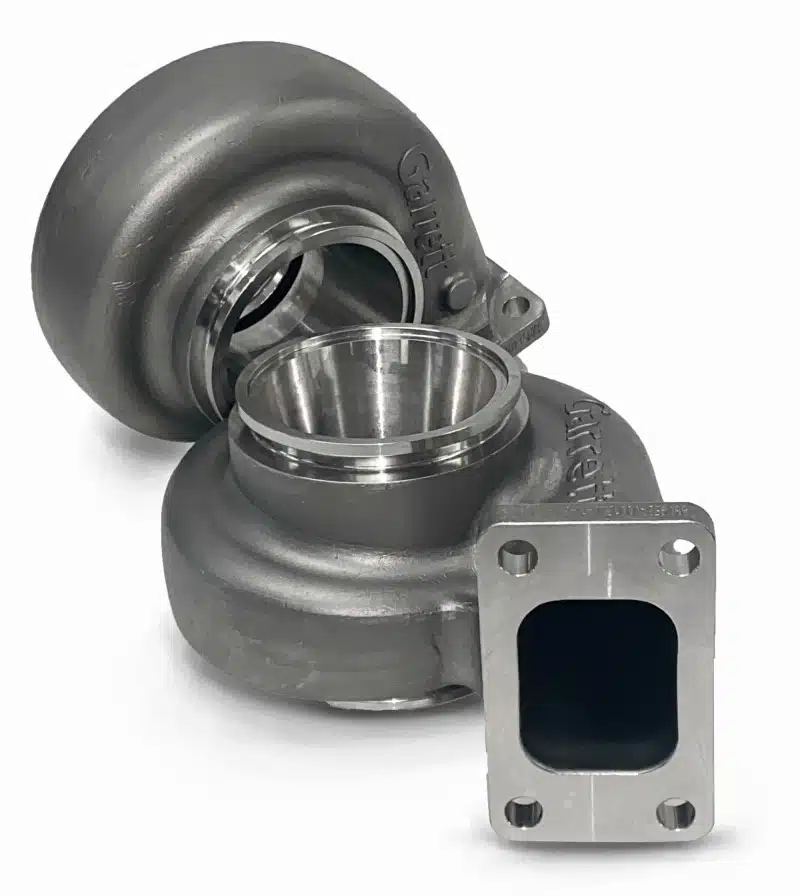

Garrett G35 Turbine Housing Kit, 1.01 A/R T3 Free Float

Garrett’s G35 Turbine Housing Kit at 1.01 A/R with a T3 inlet is the higher-flow T3 housing for standard-rotation G35 cores, free float with a V-band outlet. Garrett lists part 740902-0107 for the G35-900, the G35-1050 and the G-Series II G35-990. It is the T3 housing for a 4.0L to 5.5L engine, or a smaller engine that revs high, that wants a G35-1050 or G35-990 near the top of its rating. Smaller engines will struggle to spool the 68mm turbine wheel through this volute, and the 0.83 A/R T3 housing serves them better.

Big Engine, T3 Flange

The 1.01 A/R volute gives the G35 turbine wheel more room at high exhaust flow, keeping back pressure down as the engine approaches peak power. With a T3 inlet it bolts to a conventional manifold, and an external wastegate on that manifold controls boost. Garrett makes every G-Series turbine housing from stainless steel rated to 1050C (1922F).

Features

1.01 A/R for top-end flow
T3 inlet and V-band outlet
Free-float housing for external wastegate control

Specifications

Garrett part number: 740902-0107
A/R: 1.01
Turbine inlet and outlet: T3 and V-band
Wastegate: External (free float)
Rotation: Standard
Material: Stainless steel, rated to 1050C (1922F)

Applications

Garrett lists this G35 Turbine Housing Kit for these standard-rotation super cores, rated from 550 to 1050 horsepower on 2.0L to 5.5L engines:

Garrett G35-900: 880695-5001S
Garrett G35-990 G-Series II: 934123-5001S
Garrett G35-1050: 880695-5002S

Notes

An external wastegate is required, because this free-float housing has no internal wastegate
The G35 super core is sold separately
Standard rotation; the reverse-rotation 1.01 A/R T3 housing is part 740902-0117
For quicker response on a T3 manifold, Garrett lists the 0.83 A/R housing as part 740902-0106

Frequently Asked Questions

Is the 1.01 A/R G35 Turbine Housing Kit suited to a V8? Often, yes. A 4.0L to 5.5L V8 running a single G35-1050 or G35-990 produces enough exhaust to spool a 1.01 A/R G35 Turbine Housing Kit, and the larger volute lowers back pressure where the engine makes its peak power. Smaller engines are usually better with the 0.83 A/R.
How does the T3 version compare with the 1.01 A/R V-band housing? They share the A/R and the core list; the inlet differs. This housing bolts to a T3 manifold flange, while part 740902-0104 has a V-band inlet for fabricated manifolds built around a clamp joint. Both are free float with a V-band outlet and need an external wastegate.
What power can a G35 make with this housing? Garrett rates its G35 cores, not the housing: 550 to 900 horsepower for the G35-900, 550 to 990 for the G35-990 and 700 to 1050 for the G35-1050. Those figures come from compressor choke flow and represent potential flywheel horsepower, so the engine, fuel and calibration decide the result.
Do I need to change the housing for a G-Series II upgrade? No. Garrett states that G-Series II uses the same turbine housings as the first generation, and lists this part for the G35-990 G-Series II as well as the G35-900 and G35-1050. A Gen I owner can buy a G-Series II CHRA and keep this housing in place.
Does this T3 housing suit standard rotation cores? Yes. Part 740902-0107 is the standard-rotation 1.01 A/R T3 housing, and Garrett lists it for standard G35 cores only. The reverse version for mirrored twin-turbo builds is part 740902-0117, which pairs with this housing on the opposite bank so both turbochargers see the same restriction.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
