Will the G35 Turbine Housing Kit fit the T3 manifold from my old turbo?

Yes, if the manifold has a standard T3 turbine flange and room for the larger G35 frame. This G35 Turbine Housing Kit uses a T3 inlet and a V-band outlet, so the downpipe will need a V-band flange. Check clearances and the Garrett flange diagram before ordering.

Is 0.83 A/R a good match for the G35-1050?

It can be on a mid-size engine that needs response, but the G35-1050 is rated from 700 to 1050 horsepower, and reaching the top of that range usually calls for more turbine flow. For a large engine targeting the full rating, the 1.01 A/R T3 housing is the better match.

Does a T3 housing need an external wastegate?

This one does. It is a free-float housing with no wastegate port, so boost has to be controlled by a gate on the exhaust manifold. Most T3 manifolds built for external wastegates already have the flange. Garrett also lists internally gated G35 housings, but only with V-band inlets.

Why pick a T3 inlet rather than a V-band inlet?

Pick T3 when the manifold already has a T3 flange, since this housing then bolts straight on. A V-band inlet suits fabricated manifolds built around a clamp joint and allows easier clocking. Garrett lists the same G35 cores for both, and the T3 version keeps the V-band outlet.

Is there a reverse rotation version?

Yes. Garrett lists the reverse-rotation 0.83 A/R T3 G35 housing as part 740902-0116. This part, 740902-0106, is the standard-rotation version, and each one only suits a core of matching rotation because the volute spirals in a fixed direction. Twin-turbo builds normally use one of each.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

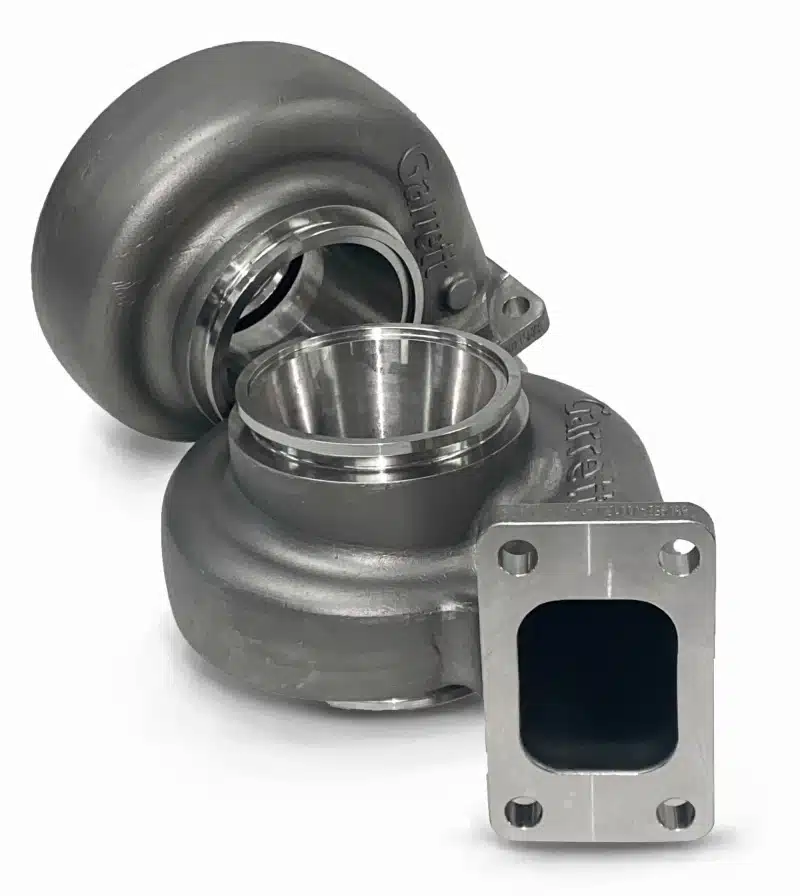

Garrett G35 Turbine Housing Kit, 0.83 A/R T3 Free Float

Garrett’s G35 Turbine Housing Kit in 0.83 A/R with a T3 inlet mounts a standard-rotation G35 on a T3 manifold, exiting through a V-band outlet with boost controlled by an external wastegate. Garrett lists part 740902-0106 for the G35-900, G35-1050 and G-Series II G35-990. The T3 flange lets an owner moving up from a smaller T3 turbocharger keep the manifold, and 0.83 A/R is the responsive choice for a G35, suiting 3.0L to 4.0L engines. A 5.0L V8 aiming at the G35-1050 rating will want the 1.01 A/R T3 housing instead.

Moving Up to a G35

Many existing manifolds carry a T3 flange and an external wastegate port. This housing lets the larger G35 frame, with its 68mm turbine wheel, bolt to that manifold without fabrication at the inlet. Garrett states that the G35 turbine wheel flows 15 to 20 percent more than GTX with a 74 percent peak efficiency.

Features

T3 inlet for existing T3 manifolds
0.83 A/R, the more responsive of the two G35 T3 sizes
V-band outlet and free-float layout

Specifications

Garrett part number: 740902-0106
A/R: 0.83
Turbine inlet and outlet: T3 and V-band
Wastegate: External (free float)
Rotation: Standard
Material: Stainless steel, rated to 1050C (1922F)

Applications

Garrett lists this G35 Turbine Housing Kit for these standard-rotation super cores, rated from 550 to 1050 horsepower on 2.0L to 5.5L engines:

Garrett G35-900: 880695-5001S
Garrett G35-990 G-Series II: 934123-5001S
Garrett G35-1050: 880695-5002S

Notes

An external wastegate is required, because this free-float housing has no internal wastegate
The G35 super core is sold separately
Standard rotation; the reverse-rotation 0.83 A/R T3 housing is part 740902-0116
Garrett also lists a 1.01 A/R T3 housing for standard G35 cores, part 740902-0107

Frequently Asked Questions

Will the G35 Turbine Housing Kit fit the T3 manifold from my old turbo? Yes, if the manifold has a standard T3 turbine flange and room for the larger G35 frame. This G35 Turbine Housing Kit uses a T3 inlet and a V-band outlet, so the downpipe will need a V-band flange. Check clearances and the Garrett flange diagram before ordering.
Is 0.83 A/R a good match for the G35-1050? It can be on a mid-size engine that needs response, but the G35-1050 is rated from 700 to 1050 horsepower, and reaching the top of that range usually calls for more turbine flow. For a large engine targeting the full rating, the 1.01 A/R T3 housing is the better match.
Does a T3 housing need an external wastegate? This one does. It is a free-float housing with no wastegate port, so boost has to be controlled by a gate on the exhaust manifold. Most T3 manifolds built for external wastegates already have the flange. Garrett also lists internally gated G35 housings, but only with V-band inlets.
Why pick a T3 inlet rather than a V-band inlet? Pick T3 when the manifold already has a T3 flange, since this housing then bolts straight on. A V-band inlet suits fabricated manifolds built around a clamp joint and allows easier clocking. Garrett lists the same G35 cores for both, and the T3 version keeps the V-band outlet.
Is there a reverse rotation version? Yes. Garrett lists the reverse-rotation 0.83 A/R T3 G35 housing as part 740902-0116. This part, 740902-0106, is the standard-rotation version, and each one only suits a core of matching rotation because the volute spirals in a fixed direction. Twin-turbo builds normally use one of each.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
