What build is the G35-990 G-Series II Turbocharger meant for?

Garrett sizes it for 2.0L to 5.5L engines making 550 to 990 horsepower. With the 0.83 A/R housing, the G35-990 G-Series II Turbocharger suits a built 3.0L to 4.0L engine that wants big turbine flow but still needs boost early enough to drive well on the street.

How is the G35-990 different from the G30-900?

Both have a 62mm compressor inducer. The G35-990 pairs it with the larger 68mm by 62mm G35 turbine and adds the G-Series II compressor and turbine updates, while the first-generation G30-900 uses the 60mm by 55mm G30 turbine. The G35 turbine lowers back pressure on larger engines.

How much horsepower does Garrett rate it for?

Garrett rates the G35-990 at 550 to 990 horsepower, calculated from the choke flow of the compressor map as potential flywheel horsepower. The 0.83 A/R housing favors response, so a typical build on this version settles in the middle of that range.

Can a G35 Gen I owner upgrade to this?

Yes, though usually with a CHRA rather than this complete turbo. Garrett states that G-Series II uses Gen I compressor and turbine housings and offers a direct upgrade path with just a CHRA purchase. This complete unit suits new builds or a change of housing.

What is the maximum speed for the G35-990?

Garrett publishes 140,000 rpm as the maximum allowable speed. Use above it is at the risk of the owner and can cause damage and premature failure. A speed sensor installed into the compressor housing lets the tuner monitor shaft speed, and Garrett sells the sensor kit separately.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

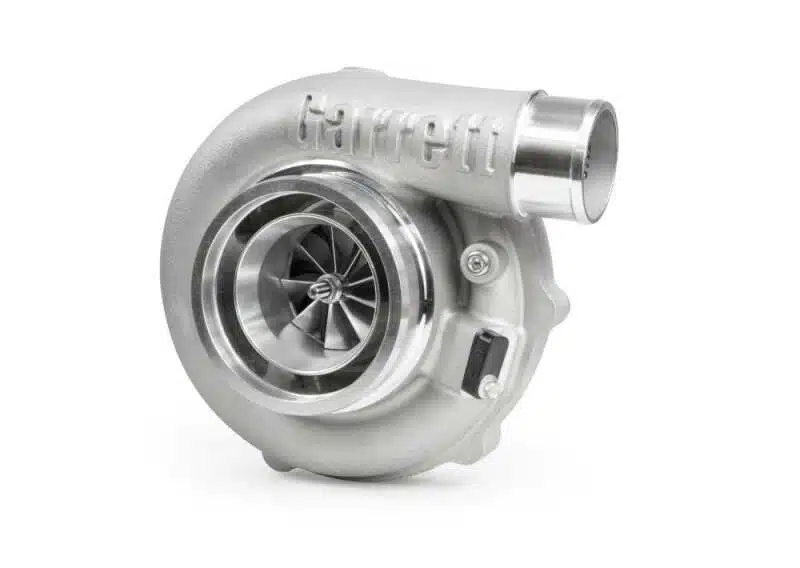

Garrett G35-990 G-Series II Turbocharger, 0.83 A/R V-Band Internal Wastegate

Garrett’s G35-990 G-Series II Turbocharger with the 0.83 A/R housing combines a 62mm compressor wheel with the large 68mm G35 turbine, assembled by Garrett with a V-band internal wastegate housing and a calibrated 0.5 bar actuator. Garrett rates it at 550 to 990 horsepower on engines from 2.0L to 5.5L, a broader range than the first-generation G35-1050. The 0.83 A/R suits a 3.0L to 4.0L engine targeting 700 to 850 horsepower with usable response. A 2.0L engine will find the G35 turbine slow to wake up and is usually better on a G30.

G-Series II Upgrades

Garrett credits G-Series II with up to 10 percent more compressor flow than the first generation at peak pressure ratio and turbo speed, and a new turbine wheel that flows 15 to 20 percent more than its GTX turbine at 74 percent peak efficiency. G-Series II keeps the first-generation housings, so an existing G35 owner can reuse the compressor cover.

Features

62mm G-Series II compressor on the 68mm by 62mm G35 turbine
0.83 A/R internal wastegate housing with V-band inlet and outlet
Assembled and calibrated by Garrett with a 0.5 bar actuator

Specifications

Compressor inducer and exducer: 62mm and 76mm
Compressor trim and A/R: 65 and 0.72
Turbine inducer and exducer: 68mm and 62mm
Turbine housing: 0.83 A/R, V-band inlet and outlet
Wastegate actuator: 0.5 bar
Maximum turbocharger speed: 140,000 rpm
Rotation: Standard

What’s Included

G35-990 G-Series II turbocharger with 0.83 A/R internal wastegate housing and actuator
Oil restrictor and water fittings

Applications

The G35-990 G-Series II Turbocharger is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 2.0L to 5.5L
Power range: 550 to 990 horsepower (Garrett rating)

Notes

Garrett also builds this turbo with a 1.01 A/R housing, and sells the G35-990 super core and CHRA in both rotations
The Garrett speed sensor kit is sold separately
Garrett states that running above 140,000 rpm is at the owner’s risk and can cause damage and premature failure
Garrett states that a calibration is needed to gain power from the added compressor flow

Frequently Asked Questions

What build is the G35-990 G-Series II Turbocharger meant for? Garrett sizes it for 2.0L to 5.5L engines making 550 to 990 horsepower. With the 0.83 A/R housing, the G35-990 G-Series II Turbocharger suits a built 3.0L to 4.0L engine that wants big turbine flow but still needs boost early enough to drive well on the street.
How is the G35-990 different from the G30-900? Both have a 62mm compressor inducer. The G35-990 pairs it with the larger 68mm by 62mm G35 turbine and adds the G-Series II compressor and turbine updates, while the first-generation G30-900 uses the 60mm by 55mm G30 turbine. The G35 turbine lowers back pressure on larger engines.
How much horsepower does Garrett rate it for? Garrett rates the G35-990 at 550 to 990 horsepower, calculated from the choke flow of the compressor map as potential flywheel horsepower. The 0.83 A/R housing favors response, so a typical build on this version settles in the middle of that range.
Can a G35 Gen I owner upgrade to this? Yes, though usually with a CHRA rather than this complete turbo. Garrett states that G-Series II uses Gen I compressor and turbine housings and offers a direct upgrade path with just a CHRA purchase. This complete unit suits new builds or a change of housing.
What is the maximum speed for the G35-990? Garrett publishes 140,000 rpm as the maximum allowable speed. Use above it is at the risk of the owner and can cause damage and premature failure. A speed sensor installed into the compressor housing lets the tuner monitor shaft speed, and Garrett sells the sensor kit separately.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
