Which housing does the G35-900 Super Core in reverse rotation take?

A reverse-rotation G35 kit. Garrett lists six, all free float with a V-band outlet: 0.61, 0.83, 1.01 and 1.21 A/R with a V-band inlet, and 0.83 and 1.01 A/R with a T3 inlet. Standard-rotation G35 housings will not fit, since Garrett states the two rotations are not interchangeable.

What power range is the G35-900 rated for?

Garrett lists the G35-900 Super Core at 550 to 900 horsepower for engines between 2.0L and 5.5L. That is potential flywheel horsepower calculated from compressor choke flow, so it marks what the compressor can supply rather than a guaranteed engine output.

How is the G35-900 different from the G30-900?

Both carry a 62mm compressor and a 900 horsepower ceiling, but the G35-900 rides on the 68mm G35 turbine instead of the 60mm G30 wheel, and Garrett extends its displacement range to 5.5L. On a larger engine that extra turbine flow helps; on a 2.0L to 3.0L engine the G30-900 is usually the closer match.

Do I need an external wastegate?

Yes. Garrett offers no internal wastegate housing for reverse-rotation G35 cores, so boost control has to come from an external wastegate on the manifold ahead of each turbocharger. Size the wastegate for the exhaust flow of the engine and mount it before the turbine inlet.

What speed limit applies to the G35-900?

Garrett publishes 145,000 rpm as the maximum allowable speed. Running above it is at the risk of the owner and can result in premature failure. The compressor housing has a machined port for a speed sensor; the Garrett kit is sold separately and gives the tuner real shaft speed data.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

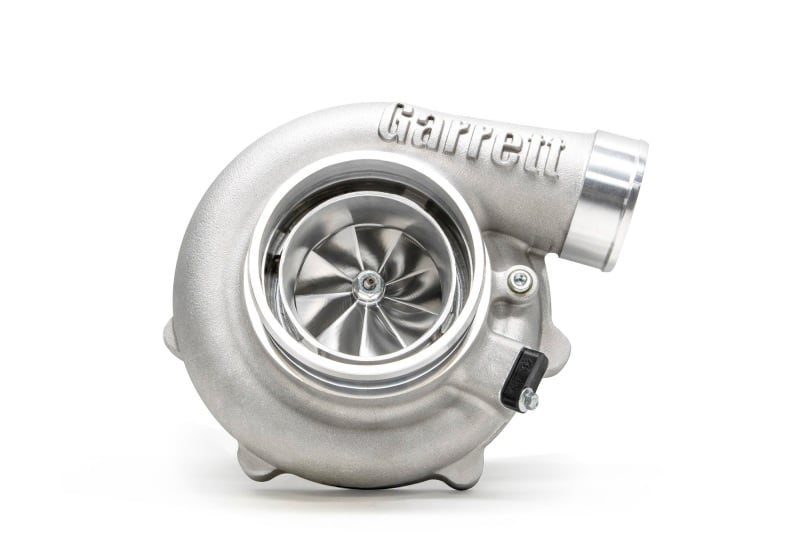

Garrett G35-900 Super Core, 62mm Reverse Rotation

Garrett’s G35-900 Super Core in reverse rotation combines the 62mm compressor with the larger 68mm G35 turbine built to rotate the opposite way from the standard core. With a Garrett rating of 550 to 900 horsepower across 2.0L to 5.5L, it fits twin-turbo builds with more displacement than a G30 is sized for. Like every reverse G35, it runs free-float housings only, so plan for external wastegates.

Center Section

Garrett builds the G35 around a one-piece center housing and backplate and a shorter bearing cartridge with twin piston rings on both sides of the shaft. Garrett says the aim is fewer potential failure points and a lower chance of oil getting past the seals into the compressor or turbine.

Features

62mm compressor wheel, 65 trim, 0.72 A/R housing, 77 percent maximum efficiency
68mm Mar-M alloy turbine wheel rated to 1050C (1922F)
Fully machined speed sensor and pressure ports
Oil restrictor and water fittings supplied

Specifications

Compressor inducer and exducer: 62mm and 76mm
Compressor trim and A/R: 65 trim, 0.72 A/R
Turbine inducer and exducer: 68mm and 62mm
Turbine trim: 84
Maximum compressor efficiency: 77 percent
Maximum turbocharger speed: 145,000 rpm
Rotation: Reverse

What’s Included

G35-900 reverse rotation super core with compressor housing fitted
Oil restrictor and water fittings

Applications

The G35-900 Super Core is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 2.0L to 5.5L
Power range: 550 to 900 horsepower (Garrett rating)
Reverse-rotation turbine kits: Free float only, in 0.61, 0.83, 1.01 and 1.21 A/R V-band and 0.83 and 1.01 A/R T3

Notes

The turbine housing is not included; Garrett lists G35 turbine housing kits in reverse rotation
Every turbine housing Garrett lists for this core is free float, so an external wastegate is required
Garrett states that reverse-rotation turbine housings are not interchangeable with standard-rotation housings
The Garrett speed sensor kit is sold separately
Garrett states that running above 145,000 rpm is at the owner’s risk and can cause premature failure

Frequently Asked Questions

Which housing does the G35-900 Super Core in reverse rotation take? A reverse-rotation G35 kit. Garrett lists six, all free float with a V-band outlet: 0.61, 0.83, 1.01 and 1.21 A/R with a V-band inlet, and 0.83 and 1.01 A/R with a T3 inlet. Standard-rotation G35 housings will not fit, since Garrett states the two rotations are not interchangeable.
What power range is the G35-900 rated for? Garrett lists the G35-900 Super Core at 550 to 900 horsepower for engines between 2.0L and 5.5L. That is potential flywheel horsepower calculated from compressor choke flow, so it marks what the compressor can supply rather than a guaranteed engine output.
How is the G35-900 different from the G30-900? Both carry a 62mm compressor and a 900 horsepower ceiling, but the G35-900 rides on the 68mm G35 turbine instead of the 60mm G30 wheel, and Garrett extends its displacement range to 5.5L. On a larger engine that extra turbine flow helps; on a 2.0L to 3.0L engine the G30-900 is usually the closer match.
Do I need an external wastegate? Yes. Garrett offers no internal wastegate housing for reverse-rotation G35 cores, so boost control has to come from an external wastegate on the manifold ahead of each turbocharger. Size the wastegate for the exhaust flow of the engine and mount it before the turbine inlet.
What speed limit applies to the G35-900? Garrett publishes 145,000 rpm as the maximum allowable speed. Running above it is at the risk of the owner and can result in premature failure. The compressor housing has a machined port for a speed sensor; the Garrett kit is sold separately and gives the tuner real shaft speed data.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
