Which engines suit the 1.01 A/R G35-1050 Turbocharger?

Large engines from about 4.0L to 5.5L, or smaller engines that rev very high and make their power late. The G35-1050 Turbocharger with this housing favors flow over early boost. A 2.0L to 3.0L engine built for street use will respond better to the 0.83 A/R version.

What output does Garrett rate the G35-1050 at?

Garrett rates it at 700 to 1,050 horsepower on 2.0L to 5.5L engines, based on choke flow from the compressor map and expressed as potential flywheel horsepower. With the 1.01 A/R housing an engine has the exhaust flow to approach the upper figure if fuel and calibration allow.

How does the G35-1050 compare with the G35-990?

Both use the 68mm by 62mm G35 turbine wheel. The G35-1050 is first-generation G-Series with a 68mm compressor inducer; the G-Series II G35-990 uses a 62mm inducer rated 550 to 990 horsepower. The G35-990 suits a wider band of builds, while the G35-1050 targets the highest output.

Can I use an external wastegate with the G35-1050?

Not on this housing, which has an internal wastegate. Garrett sells the G35-1050 super core with free-float G35 turbine kits in V-band, T3 and divided T4 inlets from 0.61 to 1.21 A/R for builders who prefer external wastegate control. The internal wastegate keeps this complete unit simpler to plumb.

Do I need a speed sensor on the G35-1050?

Garrett recommends one. The maximum allowable turbocharger speed is 130,000 rpm, and a compressor this large can be pushed past it on a small engine running high boost. The sensor fits the machined port in the compressor housing, and the kit is sold separately.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

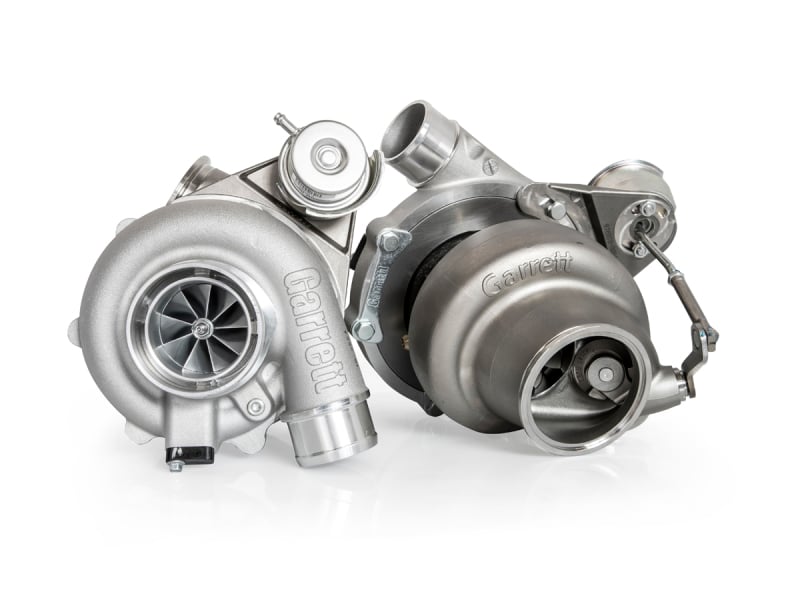

Garrett G35-1050 Turbocharger, 1.01 A/R V-Band Internal Wastegate

Garrett’s G35-1050 Turbocharger with the 1.01 A/R housing is the high-flow internal wastegate version of Garrett’s 68mm G35, assembled with V-band turbine connections and a 0.5 bar actuator. Garrett rates the G35-1050 at 700 to 1,050 horsepower on 2.0L to 5.5L engines. The 1.01 A/R housing lets a 4.0L to 5.5L engine, or a smaller one that revs very high, run toward the top of that rating without choking on exhaust back pressure. It is overkill for most single-turbo street engines.

Features

Larger 1.01 A/R internal wastegate housing for high exhaust flow
V-band turbine inlet and outlet
68mm compressor with a 78 percent maximum compressor efficiency, by Garrett figures
Oil restrictor and water fittings supplied

Specifications

Compressor inducer and exducer: 68mm and 84mm
Compressor trim and A/R: 65 and 0.75
Turbine inducer and exducer: 68mm and 62mm
Turbine housing: 1.01 A/R, V-band inlet and outlet
Wastegate actuator: 0.5 bar
Maximum turbocharger speed: 130,000 rpm
Rotation: Standard

What’s Included

G35-1050 turbocharger with 1.01 A/R internal wastegate housing and actuator
Oil restrictor and water fittings

Applications

The G35-1050 Turbocharger is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 2.0L to 5.5L
Power range: 700 to 1,050 horsepower (Garrett rating)

Notes

A 0.83 A/R version is available for quicker spool
The Garrett speed sensor kit is sold separately
Garrett states that running above 130,000 rpm is at the owner’s risk and can cause damage and premature failure
Garrett offers G35 free-float housings in T4 divided, T3 and V-band inlets for external wastegate builds

Frequently Asked Questions

Which engines suit the 1.01 A/R G35-1050 Turbocharger? Large engines from about 4.0L to 5.5L, or smaller engines that rev very high and make their power late. The G35-1050 Turbocharger with this housing favors flow over early boost. A 2.0L to 3.0L engine built for street use will respond better to the 0.83 A/R version.
What output does Garrett rate the G35-1050 at? Garrett rates it at 700 to 1,050 horsepower on 2.0L to 5.5L engines, based on choke flow from the compressor map and expressed as potential flywheel horsepower. With the 1.01 A/R housing an engine has the exhaust flow to approach the upper figure if fuel and calibration allow.
How does the G35-1050 compare with the G35-990? Both use the 68mm by 62mm G35 turbine wheel. The G35-1050 is first-generation G-Series with a 68mm compressor inducer; the G-Series II G35-990 uses a 62mm inducer rated 550 to 990 horsepower. The G35-990 suits a wider band of builds, while the G35-1050 targets the highest output.
Can I use an external wastegate with the G35-1050? Not on this housing, which has an internal wastegate. Garrett sells the G35-1050 super core with free-float G35 turbine kits in V-band, T3 and divided T4 inlets from 0.61 to 1.21 A/R for builders who prefer external wastegate control. The internal wastegate keeps this complete unit simpler to plumb.
Do I need a speed sensor on the G35-1050? Garrett recommends one. The maximum allowable turbocharger speed is 130,000 rpm, and a compressor this large can be pushed past it on a small engine running high boost. The sensor fits the machined port in the compressor housing, and the kit is sold separately.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
