Is the 1.01 A/R G30 Wastegate Turbine Housing right for my engine?

It fits best on 3.0L to 3.5L engines, or smaller engines that rev hard, running a G30-825 or G30-900 toward the top of its rating. The 1.01 A/R G30 Wastegate Turbine Housing lowers back pressure at high flow. Smaller engines focused on response should choose the 0.83 A/R.

Does Turn 14 list this as a G30-725 part?

Yes, Turn 14 names it after the G30-725, but Garrett lists it for every standard-rotation G30 super core: the G30-660, G30-770 and G30-900 and the G-Series II G30-725 and G30-825. We follow Garrett, so the listing names the G30 frame rather than one core.

Will an internal wastegate hold boost at 1.01 A/R?

Garrett designed its internally gated G-Series housings with the largest possible wastegate port specifically to reduce boost creep and improve boost control. Actual results depend on the boost target, the actuator spring and the exhaust flow of the engine, so very low boost targets at high power deserve a careful setup.

Can I fit it to a reverse rotation G30?

No. Garrett offers its internally gated G30 housings for standard-rotation cores only. A reverse-rotation G30 has to run a free-float housing with an external wastegate, and Garrett lists those in 0.61 to 1.21 A/R with T3 or V-band inlets for the reverse cores.

What comes in the box?

Garrett does not publish the contents of this turbine kit, including whether an actuator is supplied. Its assembled G30 turbochargers are calibrated with a 0.5 bar actuator, but that note covers the complete turbo part numbers only. Contact Bulletproof Automotive before ordering and we will confirm the contents with Garrett.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

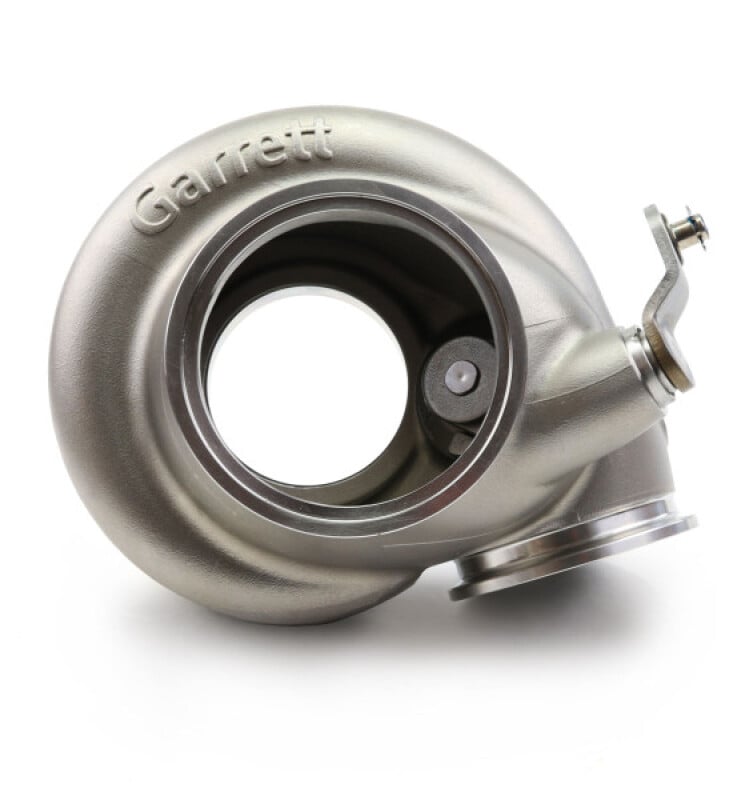

Garrett G30 Wastegate Turbine Housing, 1.01 A/R V-Band

Garrett’s G30 Wastegate Turbine Housing at 1.01 A/R is the larger of the two internally gated housings for standard-rotation G30 cores, a stainless V-band casting with its wastegate port built in. Part 740902-0095 is listed by Garrett for the G30-660, G30-770, G30-900 and the G-Series II G30-725 and G30-825, the same layout as its assembled 1.01 A/R G30 turbochargers. It makes sense on a 3.0L to 3.5L engine, or a G30-825 or G30-900 build aimed high on its rating, where top-end flow matters and the owner wants boost control on the turbocharger. A 2.0L chasing response is better off with the 0.83 A/R.

Flow With Built-In Boost Control

A larger A/R lowers back pressure as exhaust flow rises, and on an internally gated housing it also means more exhaust reaching the wastegate port at full load. Garrett sizes that port as large as the housing allows to fight boost creep. The housing is stainless, rated to 1050C (1922F), and fits both generations of G30 core.

Features

1.01 A/R for top-end flow
Internal wastegate with Garrett’s maximum-size port
V-band inlet and outlet

Specifications

Garrett part number: 740902-0095
A/R: 1.01
Turbine inlet and outlet: V-band and V-band
Wastegate: Internal
Rotation: Standard
Material: Stainless steel, rated to 1050C (1922F)

Applications

Garrett lists this G30 Wastegate Turbine Housing for these standard-rotation super cores:

Garrett G30-660: 880693-5001S
Garrett G30-725 G-Series II: 934117-5001S
Garrett G30-770: 880693-5002S
Garrett G30-825 G-Series II: 934117-5002S
Garrett G30-900: 880693-5003S

Notes

Garrett does not publish the contents of this turbine kit or whether an actuator is supplied; contact us to confirm before ordering
The turbocharger core is not included; browse the G30 super cores and CHRAs
Standard rotation only; reverse-rotation G30 cores use free-float housings
For quicker spool with an internal wastegate, Garrett lists the 0.83 A/R housing as part 740902-0094

Frequently Asked Questions

Is the 1.01 A/R G30 Wastegate Turbine Housing right for my engine? It fits best on 3.0L to 3.5L engines, or smaller engines that rev hard, running a G30-825 or G30-900 toward the top of its rating. The 1.01 A/R G30 Wastegate Turbine Housing lowers back pressure at high flow. Smaller engines focused on response should choose the 0.83 A/R.
Does Turn 14 list this as a G30-725 part? Yes, Turn 14 names it after the G30-725, but Garrett lists it for every standard-rotation G30 super core: the G30-660, G30-770 and G30-900 and the G-Series II G30-725 and G30-825. We follow Garrett, so the listing names the G30 frame rather than one core.
Will an internal wastegate hold boost at 1.01 A/R? Garrett designed its internally gated G-Series housings with the largest possible wastegate port specifically to reduce boost creep and improve boost control. Actual results depend on the boost target, the actuator spring and the exhaust flow of the engine, so very low boost targets at high power deserve a careful setup.
Can I fit it to a reverse rotation G30? No. Garrett offers its internally gated G30 housings for standard-rotation cores only. A reverse-rotation G30 has to run a free-float housing with an external wastegate, and Garrett lists those in 0.61 to 1.21 A/R with T3 or V-band inlets for the reverse cores.
What comes in the box? Garrett does not publish the contents of this turbine kit, including whether an actuator is supplied. Its assembled G30 turbochargers are calibrated with a 0.5 bar actuator, but that note covers the complete turbo part numbers only. Contact Bulletproof Automotive before ordering and we will confirm the contents with Garrett.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
