Is the 1.21 A/R reverse G30 Turbine Housing Kit too big for a V6?

For most twin-turbo V6 engines, yes. Each bank of a V6 sends three cylinders of exhaust to its turbocharger, which rarely spools a 1.21 A/R housing quickly. The 1.21 A/R reverse G30 Turbine Housing Kit is meant for large twin-turbo V8 engines chasing peak power.

What is it paired with on the other bank?

The standard-rotation 1.21 A/R V-band housing, part 740902-0089, on a standard G30 core. Using the same A/R on both turbochargers keeps the two banks spooling together, which makes wastegate setup and the calibration far easier than with mismatched housings, and it keeps the exhaust plumbing symmetrical.

Will a standard G30 core accept this housing?

No. The volute is shaped for a turbine wheel turning in reverse, and Garrett lists this housing for reverse-rotation G30 super cores only. Standard-rotation cores need part 740902-0089 or one of the other standard G30 housings, which Garrett offers from 0.61 to 1.21 A/R with V-band, T3 and divided T4 inlets.

Do I need a speed sensor with large housings?

Garrett recommends monitoring shaft speed on any G-Series turbocharger. A large housing does not raise the limit, which is set by the core, from 145,000 rpm on the G30-900 to 165,000 rpm on the G30-660. A sensor fits the compressor housing and is sold separately.

Which cores does Garrett list it for?

Five reverse-rotation super cores: the G30-660, G30-770, G30-900, and the G-Series II G30-725 and G30-825, rated together from 350 to 900 horsepower on 2.0L to 3.5L engines. The G-Series II cores share the original turbine housings, so the housing stays usable through a core upgrade.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

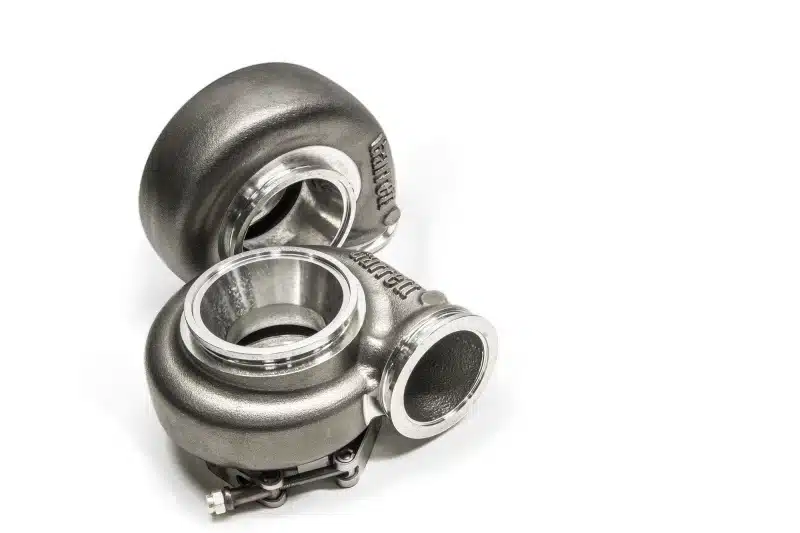

Garrett G30 Turbine Housing Kit, 1.21 A/R V-Band Free Float Reverse Rotation

Garrett’s G30 Turbine Housing Kit in 1.21 A/R reverse rotation is the largest volute Garrett offers for a reverse G30 core, a stainless free-float housing with V-band flanges. Part 740902-0099 is listed for the reverse-rotation G30-660, G30-770, G30-900 and the G-Series II G30-725 and G30-825. It belongs on a big-displacement twin-turbo engine where each G30-900 or G30-825 is expected to deliver its full rating and high-rpm flow comes first, partnered with standard part 740902-0089. Most twin-turbo V6 builds will find it too large and should look at the 0.83 or 1.01 A/R reverse housings.

Flow First

Even split across two banks, the exhaust of a large V8 can keep a pair of 1.21 A/R housings spooled, and the low restriction keeps back pressure down at peak power. This is the reverse half of that pair, mirroring the standard housing so both sides of the engine share the same plumbing layout. External wastegates control boost on each bank.

Features

Largest reverse-rotation G30 volute, 1.21 A/R
V-band inlet and outlet
Free-float housing for external wastegate builds

Specifications

Garrett part number: 740902-0099
A/R: 1.21
Turbine inlet and outlet: 3 in (76.2mm) V-band and 3.5 in (90.16mm) V-band
Wastegate: External (free float)
Rotation: Reverse
Material: Stainless steel, rated to 1050C (1922F)

Applications

Garrett lists this G30 Turbine Housing Kit for these reverse-rotation super cores:

Garrett G30-660 Reverse Rotation: 880694-5001S
Garrett G30-725 G-Series II Reverse Rotation: 934121-5001S
Garrett G30-770 Reverse Rotation: 880694-5002S
Garrett G30-825 G-Series II Reverse Rotation: 934121-5002S
Garrett G30-900 Reverse Rotation: 880694-5003S

Notes

An external wastegate is required, because this free-float housing has no wastegate port
The reverse-rotation G30 super core is sold separately
Reverse rotation only; standard cores take the 1.21 A/R V-band housing, part 740902-0089
Garrett states that running a G30 above its maximum turbocharger speed is at the owner’s risk; a speed sensor kit is sold separately

Frequently Asked Questions

Is the 1.21 A/R reverse G30 Turbine Housing Kit too big for a V6? For most twin-turbo V6 engines, yes. Each bank of a V6 sends three cylinders of exhaust to its turbocharger, which rarely spools a 1.21 A/R housing quickly. The 1.21 A/R reverse G30 Turbine Housing Kit is meant for large twin-turbo V8 engines chasing peak power.
What is it paired with on the other bank? The standard-rotation 1.21 A/R V-band housing, part 740902-0089, on a standard G30 core. Using the same A/R on both turbochargers keeps the two banks spooling together, which makes wastegate setup and the calibration far easier than with mismatched housings, and it keeps the exhaust plumbing symmetrical.
Will a standard G30 core accept this housing? No. The volute is shaped for a turbine wheel turning in reverse, and Garrett lists this housing for reverse-rotation G30 super cores only. Standard-rotation cores need part 740902-0089 or one of the other standard G30 housings, which Garrett offers from 0.61 to 1.21 A/R with V-band, T3 and divided T4 inlets.
Do I need a speed sensor with large housings? Garrett recommends monitoring shaft speed on any G-Series turbocharger. A large housing does not raise the limit, which is set by the core, from 145,000 rpm on the G30-900 to 165,000 rpm on the G30-660. A sensor fits the compressor housing and is sold separately.
Which cores does Garrett list it for? Five reverse-rotation super cores: the G30-660, G30-770, G30-900, and the G-Series II G30-725 and G30-825, rated together from 350 to 900 horsepower on 2.0L to 3.5L engines. The G-Series II cores share the original turbine housings, so the housing stays usable through a core upgrade.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
