When does the 1.01 A/R G30 Turbine Housing Kit make sense?

When the engine is 3.0L or larger, or revs high, and the goal is power near the top of a G30-825 or G30-900 rating. The 1.01 A/R G30 Turbine Housing Kit lowers back pressure at high flow. On a small engine aiming for street response, the 0.83 A/R spools noticeably sooner.

Will a 1.01 A/R housing make my G30 laggy?

Boost will arrive later than with a 0.83 or 0.61 A/R on the same engine, because the larger volute speeds the turbine more gently at low exhaust flow. On an engine big enough for the housing the difference is modest, while on a small engine it can be significant.

How is the wastegate handled?

Externally. This free-float housing has no wastegate port, so a gate on the exhaust manifold controls boost. If you would rather keep the wastegate on the turbocharger, Garrett makes an internally gated 1.01 A/R V-band G30 housing as part 740902-0095.

Do the V-band flanges match GTX turbochargers?

Garrett states that the G30 V-band turbine inlet is 3 inch, or 76.2mm, and the outlet is 3.5 inch, or 90.16mm, the same sizes used on GTX turbochargers. A manifold and downpipe built for a GTX of that frame size should therefore mate up, but check the flange diagram first.

Is the housing standard rotation?

Yes. Part 740902-0088 is listed by Garrett for standard-rotation G30 cores only. Reverse-rotation G30 cores need their own housing, and the reverse 1.01 A/R V-band version is part 740902-0098, normally paired with this one on a mirrored twin-turbo engine with two G30 cores.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

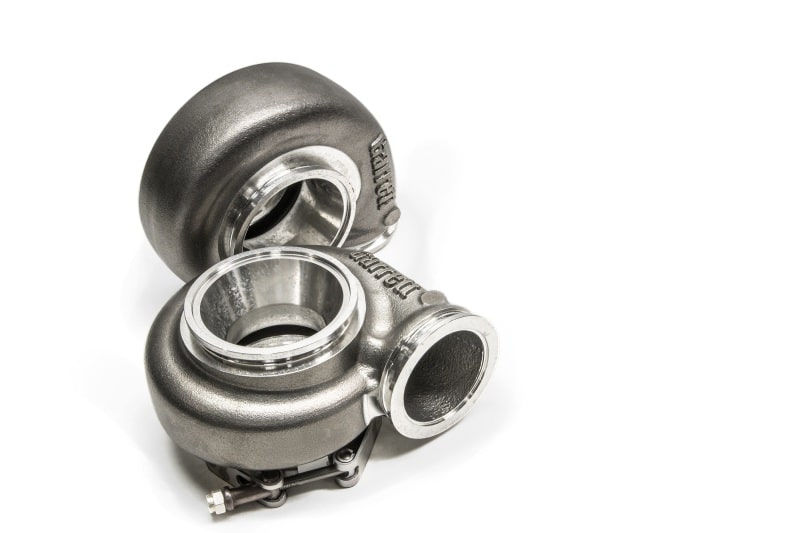

Garrett G30 Turbine Housing Kit, 1.01 A/R V-Band Free Float

Garrett’s G30 Turbine Housing Kit at 1.01 A/R V-band is the top-end housing for standard-rotation G30 cores, free float with a 3 inch V-band inlet and 3.5 inch outlet. Garrett lists part 740902-0088 for the G30-660, G30-770 and G30-900 and the G-Series II G30-725 and G30-825. Its home is a 3.0L to 3.5L engine, or a smaller engine built to rev, running a G30-825 or G30-900 toward the top of its rating, where lower back pressure pays off. On a G30-660 with a 2.0L, the delay in boost outweighs the gain, and the 0.83 A/R is the better buy.

Reducing Back Pressure

Back pressure between the engine and the turbine rises as exhaust flow climbs. A 1.01 A/R volute feeds the 60mm G30 turbine wheel through a larger passage, which keeps that pressure lower at high load and rpm and helps an engine make its power on the top end. Garrett casts the housing in stainless steel rated to 1050C (1922F).

Features

1.01 A/R for top-end flow on larger G30 builds
V-band inlet and outlet, 3 in and 3.5 in
Free-float housing, clockable on the center housing V-band

Specifications

Garrett part number: 740902-0088
A/R: 1.01
Turbine inlet and outlet: 3 in (76.2mm) V-band and 3.5 in (90.16mm) V-band
Wastegate: External (free float)
Rotation: Standard
Material: Stainless steel, rated to 1050C (1922F)

Applications

Garrett lists this G30 Turbine Housing Kit for these standard-rotation super cores, rated from 350 to 900 horsepower on 2.0L to 3.5L engines:

Garrett G30-660: 880693-5001S
Garrett G30-725 G-Series II: 934117-5001S
Garrett G30-770: 880693-5002S
Garrett G30-825 G-Series II: 934117-5002S
Garrett G30-900: 880693-5003S

Notes

An external wastegate is required, because this free-float housing has no wastegate port
The G30 super core is sold separately
Standard rotation; the reverse-rotation 1.01 A/R V-band housing is part 740902-0098
Garrett lists an internally gated 1.01 A/R V-band G30 housing as part 740902-0095

Frequently Asked Questions

When does the 1.01 A/R G30 Turbine Housing Kit make sense? When the engine is 3.0L or larger, or revs high, and the goal is power near the top of a G30-825 or G30-900 rating. The 1.01 A/R G30 Turbine Housing Kit lowers back pressure at high flow. On a small engine aiming for street response, the 0.83 A/R spools noticeably sooner.
Will a 1.01 A/R housing make my G30 laggy? Boost will arrive later than with a 0.83 or 0.61 A/R on the same engine, because the larger volute speeds the turbine more gently at low exhaust flow. On an engine big enough for the housing the difference is modest, while on a small engine it can be significant.
How is the wastegate handled? Externally. This free-float housing has no wastegate port, so a gate on the exhaust manifold controls boost. If you would rather keep the wastegate on the turbocharger, Garrett makes an internally gated 1.01 A/R V-band G30 housing as part 740902-0095.
Do the V-band flanges match GTX turbochargers? Garrett states that the G30 V-band turbine inlet is 3 inch, or 76.2mm, and the outlet is 3.5 inch, or 90.16mm, the same sizes used on GTX turbochargers. A manifold and downpipe built for a GTX of that frame size should therefore mate up, but check the flange diagram first.
Is the housing standard rotation? Yes. Part 740902-0088 is listed by Garrett for standard-rotation G30 cores only. Reverse-rotation G30 cores need their own housing, and the reverse 1.01 A/R V-band version is part 740902-0098, normally paired with this one on a mirrored twin-turbo engine with two G30 cores.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
