Will the G30 Turbine Housing Kit bolt to my T3 manifold?

Yes, provided the manifold has a standard T3 turbine flange. This G30 Turbine Housing Kit uses a T3 inlet and a V-band outlet, so the downpipe will need a V-band flange even if the old turbocharger used a bolted outlet. Garrett publishes a flange diagram to check dimensions before ordering.

Should I choose 0.83 or 1.01 A/R with a T3 inlet?

Go with 0.83 A/R when response and mid-range torque matter most, typically on a 2.0L to 3.0L engine. The 1.01 A/R gives up some spool for more top-end flow and suits larger engines or builds targeting the high end of the G30-825 and G30-900 ratings.

Does the housing have an internal wastegate?

No. It is a free-float housing, meaning every bit of exhaust passes through the turbine and boost is controlled by an external wastegate on the manifold. Many T3 manifolds already include a wastegate flange. Garrett offers internal wastegate G30 housings only with V-band inlets, in 0.83 and 1.01 A/R.

Can I reuse the external wastegate from my old T3 setup?

Usually, yes, because the wastegate lives on the manifold rather than the turbine housing. Check that the gate is large enough for the new power target, since Garrett rates G30 cores up to 900 horsepower and a gate sized for a smaller turbocharger may not hold boost at high exhaust flow.

Is this housing standard or reverse rotation?

Standard rotation, listed by Garrett for standard-rotation G30 cores only. A reverse-rotation core spins the other way and needs its own housing, so for a mirrored twin-turbo setup on T3 manifolds the matching reverse part is 740902-0100, also 0.83 A/R with a T3 inlet.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

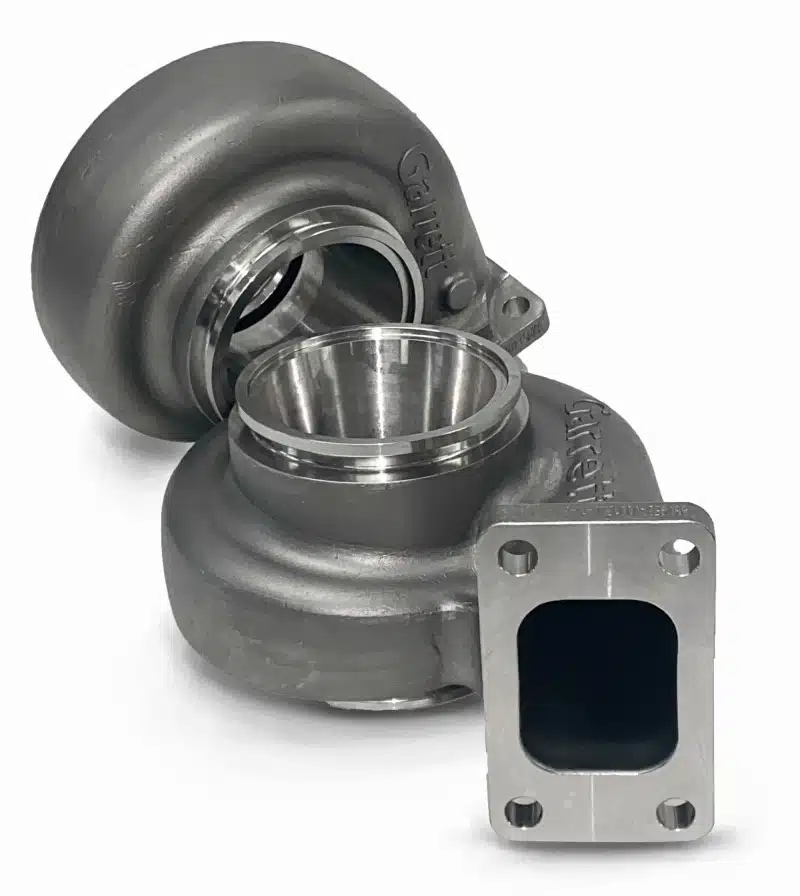

Garrett G30 Turbine Housing Kit, 0.83 A/R T3 Free Float

Garrett’s G30 Turbine Housing Kit in 0.83 A/R with a T3 inlet lets a standard-rotation G30 bolt to a conventional T3 exhaust manifold, with a V-band outlet and no internal wastegate. Garrett lists part 740902-0090 for the G30-660, G30-770, G30-900 and the G-Series II G30-725 and G30-825. That makes it the practical route for an owner moving from an older T3-flanged turbocharger who wants G30 performance without a new manifold. The 0.83 A/R favors response on 2.0L to 3.0L engines; anyone after the last of a G30-900 rating on 3.5L should look at the 1.01 A/R.

Keeping the T3 Manifold

T3 is one of the most widely used turbine flanges in the aftermarket, and many existing manifolds already carry it along with an external wastegate flange. This housing pairs that inlet with the V-band outlet and stainless construction Garrett uses across the G-Series, rated to 1050C (1922F), so the downpipe changes but the manifold can stay.

Features

T3 turbine inlet for existing T3 manifolds
V-band outlet to the downpipe
0.83 A/R, the smaller of the two T3 sizes Garrett offers for the G30
Free float, for use with an external wastegate

Specifications

Garrett part number: 740902-0090
A/R: 0.83
Turbine inlet and outlet: T3 and V-band
Wastegate: External (free float)
Rotation: Standard
Material: Stainless steel, rated to 1050C (1922F)

Applications

Garrett lists this G30 Turbine Housing Kit for these standard-rotation super cores, rated from 350 to 900 horsepower on 2.0L to 3.5L engines:

Garrett G30-660: 880693-5001S
Garrett G30-725 G-Series II: 934117-5001S
Garrett G30-770: 880693-5002S
Garrett G30-825 G-Series II: 934117-5002S
Garrett G30-900: 880693-5003S

Notes

An external wastegate is required, because this free-float housing has no wastegate port
The G30 super core is sold separately
Standard rotation; the reverse-rotation 0.83 A/R T3 housing is part 740902-0100
The same T3 inlet is offered in 1.01 A/R as part 740902-0091

Frequently Asked Questions

Will the G30 Turbine Housing Kit bolt to my T3 manifold? Yes, provided the manifold has a standard T3 turbine flange. This G30 Turbine Housing Kit uses a T3 inlet and a V-band outlet, so the downpipe will need a V-band flange even if the old turbocharger used a bolted outlet. Garrett publishes a flange diagram to check dimensions before ordering.
Should I choose 0.83 or 1.01 A/R with a T3 inlet? Go with 0.83 A/R when response and mid-range torque matter most, typically on a 2.0L to 3.0L engine. The 1.01 A/R gives up some spool for more top-end flow and suits larger engines or builds targeting the high end of the G30-825 and G30-900 ratings.
Does the housing have an internal wastegate? No. It is a free-float housing, meaning every bit of exhaust passes through the turbine and boost is controlled by an external wastegate on the manifold. Many T3 manifolds already include a wastegate flange. Garrett offers internal wastegate G30 housings only with V-band inlets, in 0.83 and 1.01 A/R.
Can I reuse the external wastegate from my old T3 setup? Usually, yes, because the wastegate lives on the manifold rather than the turbine housing. Check that the gate is large enough for the new power target, since Garrett rates G30 cores up to 900 horsepower and a gate sized for a smaller turbocharger may not hold boost at high exhaust flow.
Is this housing standard or reverse rotation? Standard rotation, listed by Garrett for standard-rotation G30 cores only. A reverse-rotation core spins the other way and needs its own housing, so for a mirrored twin-turbo setup on T3 manifolds the matching reverse part is 740902-0100, also 0.83 A/R with a T3 inlet.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
