Why choose a 0.61 A/R reverse G30 Turbine Housing Kit for a twin turbo engine?

Each turbocharger on a twin-turbo engine handles about half the exhaust, so a smaller A/R keeps each one responsive. The 0.61 A/R reverse G30 Turbine Housing Kit suits smaller twin-turbo engines where early boost matters. Bigger engines chasing peak power are better with 0.83 or 1.01 A/R on both banks.

Will it fit my standard rotation G30?

No. Garrett lists this housing only for reverse-rotation G30 super cores, since the volute feeds a turbine wheel spinning in the reverse direction. The standard-rotation 0.61 A/R V-band housing is part 740902-0086 and is the one to pair with this housing on the opposite bank.

What does reverse rotation mean for the turbocharger?

The compressor and turbine wheels spin the opposite way to a standard G30, which makes the reverse unit a mirror image in its plumbing. Garrett offers it for a symmetrical twin-turbo installation, or for a single turbocharger where packaging rules out a standard unit.

How many wastegates should a twin G30 setup use?

That depends on the manifolds. With free-float housings, boost is controlled outside the turbocharger, often by one external wastegate per bank, sometimes by a single gate joined through a crossover. Size the gates for the combined power target and the boost pressure the engine will run.

Which reverse G30 cores take this housing?

Garrett lists five: the G30-660, G30-770 and G30-900 reverse-rotation super cores, and the G-Series II G30-725 and G30-825 reverse cores. They share one turbine wheel size, so the housing fits any of them and stays usable if the cores are upgraded to G-Series II later.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

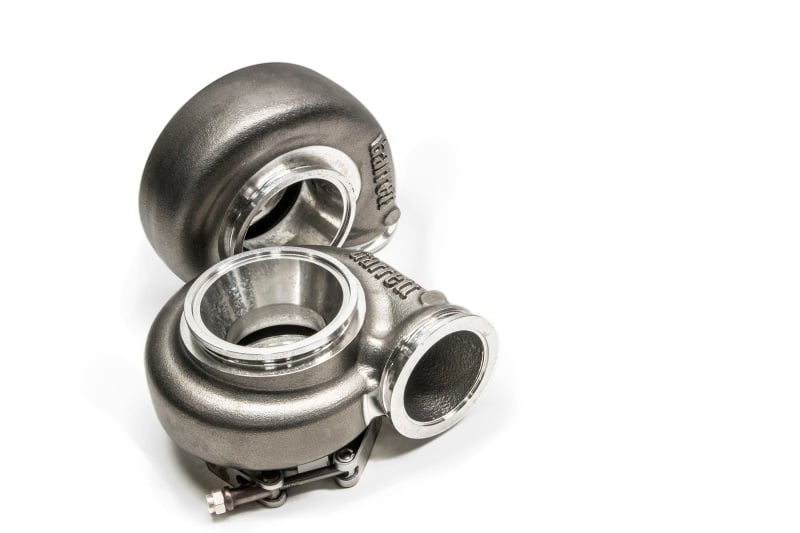

Garrett G30 Turbine Housing Kit, 0.61 A/R V-Band Free Float Reverse Rotation

Garrett’s G30 Turbine Housing Kit in reverse rotation and 0.61 A/R gives a reverse-spinning G30 the smallest, quickest-responding volute in the range, with V-band flanges at both ends and no internal wastegate. Garrett lists part 740902-0096 for the reverse G30-660, G30-770 and G30-900 and the G-Series II G30-725 and G30-825. Because each turbocharger on a twin-turbo engine sees only half the exhaust, a small A/R often makes sense there, and this housing suits a compact twin-turbo V6 that needs boost early. For a big V8 twin build after peak power it is too restrictive.

Sized for a Twin

Splitting exhaust between two G30s halves the flow through each turbine, so each housing can be smaller than a single-turbo engine of the same size would need. The 0.61 A/R reverse volute pairs with the standard 0.61 A/R housing, part 740902-0086, so both banks build boost together. External wastegates on the manifolds handle boost control.

Features

Reverse-rotation 0.61 A/R volute, the smallest G30 reverse size
V-band inlet and outlet
Free-float design for external wastegates
Stainless casting rated to 1050C (1922F)

Specifications

Garrett part number: 740902-0096
A/R: 0.61
Turbine inlet and outlet: 3 in (76.2mm) V-band and 3.5 in (90.16mm) V-band
Wastegate: External (free float)
Rotation: Reverse
Material: Stainless steel, rated to 1050C (1922F)

Applications

Garrett lists this G30 Turbine Housing Kit for these reverse-rotation super cores:

Garrett G30-660 Reverse Rotation: 880694-5001S
Garrett G30-725 G-Series II Reverse Rotation: 934121-5001S
Garrett G30-770 Reverse Rotation: 880694-5002S
Garrett G30-825 G-Series II Reverse Rotation: 934121-5002S
Garrett G30-900 Reverse Rotation: 880694-5003S

Notes

An external wastegate is required, because this free-float housing has no wastegate port
The reverse-rotation G30 super core is sold separately
Reverse rotation only; for standard-rotation cores use part 740902-0086
Reverse V-band housings are also listed in 0.83, 1.01 and 1.21 A/R

Frequently Asked Questions

Why choose a 0.61 A/R reverse G30 Turbine Housing Kit for a twin turbo engine? Each turbocharger on a twin-turbo engine handles about half the exhaust, so a smaller A/R keeps each one responsive. The 0.61 A/R reverse G30 Turbine Housing Kit suits smaller twin-turbo engines where early boost matters. Bigger engines chasing peak power are better with 0.83 or 1.01 A/R on both banks.
Will it fit my standard rotation G30? No. Garrett lists this housing only for reverse-rotation G30 super cores, since the volute feeds a turbine wheel spinning in the reverse direction. The standard-rotation 0.61 A/R V-band housing is part 740902-0086 and is the one to pair with this housing on the opposite bank.
What does reverse rotation mean for the turbocharger? The compressor and turbine wheels spin the opposite way to a standard G30, which makes the reverse unit a mirror image in its plumbing. Garrett offers it for a symmetrical twin-turbo installation, or for a single turbocharger where packaging rules out a standard unit.
How many wastegates should a twin G30 setup use? That depends on the manifolds. With free-float housings, boost is controlled outside the turbocharger, often by one external wastegate per bank, sometimes by a single gate joined through a crossover. Size the gates for the combined power target and the boost pressure the engine will run.
Which reverse G30 cores take this housing? Garrett lists five: the G30-660, G30-770 and G30-900 reverse-rotation super cores, and the G-Series II G30-725 and G30-825 reverse cores. They share one turbine wheel size, so the housing fits any of them and stays usable if the cores are upgraded to G-Series II later.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
