What housings fit the G30-900 Super Core?

Garrett lists standard-rotation G30 free-float kits in 0.61, 0.83, 1.01 and 1.21 A/R with a V-band inlet, 0.83 and 1.01 A/R with a T3 inlet, and 1.06 A/R with a divided T4 inlet. Garrett also builds assembled G30-900 turbochargers with 0.83 and 1.01 A/R internal wastegate housings.

How much horsepower is the G30-900 Super Core rated for?

The G30-900 Super Core is rated by Garrett at 550 to 900 horsepower on 2.0L to 3.5L engines, the highest rating of any first-generation G30. The figure comes from compressor choke flow and is presented as potential flywheel horsepower, so the result on the dyno depends on the build and its calibration.

What oil supply does it need?

Garrett includes a -4AN oil restrictor fitting with a 1mm orifice and states that it supplies the recommended 40 psi of oil pressure to the turbocharger. Water fittings are included too, two -6AN fittings and two plugs, so the water jacket in the center housing can be plumbed into the cooling system.

Is the G30-900 too big for a 2.0L?

On most 2.0L engines it is a high-output choice rather than a street one. Garrett rates it from 550 horsepower upward, and a 62mm compressor needs plenty of exhaust energy to reach its efficient range. A 2.0L focused on response is better matched to a G30-660 or a G25, while a built 3.0L uses the G30-900 well.

What is the maximum speed?

Garrett lists 145,000 rpm as the maximum allowable speed for the G30-900. Running above that is at the risk of the owner and may lead to premature failure. Fit the Garrett speed sensor kit, sold separately, to the machined port in the compressor housing to keep track of shaft speed.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

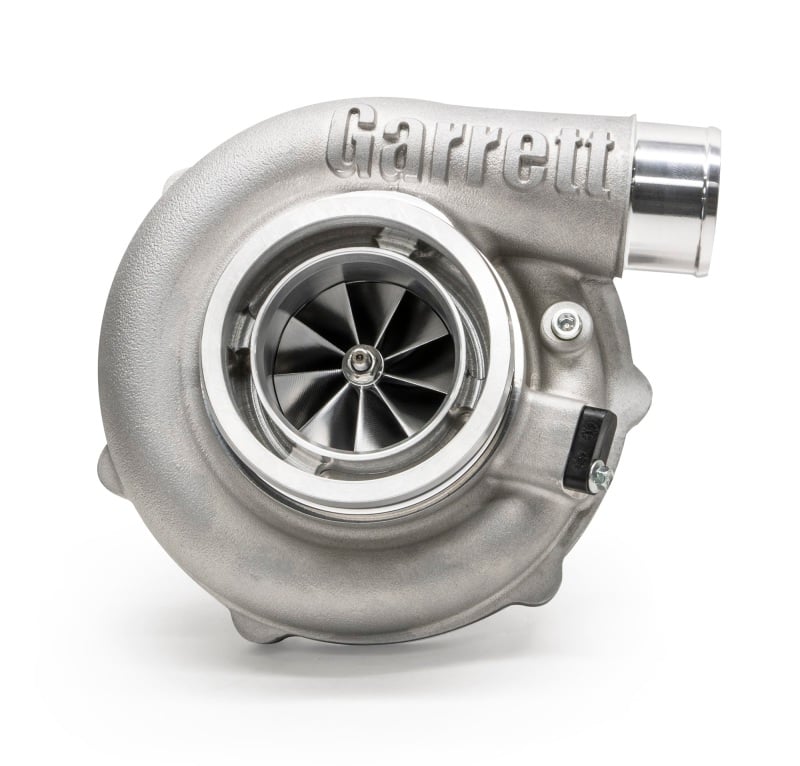

Garrett G30-900 Super Core, 62mm Standard Rotation

Garrett’s G30-900 Super Core is the largest compressor in the first-generation G30 lineup, a 62mm wheel on the 60mm G30 turbine, supplied in standard rotation without a turbine housing. Its Garrett rating of 550 to 900 horsepower on 2.0L to 3.5L is serious output for a compact frame, best suited to a built engine with the fuel and cooling to match. Below about 600 horsepower the smaller G30 compressors make more sense, and an engine over 3.5L will be happier on the G35-900, which carries the same compressor.

Turbine Wheel

The Mar-M turbine wheel is rated to 1050C (1922F), and Garrett states that its new aerodynamics flow 15 to 20 percent more than GTX with a peak efficiency of 74 percent. A V-band joint between the center housing and turbine housing lets a non-wastegated housing sit at any angle through 360 degrees.

Features

62mm compressor wheel, 65 trim, 0.72 A/R compressor housing, 77 percent maximum efficiency
One-piece center housing and backplate with twin piston rings
Fully machined speed sensor and pressure ports
Supplied with a -4AN oil restrictor fitting with a 1mm orifice and water fittings

Specifications

Compressor inducer and exducer: 62mm and 76mm
Compressor trim and A/R: 65 trim, 0.72 A/R
Turbine inducer and exducer: 60mm and 55mm
Turbine trim: 84
Maximum compressor efficiency: 77 percent
Maximum turbocharger speed: 145,000 rpm
Rotation: Standard

What’s Included

G30-900 standard rotation super core with compressor housing fitted
Oil restrictor and water fittings

Applications

The G30-900 Super Core is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 2.0L to 3.5L
Power range: 550 to 900 horsepower (Garrett rating)
Standard-rotation turbine kits: Free float in 0.61, 0.83, 1.01 and 1.21 A/R V-band, 0.83 and 1.01 A/R T3, 1.06 A/R T4 divided; internal wastegate in 0.83 and 1.01 A/R V-band

Notes

The turbine housing is not included; Garrett lists G30 turbine housing kits for standard rotation
The Garrett speed sensor kit is sold separately
Garrett states that running above 145,000 rpm is at the owner’s risk and can cause premature failure

Frequently Asked Questions

What housings fit the G30-900 Super Core? Garrett lists standard-rotation G30 free-float kits in 0.61, 0.83, 1.01 and 1.21 A/R with a V-band inlet, 0.83 and 1.01 A/R with a T3 inlet, and 1.06 A/R with a divided T4 inlet. Garrett also builds assembled G30-900 turbochargers with 0.83 and 1.01 A/R internal wastegate housings.
How much horsepower is the G30-900 Super Core rated for? The G30-900 Super Core is rated by Garrett at 550 to 900 horsepower on 2.0L to 3.5L engines, the highest rating of any first-generation G30. The figure comes from compressor choke flow and is presented as potential flywheel horsepower, so the result on the dyno depends on the build and its calibration.
What oil supply does it need? Garrett includes a -4AN oil restrictor fitting with a 1mm orifice and states that it supplies the recommended 40 psi of oil pressure to the turbocharger. Water fittings are included too, two -6AN fittings and two plugs, so the water jacket in the center housing can be plumbed into the cooling system.
Is the G30-900 too big for a 2.0L? On most 2.0L engines it is a high-output choice rather than a street one. Garrett rates it from 550 horsepower upward, and a 62mm compressor needs plenty of exhaust energy to reach its efficient range. A 2.0L focused on response is better matched to a G30-660 or a G25, while a built 3.0L uses the G30-900 well.
What is the maximum speed? Garrett lists 145,000 rpm as the maximum allowable speed for the G30-900. Running above that is at the risk of the owner and may lead to premature failure. Fit the Garrett speed sensor kit, sold separately, to the machined port in the compressor housing to keep track of shaft speed.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
