Does the G30-900 G-Series CHRA include housings?

No. It is the center housing rotating assembly only, with the compressor wheel, turbine wheel, shaft and bearing system in the center housing. It needs a G30 compressor housing and a G30 turbine housing. Garrett sells the G30-900 with its compressor housing fitted as a super core, and as complete turbochargers.

How much power can the G30-900 support?

Garrett rates the G30-900 G-Series CHRA at 550 to 900 horsepower on 2.0L to 3.5L engines. The rating is calculated from the choke flow of the compressor map and represents potential flywheel horsepower, so the real figure depends on fuel, boost, turbine housing A/R and the calibration.

Is the G30-900 a G-Series II part?

No. The G30-900 belongs to the first-generation G-Series range. The G-Series II G30 options are the G30-725 and G30-825, which use new compressor aerodynamics for up to 10 percent more flow than Gen I at peak pressure ratio. The G30-900 still carries the largest G30 compressor and the highest G30 rating.

Which turbine housing should I run with the G30-900?

Garrett lists standard-rotation G30 turbine kits in 0.61, 0.83, 1.01 and 1.21 A/R with V-band inlets, 0.83 and 1.01 A/R T3 inlets and a 1.06 A/R divided T4. With a compressor this size, the larger A/R options usually suit engines built for high rpm. Check the Garrett flow maps first.

Do I need a speed sensor with this core?

Garrett recommends one. The maximum allowable speed for the G30-900 is 145,000 rpm, and Garrett states that running above it can cause damage and premature failure. The sensor installs in the compressor housing, is sold separately, and lets the tuner keep the shaft inside its map.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

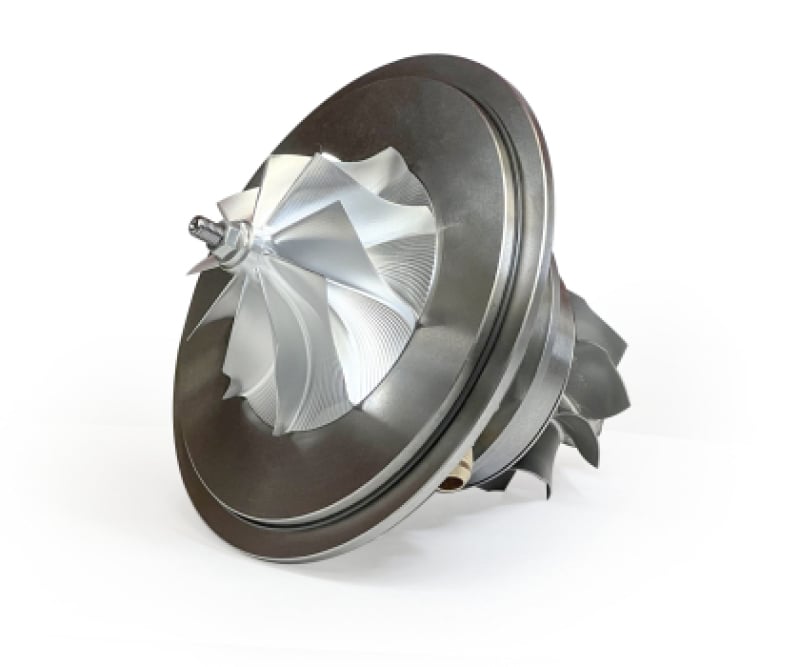

Garrett G30-900 G-Series CHRA, 62mm Compressor

Garrett’s G30-900 G-Series CHRA is the center section of the most powerful G30 turbocharger Garrett lists, pairing a 62mm compressor inducer with the 60mm by 55mm G30 turbine. Garrett rates the G30-900 at 550 to 900 horsepower on 2.0L to 3.5L engines, and the 550 floor makes the point plainly: this is a core for a built engine with the fuel, cam and rpm to fill a big compressor on a mid-frame turbine. For a street car spending most of its time under 500 horsepower, a G30-725 or G30-825 G-Series II core will make boost sooner. This part number is the first-generation G-Series design.

G-Series Design

Garrett quotes a maximum compressor efficiency of 77 percent for the G30-900 and describes new turbine aerodynamics that give higher flow and efficiency. The turbine wheel is Mar-M alloy rated to 1050C (1922F), the same rating Garrett gives its stainless steel G-Series turbine housings.

Features

62mm compressor inducer and 76mm exducer, trim 65
Mar-M alloy turbine wheel with G-Series turbine aerodynamics, trim 84
Runs in the same G30 turbine kits Garrett lists for the G-Series G30 range

Specifications

Compressor inducer and exducer: 62mm and 76mm
Compressor trim: 65
Turbine inducer and exducer: 60mm and 55mm
Turbine trim: 84
Maximum turbocharger speed: 145,000 rpm

Applications

The G30-900 G-Series CHRA is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 2.0L to 3.5L
Power range: 550 to 900 horsepower (Garrett rating)
Garrett G30 turbine kits: V-band, T3 and divided T4 inlet housings from 0.61 to 1.21 A/R in standard rotation, and V-band and T3 housings in reverse rotation

Notes

The compressor housing and turbine housing are not included; Garrett sells the G30-900 as a standard rotation super core and a reverse rotation super core
Garrett does not list this CHRA part number on its G30-900 pages, so confirm rotation with Bulletproof Automotive before ordering
Garrett states that running above 145,000 rpm is at the owner’s risk and can cause premature failure
The Garrett speed sensor kit is sold separately

Frequently Asked Questions

Does the G30-900 G-Series CHRA include housings? No. It is the center housing rotating assembly only, with the compressor wheel, turbine wheel, shaft and bearing system in the center housing. It needs a G30 compressor housing and a G30 turbine housing. Garrett sells the G30-900 with its compressor housing fitted as a super core, and as complete turbochargers.
How much power can the G30-900 support? Garrett rates the G30-900 G-Series CHRA at 550 to 900 horsepower on 2.0L to 3.5L engines. The rating is calculated from the choke flow of the compressor map and represents potential flywheel horsepower, so the real figure depends on fuel, boost, turbine housing A/R and the calibration.
Is the G30-900 a G-Series II part? No. The G30-900 belongs to the first-generation G-Series range. The G-Series II G30 options are the G30-725 and G30-825, which use new compressor aerodynamics for up to 10 percent more flow than Gen I at peak pressure ratio. The G30-900 still carries the largest G30 compressor and the highest G30 rating.
Which turbine housing should I run with the G30-900? Garrett lists standard-rotation G30 turbine kits in 0.61, 0.83, 1.01 and 1.21 A/R with V-band inlets, 0.83 and 1.01 A/R T3 inlets and a 1.06 A/R divided T4. With a compressor this size, the larger A/R options usually suit engines built for high rpm. Check the Garrett flow maps first.
Do I need a speed sensor with this core? Garrett recommends one. The maximum allowable speed for the G30-900 is 145,000 rpm, and Garrett states that running above it can cause damage and premature failure. The sensor installs in the compressor housing, is sold separately, and lets the tuner keep the shaft inside its map.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
