Is the 1.01 A/R G30-825 G-Series II Turbocharger right for a street engine?

Only if the engine is large or revs high. The 1.01 A/R housing on this G30-825 G-Series II Turbocharger favors flow near redline, so boost comes in later. For a street engine used mostly at low and medium rpm, the 0.83 A/R version gives better response with the same compressor.

How much power can the G30-825 make with this housing?

Garrett rates the G30-825 at 475 to 825 horsepower, calculated from compressor choke flow as potential flywheel horsepower. The 1.01 A/R housing gives an engine the best route toward the top of that range, provided fuel, intercooling and calibration are built to match.

Should I choose the G30-825 or the G30-900?

The G30-825 is G-Series II with a 58mm compressor and a 475 to 825 horsepower rating. The first-generation G30-900 has a 62mm compressor rated 550 to 900 horsepower. Choose the G30-825 for a wider operating range, and the G30-900 only when the target is clearly above 800 horsepower.

Can I fit an external wastegate instead?

Not to this housing, which is internally wastegated. Garrett offers the G30-825 as a super core and sells free-float G30 turbine housings in V-band, T3 and divided T4 inlets for external wastegate builds. Those are a separate purchase from this complete turbocharger.

What do I need besides the turbo?

Garrett supplies this G30-825 assembled with its actuator, an oil restrictor and water fittings. The installer still needs a V-band manifold flange, a downpipe, oil and coolant lines, intake plumbing and a calibration. A speed sensor kit is recommended to keep shaft speed under 140,000 rpm.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

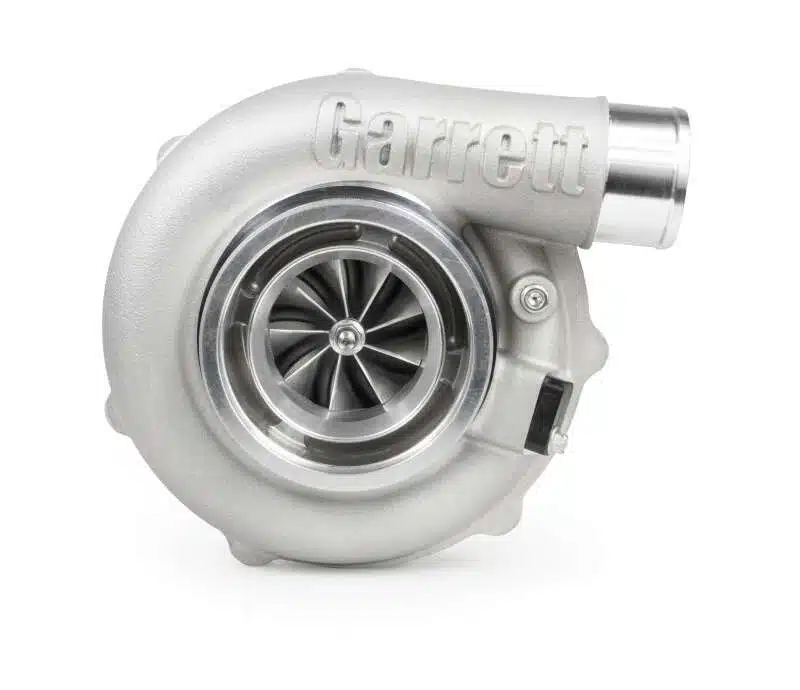

Garrett G30-825 G-Series II Turbocharger, 1.01 A/R V-Band Internal Wastegate

Garrett’s G30-825 G-Series II Turbocharger with the 1.01 A/R housing is the high-flow complete G30-825, with the 58mm compressor, the 60mm G30 turbine and a V-band internal wastegate housing calibrated by Garrett with a 0.5 bar actuator. Its Garrett rating spans 475 to 825 horsepower for 2.0L to 3.5L engines. The 1.01 A/R housing helps a 3.0L to 3.5L engine, or a high revving 2.0L, reach the upper half of that rating. A street engine that spends most of its time below 4,000 rpm will feel the slower spool and is better on the 0.83 A/R version.

Features

Larger 1.01 A/R internal wastegate housing for lower back pressure at high rpm
V-band joints at the turbine inlet and outlet
Mar-M alloy turbine wheel rated by Garrett to 1050C (1922F)

Specifications

Garrett turbo reference: 5855
Compressor inducer and exducer: 58mm and 71mm
Turbine inducer and exducer: 60mm and 55mm
Turbine housing: 1.01 A/R, V-band inlet and outlet
Wastegate actuator: 0.5 bar
Maximum turbocharger speed: 140,000 rpm
Rotation: Standard

What’s Included

G30-825 G-Series II turbocharger with 1.01 A/R internal wastegate housing and actuator
Oil restrictor and water fittings

Applications

The G30-825 G-Series II Turbocharger is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 2.0L to 3.5L
Power range: 475 to 825 horsepower (Garrett rating)

Notes

A 0.83 A/R version is available for quicker spool
The Garrett speed sensor kit is sold separately
Garrett states that running above 140,000 rpm is at the owner’s risk and can cause damage and premature failure
Garrett lists free-float G30 housings from 0.61 to 1.21 A/R for builders who prefer an external wastegate

Frequently Asked Questions

Is the 1.01 A/R G30-825 G-Series II Turbocharger right for a street engine? Only if the engine is large or revs high. The 1.01 A/R housing on this G30-825 G-Series II Turbocharger favors flow near redline, so boost comes in later. For a street engine used mostly at low and medium rpm, the 0.83 A/R version gives better response with the same compressor.
How much power can the G30-825 make with this housing? Garrett rates the G30-825 at 475 to 825 horsepower, calculated from compressor choke flow as potential flywheel horsepower. The 1.01 A/R housing gives an engine the best route toward the top of that range, provided fuel, intercooling and calibration are built to match.
Should I choose the G30-825 or the G30-900? The G30-825 is G-Series II with a 58mm compressor and a 475 to 825 horsepower rating. The first-generation G30-900 has a 62mm compressor rated 550 to 900 horsepower. Choose the G30-825 for a wider operating range, and the G30-900 only when the target is clearly above 800 horsepower.
Can I fit an external wastegate instead? Not to this housing, which is internally wastegated. Garrett offers the G30-825 as a super core and sells free-float G30 turbine housings in V-band, T3 and divided T4 inlets for external wastegate builds. Those are a separate purchase from this complete turbocharger.
What do I need besides the turbo? Garrett supplies this G30-825 assembled with its actuator, an oil restrictor and water fittings. The installer still needs a V-band manifold flange, a downpipe, oil and coolant lines, intake plumbing and a calibration. A speed sensor kit is recommended to keep shaft speed under 140,000 rpm.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
