Why choose the 1.01 A/R G30-725 G-Series II Turbocharger?

Choose it when the engine is large for the G30-725 or makes its power high in the rev range. The 1.01 A/R housing on this G30-725 G-Series II Turbocharger reduces exhaust back pressure at high rpm. It gives up some low-speed response compared with the 0.83 A/R version.

What is the Garrett power rating for the G30-725?

Garrett lists 350 to 725 horsepower for engines from 2.0L to 3.5L. The rating is derived from compressor choke flow and stands for potential flywheel horsepower. A 1.01 A/R build is better placed to approach the top of it than a 0.83 A/R build on the same engine.

How does the G30-725 differ from the G30-825?

Both use the 60mm by 55mm G30 turbine wheel. The G30-725 has a 54mm compressor inducer and the G30-825 a 58mm inducer, so the G30-825 moves more air at the top end, while the smaller G30-725 compressor reaches boost sooner and suits engines targeting less peak power.

Yes. Garrett states that a calibration is required to take advantage of the increased G-Series II compressor flow. Any turbocharger change of this size also alters airflow, fuel demand and boost behavior, so the engine management must be revised before the engine is run hard.

What is the maximum turbine shaft speed?

Garrett lists a maximum allowable turbocharger speed of 160,000 rpm for the G30-725. Above that speed, operation is at the risk of the owner and may cause damage and early failure. A Garrett speed sensor in the compressor housing lets the tuner monitor it.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

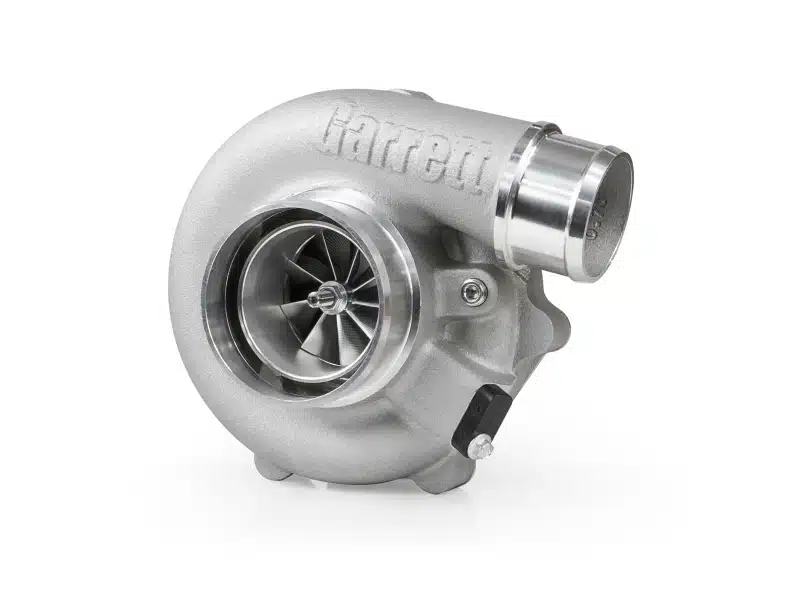

Garrett G30-725 G-Series II Turbocharger, 1.01 A/R V-Band Internal Wastegate

Garrett’s G30-725 G-Series II Turbocharger with the 1.01 A/R housing gives the 54mm G30-725 more room to breathe at high rpm, using a V-band internal wastegate turbine housing and an actuator set by Garrett at 0.5 bar. Garrett rates the G30-725 at 350 to 725 horsepower on 2.0L to 3.5L engines. The larger housing is the better fit for a 3.0L to 3.5L six, or a smaller engine that revs hard and needs low exhaust back pressure near redline. Where boost has to arrive early on a street engine, the 0.83 A/R version is the safer choice.

Features

1.01 A/R internal wastegate housing, the larger of the two G30-725 turbo options
V-band inlet and outlet joints that can be clocked to suit the installation
Mar-M alloy turbine wheel and stainless steel housing, both rated by Garrett to 1050C (1922F)
Oil restrictor and water fittings supplied

Specifications

Garrett turbo reference: 5455
Compressor inducer and exducer: 54mm and 67mm
Turbine inducer and exducer: 60mm and 55mm
Turbine housing: 1.01 A/R, V-band inlet and outlet
Wastegate actuator: 0.5 bar
Maximum turbocharger speed: 160,000 rpm
Rotation: Standard

What’s Included

G30-725 G-Series II turbocharger with 1.01 A/R internal wastegate housing and actuator
Oil restrictor and water fittings

Applications

The G30-725 G-Series II Turbocharger is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 2.0L to 3.5L
Power range: 350 to 725 horsepower (Garrett rating)

Notes

A 0.83 A/R version of this turbo is also available
The Garrett speed sensor kit is sold separately
Garrett states that running above 160,000 rpm is at the owner’s risk and can cause damage and premature failure
Boost arrives later than with the 0.83 A/R housing, so match the choice to the rev range

Frequently Asked Questions

Why choose the 1.01 A/R G30-725 G-Series II Turbocharger? Choose it when the engine is large for the G30-725 or makes its power high in the rev range. The 1.01 A/R housing on this G30-725 G-Series II Turbocharger reduces exhaust back pressure at high rpm. It gives up some low-speed response compared with the 0.83 A/R version.
What is the Garrett power rating for the G30-725? Garrett lists 350 to 725 horsepower for engines from 2.0L to 3.5L. The rating is derived from compressor choke flow and stands for potential flywheel horsepower. A 1.01 A/R build is better placed to approach the top of it than a 0.83 A/R build on the same engine.
How does the G30-725 differ from the G30-825? Both use the 60mm by 55mm G30 turbine wheel. The G30-725 has a 54mm compressor inducer and the G30-825 a 58mm inducer, so the G30-825 moves more air at the top end, while the smaller G30-725 compressor reaches boost sooner and suits engines targeting less peak power.
Do I need a tune? Yes. Garrett states that a calibration is required to take advantage of the increased G-Series II compressor flow. Any turbocharger change of this size also alters airflow, fuel demand and boost behavior, so the engine management must be revised before the engine is run hard.
What is the maximum turbine shaft speed? Garrett lists a maximum allowable turbocharger speed of 160,000 rpm for the G30-725. Above that speed, operation is at the risk of the owner and may cause damage and early failure. A Garrett speed sensor in the compressor housing lets the tuner monitor it.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
