Which housings fit the G30-725 G-Series II Super Core in reverse rotation?

Garrett lists six reverse-rotation G30 turbine kits, all free float: 0.61, 0.83, 1.01 and 1.21 A/R with a V-band inlet, and 0.83 and 1.01 A/R with a T3 inlet. All use a V-band outlet. Standard-rotation housings are not interchangeable, according to Garrett.

Do I need an external wastegate?

Yes. Because every reverse G30 housing Garrett offers is free float, there is no internal wastegate option for this core, and boost control has to come from an external wastegate on the exhaust manifold. Plan the manifold around that before buying the core.

What power does the G30-725 G-Series II Super Core support?

Garrett lists the G30-725 G-Series II Super Core at 350 to 725 horsepower on 2.0L to 3.5L engines. Garrett calculates the figure from compressor choke flow, so it is a potential flywheel number, and it requires a calibration written to use the additional flow of the second-generation compressor.

Can I upgrade a reverse G30-660 to this core?

Yes. G-Series II was designed as a direct upgrade path for first-generation owners, using the same compressor and turbine housings. A reverse-rotation G30-660 owner can swap to this super core, or to the reverse G30-725 CHRA if the existing compressor cover is staying, and keep the turbine housing in place.

What is the speed limit?

The maximum allowable speed Garrett publishes for the G30-725 is 160,000 rpm. Going above it is at the risk of the owner and can cause premature failure. Garrett sells speed sensor kits separately, and a sensor in the compressor housing lets the tuner see how close each turbocharger runs to that figure.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

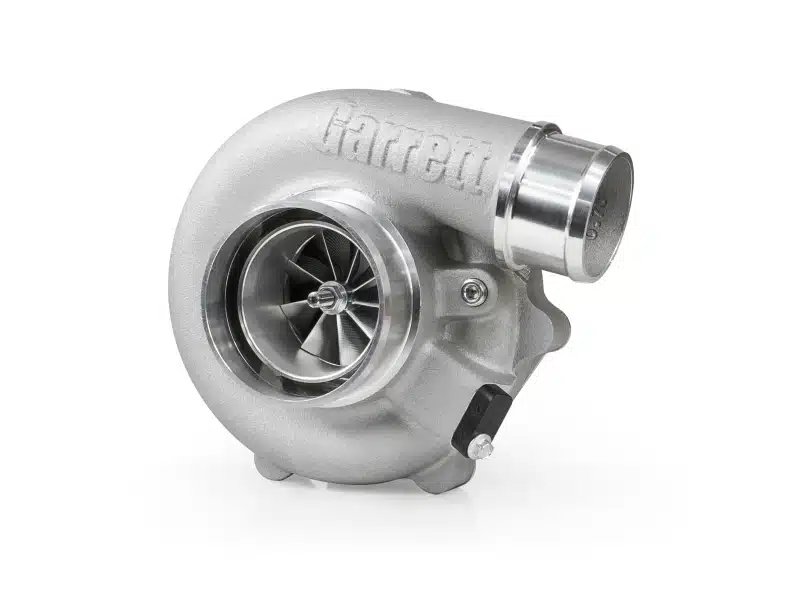

Garrett G30-725 G-Series II Super Core, 54mm Reverse Rotation

Garrett’s G30-725 G-Series II Super Core in reverse rotation is built for twin-turbo and mirrored G30 installs, carrying the 54mm second-generation compressor on a center section that turns opposite to the standard unit. Garrett rates the G30-725 at 350 to 725 horsepower from 2.0L to 3.5L. Every reverse-rotation G30 turbine housing Garrett lists is free float, so this core goes on an exhaust with an external wastegate; an internally gated single-turbo setup needs the standard version.

What Carries Over

G-Series II keeps the first-generation G30 compressor and turbine housing contours, so an existing reverse G30 setup can move to this core without new housings or plumbing. Garrett quotes 74 percent peak efficiency for the Mar-M turbine wheel, rated for exhaust gas up to 1050C (1922F).

Features

Reverse-rotation center section with 54mm G-Series II compressor wheel
Twin piston rings on both sides of the shaft and a one-piece center housing
Compressor housing accepts the Garrett speed sensor
Oil restrictor and water fittings included

Specifications

Garrett turbo reference: 5455
Compressor inducer and exducer: 54mm and 67mm
Turbine inducer and exducer: 60mm and 55mm
Maximum turbocharger speed: 160,000 rpm
Rotation: Reverse

What’s Included

G30-725 G-Series II reverse rotation super core with compressor housing fitted
Oil restrictor and water fittings

Applications

The G30-725 G-Series II Super Core is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 2.0L to 3.5L
Power range: 350 to 725 horsepower (Garrett rating)
Reverse-rotation turbine kits: Free float only, in 0.61, 0.83, 1.01 and 1.21 A/R V-band and 0.83 and 1.01 A/R T3

Notes

The turbine housing is not included; Garrett lists G30 turbine housing kits in reverse rotation
Every turbine housing Garrett lists for this core is free float, so an external wastegate is required
Garrett states that reverse-rotation turbine housings are not interchangeable with standard-rotation housings
The Garrett speed sensor kit is sold separately
Garrett states that running above 160,000 rpm is at the owner’s risk and can cause premature failure
A calibration is required to turn the extra compressor flow into more power

Frequently Asked Questions

Which housings fit the G30-725 G-Series II Super Core in reverse rotation? Garrett lists six reverse-rotation G30 turbine kits, all free float: 0.61, 0.83, 1.01 and 1.21 A/R with a V-band inlet, and 0.83 and 1.01 A/R with a T3 inlet. All use a V-band outlet. Standard-rotation housings are not interchangeable, according to Garrett.
Do I need an external wastegate? Yes. Because every reverse G30 housing Garrett offers is free float, there is no internal wastegate option for this core, and boost control has to come from an external wastegate on the exhaust manifold. Plan the manifold around that before buying the core.
What power does the G30-725 G-Series II Super Core support? Garrett lists the G30-725 G-Series II Super Core at 350 to 725 horsepower on 2.0L to 3.5L engines. Garrett calculates the figure from compressor choke flow, so it is a potential flywheel number, and it requires a calibration written to use the additional flow of the second-generation compressor.
Can I upgrade a reverse G30-660 to this core? Yes. G-Series II was designed as a direct upgrade path for first-generation owners, using the same compressor and turbine housings. A reverse-rotation G30-660 owner can swap to this super core, or to the reverse G30-725 CHRA if the existing compressor cover is staying, and keep the turbine housing in place.
What is the speed limit? The maximum allowable speed Garrett publishes for the G30-725 is 160,000 rpm. Going above it is at the risk of the owner and can cause premature failure. Garrett sells speed sensor kits separately, and a sensor in the compressor housing lets the tuner see how close each turbocharger runs to that figure.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
