Which engines suit the 0.92 A/R reverse G25 Wastegate Turbine Housing?

Twin-turbo engines where each G25 has to flow a lot of exhaust at high rpm, such as a larger V6 or V8 aimed at the upper part of the G25 power range. This G25 Wastegate Turbine Housing gives up some low-speed boost in return for lower back pressure near the redline.

Can I use this housing on a single turbo build?

Only if that build calls for a reverse-rotation core. Garrett offers single reverse rotation turbochargers for installations with packaging restrictions, and this housing suits one of those. For a typical single-turbo engine with room for a standard unit, the standard 0.92 A/R internal wastegate housing, part 740902-0077, is the correct part.

What happens if I mix 0.92 and 0.72 A/R housings on a twin setup?

The two turbochargers would see different exhaust restriction, so one bank would build boost sooner than the other and the pair would be harder to balance and calibrate. Running the 0.92 A/R reverse housing alongside the standard 0.92 A/R housing, part 740902-0077, keeps both sides matched.

Does it fit the G-Series II reverse rotation cores?

Yes. Garrett lists it for the G-Series II G25-585 and G25-700 reverse-rotation super cores, part numbers 934114-5001S and 934114-5002S, and for the first-generation reverse G25-550 and G25-660. G-Series II kept the Gen I turbine housings, so the housing stays in service through a core upgrade.

What material is the housing?

Stainless steel. Garrett makes every G-Series turbine housing from it and rates the material to 1050 degrees Celsius, the same limit it gives the Mar-M turbine wheel. That headroom matters on twin-turbo engines, where each housing sits close to the head and sees sustained heat under load.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

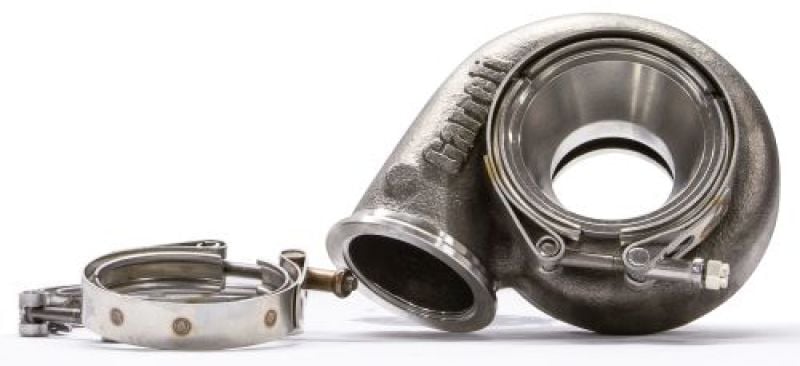

Garrett G25 Wastegate Turbine Housing, 0.92 A/R V-Band Reverse Rotation

Garrett’s G25 Wastegate Turbine Housing in 0.92 A/R reverse rotation is the high-flow, internally gated housing for reverse G25 cores, with V-band flanges at both ends and a stainless casting. Garrett lists part 740902-0079 for the reverse-rotation G25-550 and G25-660 and the G-Series II G25-585 and G25-700. On a twin-turbo engine above 3.0L in total, where each turbocharger feeds half the cylinders at high rpm, the larger A/R keeps exhaust back pressure down. A small single-turbo engine has no use for it; reverse rotation and the slower spool of a 0.92 A/R both work against that build.

Flow for the Top End

The 0.92 A/R is the largest housing Garrett offers on a reverse G25, and it routes exhaust to the 54mm turbine wheel with less restriction than the 0.72 A/R. That costs some response low in the rev range in exchange for easier breathing near peak power. The wastegate port is cast into the housing, made as large as Garrett could fit to fight boost creep.

Features

0.92 A/R for lower back pressure at high rpm
Reverse-rotation volute for a mirrored G25 pair
Internal wastegate port in the stainless casting, rated to 1050C (1922F)

Specifications

Garrett part number: 740902-0079
A/R: 0.92
Turbine inlet and outlet: V-band and V-band
Wastegate: Internal
Rotation: Reverse
Material: Stainless steel, rated to 1050C (1922F)

Applications

Garrett lists this G25 Wastegate Turbine Housing for these reverse-rotation super cores:

Garrett G25-550 Reverse Rotation: 871388-5001S
Garrett G25-585 G-Series II Reverse Rotation: 934114-5001S
Garrett G25-660 Reverse Rotation: 871388-5002S
Garrett G25-700 G-Series II Reverse Rotation: 934114-5002S

Notes

Garrett does not publish the contents of this turbine kit or whether an actuator is supplied; contact us to confirm before ordering
A standard-rotation G25 core needs the standard 0.92 A/R internal wastegate housing, part 740902-0077
The turbocharger core is sold separately; see the G25 range
For quicker spool on a reverse core, Garrett lists the 0.72 A/R version as part 740902-0078

Frequently Asked Questions

Which engines suit the 0.92 A/R reverse G25 Wastegate Turbine Housing? Twin-turbo engines where each G25 has to flow a lot of exhaust at high rpm, such as a larger V6 or V8 aimed at the upper part of the G25 power range. This G25 Wastegate Turbine Housing gives up some low-speed boost in return for lower back pressure near the redline.
Can I use this housing on a single turbo build? Only if that build calls for a reverse-rotation core. Garrett offers single reverse rotation turbochargers for installations with packaging restrictions, and this housing suits one of those. For a typical single-turbo engine with room for a standard unit, the standard 0.92 A/R internal wastegate housing, part 740902-0077, is the correct part.
What happens if I mix 0.92 and 0.72 A/R housings on a twin setup? The two turbochargers would see different exhaust restriction, so one bank would build boost sooner than the other and the pair would be harder to balance and calibrate. Running the 0.92 A/R reverse housing alongside the standard 0.92 A/R housing, part 740902-0077, keeps both sides matched.
Does it fit the G-Series II reverse rotation cores? Yes. Garrett lists it for the G-Series II G25-585 and G25-700 reverse-rotation super cores, part numbers 934114-5001S and 934114-5002S, and for the first-generation reverse G25-550 and G25-660. G-Series II kept the Gen I turbine housings, so the housing stays in service through a core upgrade.
What material is the housing? Stainless steel. Garrett makes every G-Series turbine housing from it and rates the material to 1050 degrees Celsius, the same limit it gives the Mar-M turbine wheel. That headroom matters on twin-turbo engines, where each housing sits close to the head and sees sustained heat under load.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
