Which cores fit the G25 Wastegate Turbine Housing in 0.72 A/R?

Garrett lists four standard-rotation cores for it: the G25-550 and G25-660, and the G-Series II G25-585 and G25-700. All four use the G25 turbine wheel with a 54mm inducer and 49mm exducer, so one housing covers the family, and an owner who later moves to a G-Series II core keeps it.

Do I still need an external wastegate?

No. This housing has its own wastegate port, so boost is controlled at the turbine housing and the exhaust manifold does not need a separate gate. Garrett made the port as large as the design allows to keep boost creep down, which helps most on engines that run modest boost targets.

How does the 0.72 A/R compare with the 0.49 and 0.92 options?

It sits between them. The 0.49 A/R T25 housing builds boost soonest on small engines but runs out of flow first, while the 0.92 A/R breathes better at high rpm on larger engines at the cost of later spool. The 0.72 G25 Wastegate Turbine Housing is the usual starting point when neither extreme fits.

What comes with this housing?

Garrett does not list the contents of its turbine kits on the product pages. Its assembled G25 turbochargers are calibrated with a 0.5 bar actuator, but that statement covers the complete turbo part numbers only. Contact Bulletproof Automotive before ordering and we will confirm with Garrett exactly what ships in the box.

Can I fit this housing to a reverse rotation G25?

No. This is the standard-rotation housing and Garrett lists it only for standard-rotation cores. A reverse-rotation G25 core takes the matching 0.72 A/R V-band internal wastegate housing, part 740902-0078, which is normally chosen for mirrored twin-turbo pairs or for engine bays with tight packaging.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

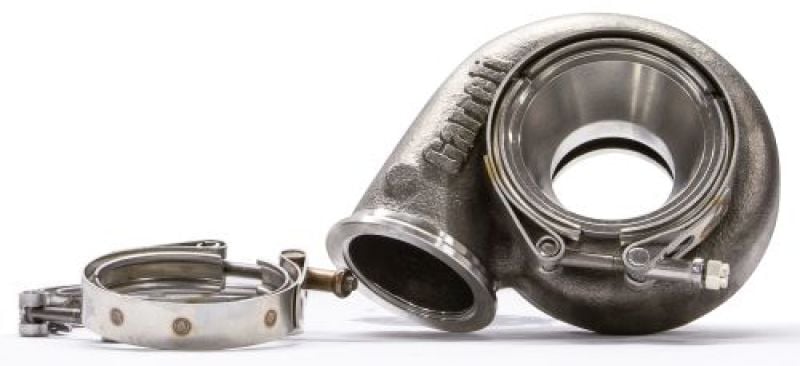

Garrett G25 Wastegate Turbine Housing, 0.72 A/R V-Band

Garrett’s G25 Wastegate Turbine Housing in 0.72 A/R is the internally gated exhaust housing for standard-rotation G25 cores, cast in stainless steel with a V-band inlet and a V-band outlet. Garrett lists part 740902-0076 for the G25-550, G25-660 and the G-Series II G25-585 and G25-700, and the same A/R and flange layout appears on its assembled 0.72 A/R G25 turbochargers. It suits a 2.0L to 2.5L build that wants boost control inside the housing and an even split between response and top-end flow. A manifold that already carries an external wastegate is better served by a free-float housing.

Wastegate Design

Garrett describes its internally wastegated G-Series housings as compact and efficient, with the largest wastegate port it could design in, to cut boost creep and steady boost control. The casting is stainless steel rated to 1050C (1922F), and since G-Series II kept the first-generation housings, this one serves both generations of G25 core.

Features

Internal wastegate port, so the exhaust manifold needs no separate gate
V-band inlet and V-band outlet for clamp joints at the manifold and downpipe
0.72 A/R, the middle of the three internal wastegate sizes Garrett offers for the G25

Specifications

Garrett part number: 740902-0076
A/R: 0.72
Turbine inlet and outlet: V-band and V-band
Wastegate: Internal
Rotation: Standard
Material: Stainless steel, rated to 1050C (1922F)

Applications

Garrett lists this G25 Wastegate Turbine Housing for these standard-rotation super cores:

Garrett G25-550: 858161-5002S
Garrett G25-585 G-Series II: 934075-5001S
Garrett G25-660: 858161-5003S
Garrett G25-700 G-Series II: 934075-5002S

Notes

Garrett does not publish the contents of this turbine kit or whether an actuator is supplied; contact us to confirm before ordering
The G25 super core is sold separately
Standard rotation only; the reverse-rotation version of this housing is part 740902-0078
Garrett also lists this internal wastegate layout in 0.92 A/R, part 740902-0077, and 0.49 A/R T25, part 740902-0080

Frequently Asked Questions

Which cores fit the G25 Wastegate Turbine Housing in 0.72 A/R? Garrett lists four standard-rotation cores for it: the G25-550 and G25-660, and the G-Series II G25-585 and G25-700. All four use the G25 turbine wheel with a 54mm inducer and 49mm exducer, so one housing covers the family, and an owner who later moves to a G-Series II core keeps it.
Do I still need an external wastegate? No. This housing has its own wastegate port, so boost is controlled at the turbine housing and the exhaust manifold does not need a separate gate. Garrett made the port as large as the design allows to keep boost creep down, which helps most on engines that run modest boost targets.
How does the 0.72 A/R compare with the 0.49 and 0.92 options? It sits between them. The 0.49 A/R T25 housing builds boost soonest on small engines but runs out of flow first, while the 0.92 A/R breathes better at high rpm on larger engines at the cost of later spool. The 0.72 G25 Wastegate Turbine Housing is the usual starting point when neither extreme fits.
What comes with this housing? Garrett does not list the contents of its turbine kits on the product pages. Its assembled G25 turbochargers are calibrated with a 0.5 bar actuator, but that statement covers the complete turbo part numbers only. Contact Bulletproof Automotive before ordering and we will confirm with Garrett exactly what ships in the box.
Can I fit this housing to a reverse rotation G25? No. This is the standard-rotation housing and Garrett lists it only for standard-rotation cores. A reverse-rotation G25 core takes the matching 0.72 A/R V-band internal wastegate housing, part 740902-0078, which is normally chosen for mirrored twin-turbo pairs or for engine bays with tight packaging.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
