When should I choose the 0.92 A/R G25 Turbine Housing Kit over the 0.72?

Choose the 0.92 A/R when the engine is large for the G25 range or makes its power at high rpm. This G25 Turbine Housing Kit lowers exhaust back pressure near peak power, while the 0.72 A/R brings boost in sooner. Smaller engines used mostly in the mid-range usually suit the 0.72 better.

Will an external wastegate be required?

Yes. A free-float housing has no wastegate port, so all exhaust gas passes through the turbine wheel and boost must be controlled by an external wastegate mounted on the exhaust manifold. Without one the turbocharger has no way to limit boost. Garrett sells GVW external wastegates for this purpose.

Can the housing be rotated to line up with my downpipe?

Yes. Garrett states that the V-band connection between the G-Series center housing and its non-wastegated turbine housings allows 360 degree orientation. Because this is a free-float housing, it can be clocked to whatever angle suits the manifold flange and the downpipe route before the clamp is tightened.

How does this differ from the 0.92 A/R internal wastegate G25 housing?

Both share the 0.92 A/R and V-band flanges, but this free-float housing has no wastegate port, so it needs an external gate on the manifold. The internal wastegate version, part 740902-0077, carries its own port. Choose this one if the manifold already has an external wastegate flange.

Is this the standard rotation G25 housing?

Yes. Part 740902-0068 is the standard-rotation 0.92 A/R free-float housing, and Garrett lists it for standard-rotation cores only. Reverse rotation G25 cores use their own free-float housings, which Garrett lists under separate part numbers in 0.72 and 0.92 A/R for mirrored twin-turbo builds.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

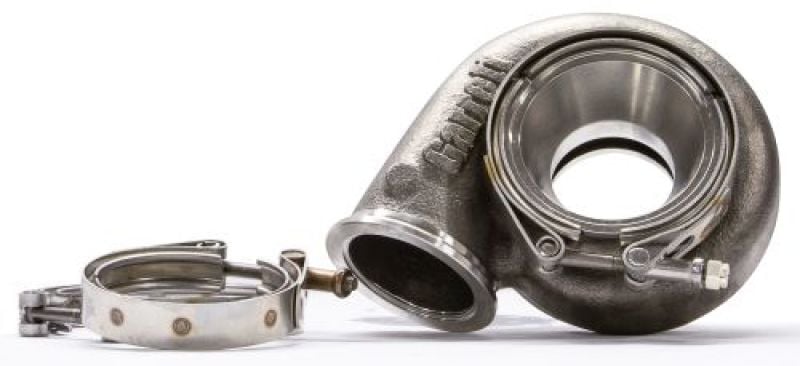

Garrett G25 Turbine Housing Kit, 0.92 A/R V-Band Free Float

Garrett’s G25 Turbine Housing Kit in 0.92 A/R is the larger of the two free-float housings for standard-rotation G25 cores, a stainless steel casting with V-band inlet and outlet and no wastegate of its own. Garrett lists part 740902-0068 for the G25-550, G25-660 and the G-Series II G25-585 and G25-700. It is meant for an engine with an external wastegate on the manifold that wants its G25 to breathe freely at high rpm, typically a 2.5L to 3.0L build or a smaller engine revved hard. If quick spool matters more than peak flow, the 0.72 A/R free-float housing, part 740902-0069, is the better choice.

Free Float Layout

With no internal wastegate, all exhaust flow goes through the turbine, and boost is held by an external gate ahead of the turbocharger. Garrett states that the V-band joint between the center housing and its non-wastegated turbine housings allows 360 degree orientation, so the inlet and outlet can be clocked to suit the manifold and downpipe.

Features

Free-float housing for external wastegate control
Clockable through 360 degrees on the center housing V-band joint, per Garrett
0.92 A/R, the high-flow choice of the two G25 free-float sizes
Stainless steel rated to 1050C (1922F)

Specifications

Garrett part number: 740902-0068
A/R: 0.92
Turbine inlet and outlet: V-band and V-band
Wastegate: External (free float)
Rotation: Standard
Material: Stainless steel, rated to 1050C (1922F)

Applications

Garrett lists this G25 Turbine Housing Kit for these standard-rotation super cores:

Garrett G25-550: 858161-5002S
Garrett G25-585 G-Series II: 934075-5001S
Garrett G25-660: 858161-5003S
Garrett G25-700 G-Series II: 934075-5002S

Notes

An external wastegate is required, because this housing has no internal wastegate
The G25 super core is sold separately
Garrett lists the reverse-rotation free-float G25 housings separately; this part is standard rotation
Garrett does not publish the contents of this turbine kit; contact us to confirm before ordering

Frequently Asked Questions

When should I choose the 0.92 A/R G25 Turbine Housing Kit over the 0.72? Choose the 0.92 A/R when the engine is large for the G25 range or makes its power at high rpm. This G25 Turbine Housing Kit lowers exhaust back pressure near peak power, while the 0.72 A/R brings boost in sooner. Smaller engines used mostly in the mid-range usually suit the 0.72 better.
Will an external wastegate be required? Yes. A free-float housing has no wastegate port, so all exhaust gas passes through the turbine wheel and boost must be controlled by an external wastegate mounted on the exhaust manifold. Without one the turbocharger has no way to limit boost. Garrett sells GVW external wastegates for this purpose.
Can the housing be rotated to line up with my downpipe? Yes. Garrett states that the V-band connection between the G-Series center housing and its non-wastegated turbine housings allows 360 degree orientation. Because this is a free-float housing, it can be clocked to whatever angle suits the manifold flange and the downpipe route before the clamp is tightened.
How does this differ from the 0.92 A/R internal wastegate G25 housing? Both share the 0.92 A/R and V-band flanges, but this free-float housing has no wastegate port, so it needs an external gate on the manifold. The internal wastegate version, part 740902-0077, carries its own port. Choose this one if the manifold already has an external wastegate flange.
Is this the standard rotation G25 housing? Yes. Part 740902-0068 is the standard-rotation 0.92 A/R free-float housing, and Garrett lists it for standard-rotation cores only. Reverse rotation G25 cores use their own free-float housings, which Garrett lists under separate part numbers in 0.72 and 0.92 A/R for mirrored twin-turbo builds.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
