Is the G25-700 G-Series II Turbocharger ready to install?

Yes. This part number is a complete turbocharger, assembled and calibrated by Garrett with a 0.5 bar actuator, and it ships with a gasket kit, an oil restrictor and water fittings. The owner still needs a V-band manifold flange, oil and water lines, and a calibration for the new turbocharger.

How much power can the G25-700 make?

Garrett rates the G25-700 G-Series II Turbocharger at 350 to 700 horsepower on engines from 1.4L to 3.0L. The rating comes from the choke flow of the compressor map and represents potential flywheel horsepower, so fuel, boost, intercooling and the calibration decide where an engine lands.

What is the difference between G-Series and G-Series II?

G-Series II has new compressor aerodynamics with up to 10 percent more flow at peak pressure ratio and turbo speed, a one-piece center housing with an integrated backplate, twin piston rings on both sides of the shaft and a new Mar-M turbine wheel. The housings are shared with the first generation.

Which turbine housing A/R should I choose for the G25-700?

The 0.49 A/R T25 housing favors spool on smaller engines, the 0.92 A/R favors top-end flow on larger or higher-revving engines, and this 0.72 A/R sits between them. Match the A/R to displacement and the rpm range the car uses, and check the choice against the Garrett flow maps.

Can I upgrade my first-generation G25 to G-Series II?

Yes. Because G-Series II uses the first-generation compressor and turbine housings, a G25 owner can fit a G-Series II CHRA and keep the existing housings. This complete turbocharger suits a new build, or a car moving up from a different frame size.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

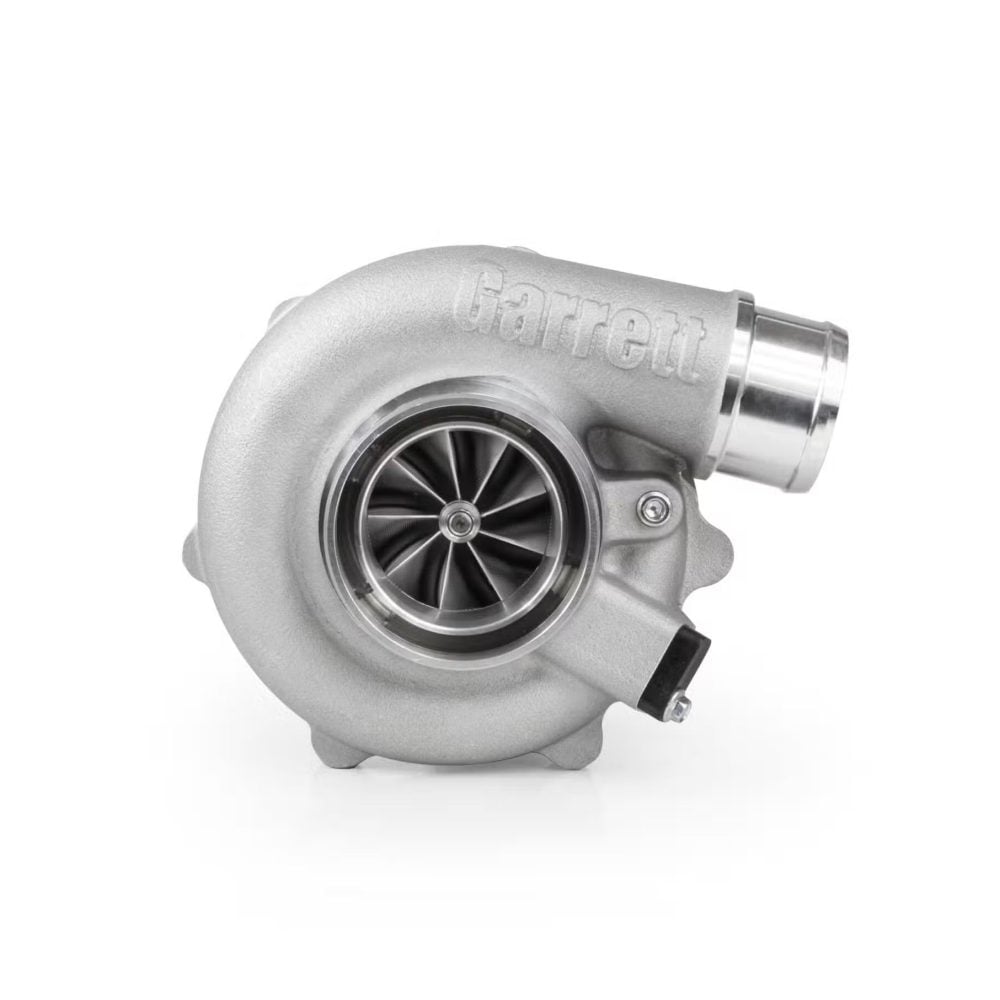

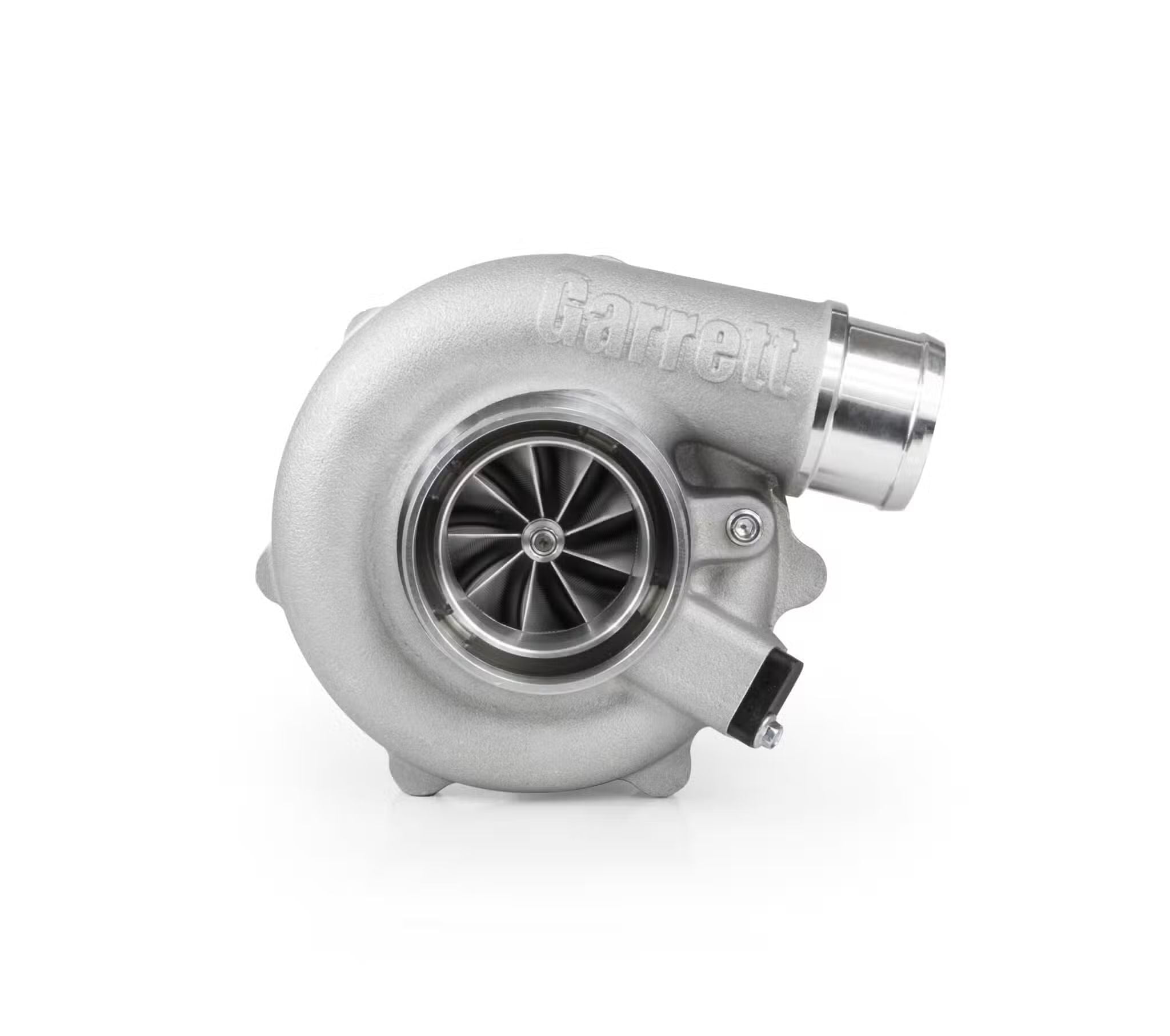

Garrett G25-700 G-Series II Turbocharger, 0.72 A/R V-Band Internal Wastegate

Garrett’s G25-700 G-Series II Turbocharger is the largest compressor in Garrett’s G25 frame, a 54mm inducer wheel matched to a Mar-M superalloy turbine and a 0.72 A/R stainless steel housing with V-band inlet and outlet and an internal wastegate. Garrett assembles and calibrates it with a 0.5 bar actuator, so it goes onto the manifold as one part. Rated at 350 to 700 horsepower on engines from 1.4L to 3.0L, it suits a built four-cylinder or a small six that needs top-end flow without the lag of a G30 frame. For a bolt-on car it is oversized; for a fuel-system build chasing 600 horsepower it is the G25 to choose.

Development and Testing

G-Series II gives up to 10 percent more compressor flow than the first-generation G25 at peak pressure ratio and turbo speed. The center housing is one piece with an integrated backplate, and a shorter bearing cartridge leaves room for twin piston rings on both sides of the shaft. The new turbine wheel is Mar-M superalloy rated to 1050C (1922F), with a quoted 74 percent peak efficiency.

Features

Assembled and calibrated by Garrett, ready to bolt to a V-band manifold flange
Internal wastegate with a larger port in the G-Series II housing for steadier boost control
Uses first-generation G25 housing contours, so piping and mounts carry over

Specifications

Garrett turbo reference: 5449
Compressor inducer and exducer: 54mm and 67mm
Turbine inducer and exducer: 54mm and 49mm
Turbine housing: 0.72 A/R stainless steel, V-band inlet and outlet
Wastegate actuator: 0.5 bar
Maximum turbocharger speed: 160,000 rpm
Rotation: Standard

What’s Included

G25-700 G-Series II turbocharger with internal wastegate housing and actuator
Oil restrictor and water fittings
Gasket kit

Applications

The G25-700 G-Series II Turbocharger is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 1.4L to 3.0L
Power range: 350 to 700 horsepower (Garrett rating)

Notes

Garrett also builds the G25-700 with 0.49 or 0.92 A/R housings, and as a super core or CHRA
The Garrett speed sensor kit is sold separately
Garrett states that running above 160,000 rpm is at the owner’s risk and can cause premature failure
A calibration is required to turn the extra compressor flow into more power

Frequently Asked Questions

Is the G25-700 G-Series II Turbocharger ready to install? Yes. This part number is a complete turbocharger, assembled and calibrated by Garrett with a 0.5 bar actuator, and it ships with a gasket kit, an oil restrictor and water fittings. The owner still needs a V-band manifold flange, oil and water lines, and a calibration for the new turbocharger.
How much power can the G25-700 make? Garrett rates the G25-700 G-Series II Turbocharger at 350 to 700 horsepower on engines from 1.4L to 3.0L. The rating comes from the choke flow of the compressor map and represents potential flywheel horsepower, so fuel, boost, intercooling and the calibration decide where an engine lands.
What is the difference between G-Series and G-Series II? G-Series II has new compressor aerodynamics with up to 10 percent more flow at peak pressure ratio and turbo speed, a one-piece center housing with an integrated backplate, twin piston rings on both sides of the shaft and a new Mar-M turbine wheel. The housings are shared with the first generation.
Which turbine housing A/R should I choose for the G25-700? The 0.49 A/R T25 housing favors spool on smaller engines, the 0.92 A/R favors top-end flow on larger or higher-revving engines, and this 0.72 A/R sits between them. Match the A/R to displacement and the rpm range the car uses, and check the choice against the Garrett flow maps.
Can I upgrade my first-generation G25 to G-Series II? Yes. Because G-Series II uses the first-generation compressor and turbine housings, a G25 owner can fit a G-Series II CHRA and keep the existing housings. This complete turbocharger suits a new build, or a car moving up from a different frame size.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
