What turbine housing do I need for the G25-700 G-Series II Super Core in reverse rotation?

A reverse-rotation G25 kit. Garrett lists 0.72 and 0.92 A/R V-band housings with an internal wastegate and the same two sizes as free-float housings for an external wastegate. Garrett states that reverse and standard rotation housings are not interchangeable, so a standard G25 housing cannot be used.

Is a CHRA available instead of a super core?

Yes. Garrett lists a reverse-rotation G25-700 CHRA, part 934113-5002S, which omits the compressor housing. Because G-Series II shares the first-generation compressor contour, an owner with an existing reverse G25 compressor cover can buy the CHRA; a new build without housings is better served by this super core.

Does reverse rotation change the power rating?

No. Garrett lists the G25-700 G-Series II Super Core at 350 to 700 horsepower for engines from 1.4L to 3.0L in either rotation. Garrett derives that from compressor choke flow as potential flywheel horsepower, and states that a calibration is required to use the extra flow of the second-generation compressor.

Who should buy a reverse rotation core?

Builders of twin-turbo engines and mirrored installs, where one turbocharger has to spin opposite to its partner so both sides can share a symmetrical layout. If the engine runs one turbocharger on a conventional manifold, there is no benefit, and the standard-rotation core gives access to the 0.49 A/R T25 housing as well.

What speed limit applies?

Garrett publishes a maximum allowable speed of 160,000 rpm for the G25-700. Running above that is at the risk of the owner and can lead to premature failure. A Garrett speed sensor, sold separately, installs in the compressor housing and reports shaft speed to a gauge or data logger.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

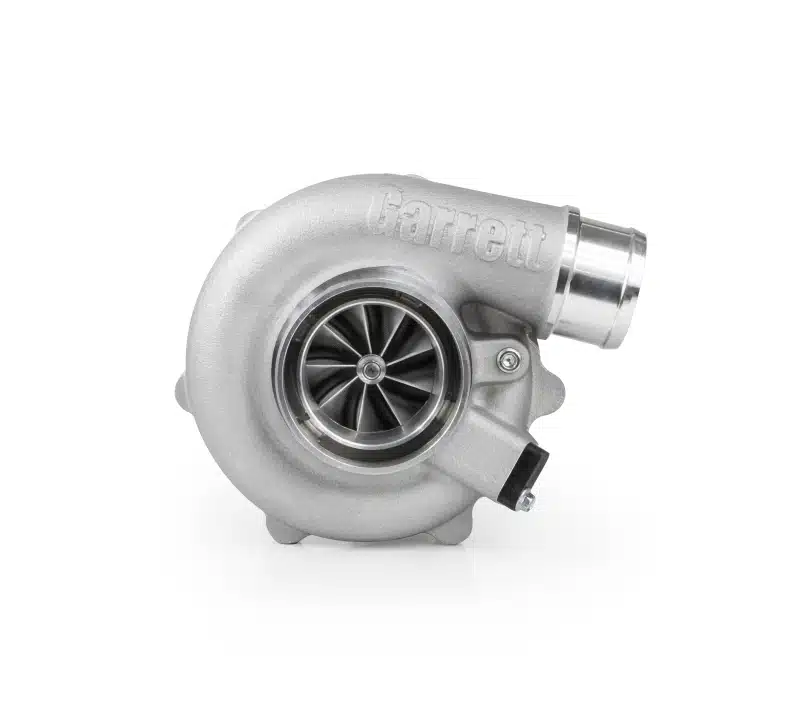

Garrett G25-700 G-Series II Super Core, 54mm Reverse Rotation

Garrett’s G25-700 G-Series II Super Core in reverse rotation puts the 54mm second-generation compressor on a mirrored center section, the highest-flowing reverse-rotation core Garrett offers in the G25 frame. Garrett rates the G25-700 at 350 to 700 horsepower on 1.4L to 3.0L engines. It is for twin-turbo and mirrored layouts that need a reversed turbocharger with real flow; on a single-turbo engine the standard-rotation version, or the 48mm G25-585, is the more sensible buy.

Durability Changes

G-Series II keeps the one-piece center housing and backplate and the twin piston rings on each side of the shaft, both intended to cut failure points and oil seepage past the seals. The Mar-M super alloy turbine wheel is rated for exhaust temperatures to 1050C (1922F).

Features

54mm G-Series II compressor wheel on a reverse-rotation center housing
Garrett frame reference 5449: 54mm compressor inducer, 49mm turbine exducer
Accepts reverse-rotation first-generation G25 turbine housings
Oil restrictor and water fittings included

Specifications

Garrett turbo reference: 5449
Compressor inducer and exducer: 54mm and 67mm
Turbine inducer and exducer: 54mm and 49mm
Maximum turbocharger speed: 160,000 rpm
Rotation: Reverse

What’s Included

G25-700 G-Series II reverse rotation super core with compressor housing fitted
Oil restrictor and water fittings

Applications

The G25-700 G-Series II Super Core is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 1.4L to 3.0L
Power range: 350 to 700 horsepower (Garrett rating)
Reverse-rotation turbine kits: 0.72 and 0.92 A/R V-band, each with internal wastegate or free float

Notes

The turbine housing is not included; Garrett lists G25 turbine housing kits in reverse rotation
Garrett states that reverse-rotation turbine housings are not interchangeable with standard-rotation housings
The Garrett speed sensor kit is sold separately
Garrett states that running above 160,000 rpm is at the owner’s risk and can cause premature failure
A calibration is required to turn the extra compressor flow into more power

Frequently Asked Questions

What turbine housing do I need for the G25-700 G-Series II Super Core in reverse rotation? A reverse-rotation G25 kit. Garrett lists 0.72 and 0.92 A/R V-band housings with an internal wastegate and the same two sizes as free-float housings for an external wastegate. Garrett states that reverse and standard rotation housings are not interchangeable, so a standard G25 housing cannot be used.
Is a CHRA available instead of a super core? Yes. Garrett lists a reverse-rotation G25-700 CHRA, part 934113-5002S, which omits the compressor housing. Because G-Series II shares the first-generation compressor contour, an owner with an existing reverse G25 compressor cover can buy the CHRA; a new build without housings is better served by this super core.
Does reverse rotation change the power rating? No. Garrett lists the G25-700 G-Series II Super Core at 350 to 700 horsepower for engines from 1.4L to 3.0L in either rotation. Garrett derives that from compressor choke flow as potential flywheel horsepower, and states that a calibration is required to use the extra flow of the second-generation compressor.
Who should buy a reverse rotation core? Builders of twin-turbo engines and mirrored installs, where one turbocharger has to spin opposite to its partner so both sides can share a symmetrical layout. If the engine runs one turbocharger on a conventional manifold, there is no benefit, and the standard-rotation core gives access to the 0.49 A/R T25 housing as well.
What speed limit applies? Garrett publishes a maximum allowable speed of 160,000 rpm for the G25-700. Running above that is at the risk of the owner and can lead to premature failure. A Garrett speed sensor, sold separately, installs in the compressor housing and reports shaft speed to a gauge or data logger.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
