Why would I need a reverse rotation G25-700 G-Series II CHRA?

Because twin-turbo engines often mount the turbochargers as mirror images. Running one standard and one reverse rotation unit lets both compressor outlets and turbine inlets face the same way relative to each bank, which keeps intake and exhaust plumbing symmetrical. This reverse G25-700 G-Series II CHRA is the partner to the standard version.

Does the reverse core use different housings?

Yes. Reverse rotation requires reverse-rotation compressor and turbine housings, because the scroll has to follow the direction of the wheel. Garrett lists four reverse G25 turbine kits for this core: 0.72 and 0.92 A/R V-band housings, each offered with an external wastegate or an internal wastegate.

What power does each reverse G25-700 support?

Garrett rates the G25-700 at 350 to 700 horsepower per turbocharger on 1.4L to 3.0L engines. The rating comes from compressor choke flow and stands for potential flywheel horsepower. A twin setup shares the airflow between two units, and fuel, boost and calibration still decide the final number.

Is there a speed limit for this turbocharger?

Yes. Garrett sets the maximum allowable speed for the G25-700 at 160,000 rpm and states that running beyond it is at the risk of the owner and can cause premature failure. A speed sensor in the compressor housing, sold separately, lets the tuner watch both shafts on a twin-turbo engine.

Should I buy the reverse G25-700 G-Series II CHRA on its own?

Usually not. It is one half of a matched pair, and a twin-turbo engine normally runs one standard and one reverse rotation unit with the same compressor wheel so both banks flow alike. Order it with the standard rotation G25-700 CHRA, or use it to replace a damaged reverse core in an existing pair.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

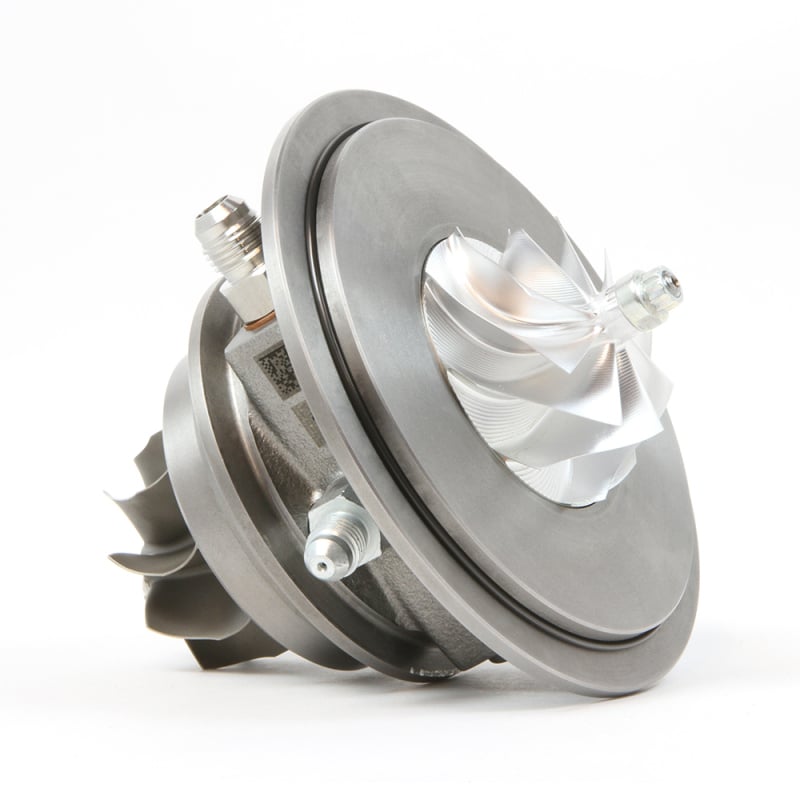

Garrett G25-700 G-Series II CHRA, Reverse Rotation

Garrett’s G25-700 G-Series II CHRA in reverse rotation pairs with a standard-rotation G25-700 on twin-turbo engines, so each bank gets the same 54mm compressor and 700 horsepower rating with plumbing that mirrors side to side. It is the bare center section, with no compressor or turbine housing, built to drop into reverse-rotation G25 housings from either generation. Garrett rates each unit at 350 to 700 horsepower on 1.4L to 3.0L, so two of them suit a twin-turbo engine aimed well past 1,000 horsepower where the owner accepts some loss of low-speed response. A twin-turbo engine targeting moderate power is better served by a pair of G25-585 cores.

Reverse Rotation in G-Series II

Garrett offers reverse rotation across the G-Series II supercore, CHRA and turbocharger range. The core keeps the G-Series II changes: a one-piece center housing and backplate, twin piston rings either side of the shaft, and a Mar-M turbine wheel that Garrett rates to 1050C (1922F).

Features

Reverse rotation for the mirrored side of a twin-turbo installation
54mm compressor inducer with G-Series II aerodynamics
Compatible with Gen I reverse-rotation G25 compressor and turbine housings

Specifications

Garrett turbo reference: 5449
Compressor inducer and exducer: 54mm and 67mm
Turbine inducer and exducer: 54mm and 49mm
Maximum turbocharger speed: 160,000 rpm
Rotation: Reverse
Matching super core: 934114-5002S

Applications

The G25-700 G-Series II CHRA is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 1.4L to 3.0L
Power range: 350 to 700 horsepower (Garrett rating)
Garrett G25 turbine kits, reverse rotation: 0.72 and 0.92 A/R V-band, each with an external or internal wastegate

Notes

Sold without housings; it needs a reverse-rotation compressor housing and a reverse rotation G25 turbine housing kit
The reverse rotation G25-700 super core includes the compressor housing
Garrett states that running above 160,000 rpm is at the owner’s risk and can cause premature failure
The Garrett speed sensor kit is sold separately

Frequently Asked Questions

Why would I need a reverse rotation G25-700 G-Series II CHRA? Because twin-turbo engines often mount the turbochargers as mirror images. Running one standard and one reverse rotation unit lets both compressor outlets and turbine inlets face the same way relative to each bank, which keeps intake and exhaust plumbing symmetrical. This reverse G25-700 G-Series II CHRA is the partner to the standard version.
Does the reverse core use different housings? Yes. Reverse rotation requires reverse-rotation compressor and turbine housings, because the scroll has to follow the direction of the wheel. Garrett lists four reverse G25 turbine kits for this core: 0.72 and 0.92 A/R V-band housings, each offered with an external wastegate or an internal wastegate.
What power does each reverse G25-700 support? Garrett rates the G25-700 at 350 to 700 horsepower per turbocharger on 1.4L to 3.0L engines. The rating comes from compressor choke flow and stands for potential flywheel horsepower. A twin setup shares the airflow between two units, and fuel, boost and calibration still decide the final number.
Is there a speed limit for this turbocharger? Yes. Garrett sets the maximum allowable speed for the G25-700 at 160,000 rpm and states that running beyond it is at the risk of the owner and can cause premature failure. A speed sensor in the compressor housing, sold separately, lets the tuner watch both shafts on a twin-turbo engine.
Should I buy the reverse G25-700 G-Series II CHRA on its own? Usually not. It is one half of a matched pair, and a twin-turbo engine normally runs one standard and one reverse rotation unit with the same compressor wheel so both banks flow alike. Order it with the standard rotation G25-700 CHRA, or use it to replace a damaged reverse core in an existing pair.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
