What comes in the box with the G25-660 Super Core?

The 54mm compressor wheel and 0.70 A/R compressor housing mounted to the center housing rotating assembly, with the oil restrictor and water fittings Garrett lists for the G25. The turbine housing is not part of the G25-660 Super Core, and neither is the speed sensor, so budget for both when planning the build.

How much horsepower will the G25-660 support?

Garrett gives a range of 350 to 660 horsepower for engines displacing 1.4L to 3.0L. The upper figure is the potential flywheel horsepower calculated from the compressor choke flow, not a dyno result, and the engine still needs the fuel, boost and tune to get there.

Which G25 turbine housings fit this core?

Garrett lists five standard-rotation G25 kits: internal wastegate housings in 0.49 A/R with a T25 inlet and in 0.72 and 0.92 A/R with V-band inlets, plus free-float V-band housings in 0.72 and 0.92 A/R. The free-float versions require an external wastegate on the manifold.

Can I upgrade the G25-660 to G-Series II later?

Yes. Garrett designed G-Series II to share the first-generation compressor and turbine housings and calls it a direct upgrade path for Gen I owners. An owner could later fit a G-Series II G25-700 CHRA and keep the housings already on the engine, so confirm part numbers before ordering.

Do I need a tune after installing a G25-660 Super Core?

Yes. A turbocharger of this size changes airflow, boost behavior and fueling demand well beyond any factory calibration, so the engine needs a calibration written for it. Garrett also publishes a 165,000 rpm speed limit, and a speed sensor in the machined compressor port helps the tuner stay below it.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

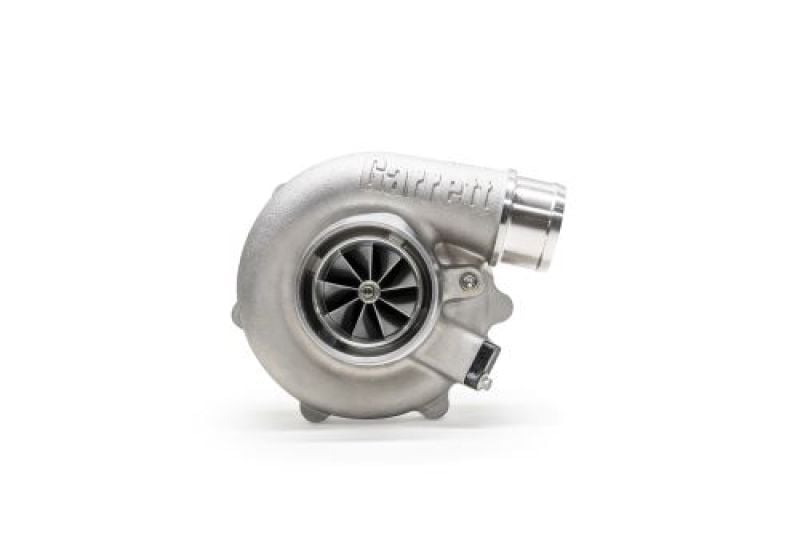

Garrett G25-660 Super Core, 54mm Standard Rotation

Garrett’s G25-660 Super Core is the high-flow end of the first-generation G25 range: a 54mm compressor wheel and its housing on a standard-rotation center section, ready for whichever G25 turbine housing the build calls for. Garrett rates it at 350 to 660 horsepower on 1.4L to 3.0L engines, which puts it in front of a built four-cylinder that has outgrown the 48mm G25-550 but still needs the packaging of a small frame. On a lightly modified engine making under 400 horsepower it is larger than necessary.

Turbine and Housing Interface

The turbine wheel is Mar-M alloy rated to 1050C (1922F), and Garrett states that its new aerodynamics flow 15 to 20 percent more than GTX with a peak efficiency of 74 percent. The V-band connection between center and turbine housing allows 360 degrees of orientation with Garrett non-wastegated housings.

Features

54mm compressor inducer and 67mm exducer, 65 trim, 0.70 A/R housing
79 percent maximum compressor efficiency, per Garrett
One-piece center housing and backplate
Fully machined speed sensor and pressure ports; oil restrictor and water fittings supplied

Specifications

Compressor inducer and exducer: 54mm and 67mm
Compressor trim and A/R: 65 trim, 0.70 A/R
Turbine inducer and exducer: 54mm and 49mm
Turbine trim: 84
Maximum compressor efficiency: 79 percent
Maximum turbocharger speed: 165,000 rpm
Rotation: Standard

What’s Included

G25-660 standard rotation super core with compressor housing fitted
Oil restrictor and water fittings

Applications

The G25-660 Super Core is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 1.4L to 3.0L
Power range: 350 to 660 horsepower (Garrett rating)
Standard-rotation turbine kits: 0.49 A/R T25, 0.72 and 0.92 A/R V-band internal wastegate; 0.72 and 0.92 A/R V-band free float

Notes

The turbine housing is not included; Garrett lists G25 turbine housing kits for standard rotation
The Garrett speed sensor kit is sold separately
Garrett states that running above 165,000 rpm is at the owner’s risk and can cause premature failure

Frequently Asked Questions

What comes in the box with the G25-660 Super Core? The 54mm compressor wheel and 0.70 A/R compressor housing mounted to the center housing rotating assembly, with the oil restrictor and water fittings Garrett lists for the G25. The turbine housing is not part of the G25-660 Super Core, and neither is the speed sensor, so budget for both when planning the build.
How much horsepower will the G25-660 support? Garrett gives a range of 350 to 660 horsepower for engines displacing 1.4L to 3.0L. The upper figure is the potential flywheel horsepower calculated from the compressor choke flow, not a dyno result, and the engine still needs the fuel, boost and tune to get there.
Which G25 turbine housings fit this core? Garrett lists five standard-rotation G25 kits: internal wastegate housings in 0.49 A/R with a T25 inlet and in 0.72 and 0.92 A/R with V-band inlets, plus free-float V-band housings in 0.72 and 0.92 A/R. The free-float versions require an external wastegate on the manifold.
Can I upgrade the G25-660 to G-Series II later? Yes. Garrett designed G-Series II to share the first-generation compressor and turbine housings and calls it a direct upgrade path for Gen I owners. An owner could later fit a G-Series II G25-700 CHRA and keep the housings already on the engine, so confirm part numbers before ordering.
Do I need a tune after installing a G25-660 Super Core? Yes. A turbocharger of this size changes airflow, boost behavior and fueling demand well beyond any factory calibration, so the engine needs a calibration written for it. Garrett also publishes a 165,000 rpm speed limit, and a speed sensor in the machined compressor port helps the tuner stay below it.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
