What is a G25-585 Reverse Rotation Turbo for?

It is for twin-turbo engines where the two turbochargers sit in mirror image. The G25-585 Reverse Rotation Turbo spins the opposite way to a standard G25-585 and has mirrored housings, so the inlets and outlets point the right way on the second side of the engine. Single-turbo engines need the standard rotation model.

Can I pair it with a standard rotation G25-585?

Yes. That is the intended use. Garrett offers the standard rotation G25-585 with the same 0.72 A/R V-band internal wastegate housing, so a builder can run one of each with matched compressor and turbine sizes, matched actuators and the same flow on both banks.

How much power can each turbo support?

Garrett rates each G25-585 at 300 to 585 horsepower, calculated from compressor choke flow as potential flywheel horsepower. The rating is per turbocharger, and real output from a twin installation depends on displacement, fuel, boost and how the engine is calibrated.

Is the actuator preset?

Yes. Garrett assembles this reverse rotation turbocharger and calibrates the internal wastegate with a 0.5 bar actuator before shipping. Higher boost targets are normally set through the boost controller and the engine calibration rather than by changing the actuator on the turbocharger.

Should I choose the 0.72 or 0.92 A/R reverse housing?

Garrett makes both. The 0.72 A/R on this unit brings boost on sooner and suits most engines in the lower and middle part of the rating. The 0.92 A/R flows more at high rpm and is the better match for larger engines or builds where peak power matters most.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

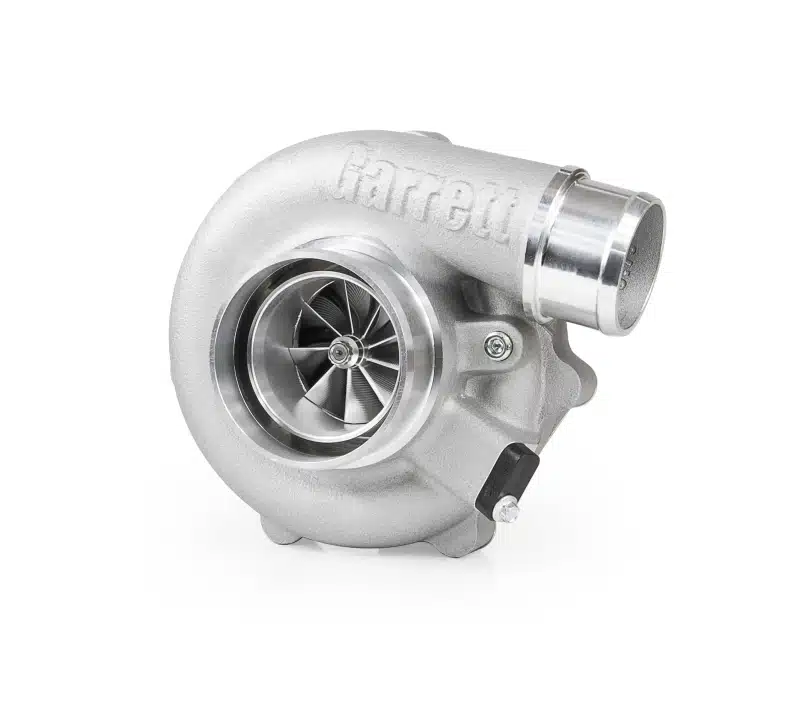

Garrett G25-585 Reverse Rotation Turbocharger, G-Series II 0.72 A/R V-Band

Garrett’s G25-585 Reverse Rotation Turbo is the opposite-handed G-Series II G25, built so a twin-turbo engine can run one standard and one reverse rotation unit in mirror image. This part number has the 0.72 A/R turbine housing with V-band inlet and outlet and an internal wastegate, assembled and calibrated by Garrett with a 0.5 bar actuator. Each turbocharger carries Garrett’s 300 to 585 horsepower rating on engines from 1.4L to 3.0L. A buyer with a single-turbo engine should skip it, since the standard rotation G25-585 offers the same performance with wider housing choice.

Features

Reverse rotation compressor and turbine, mirrored against the standard G25-585
0.72 A/R internal wastegate turbine housing with V-band inlet and outlet
48mm G-Series II compressor wheel with up to 10 percent more flow than the first generation at peak pressure ratio and turbo speed

Specifications

Garrett turbo reference: 4849
Compressor inducer and exducer: 48mm and 60mm
Turbine inducer and exducer: 54mm and 49mm
Turbine housing: 0.72 A/R, V-band inlet and outlet
Wastegate actuator: 0.5 bar
Maximum turbocharger speed: 185,000 rpm
Rotation: Reverse

What’s Included

G25-585 G-Series II reverse rotation turbocharger with 0.72 A/R internal wastegate housing and actuator
Oil restrictor and water fittings

Applications

The G25-585 Reverse Rotation Turbo is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 1.4L to 3.0L
Power range: 300 to 585 horsepower per turbocharger (Garrett rating)
Layout: Mirrored twin-turbo engines

Notes

Pair it with a standard rotation G25-585 for a mirrored twin-turbo layout
A 0.92 A/R reverse rotation version is also available
The Garrett speed sensor kit is sold separately
Garrett states that running above 185,000 rpm is at the owner’s risk and can cause damage and premature failure

Frequently Asked Questions

What is a G25-585 Reverse Rotation Turbo for? It is for twin-turbo engines where the two turbochargers sit in mirror image. The G25-585 Reverse Rotation Turbo spins the opposite way to a standard G25-585 and has mirrored housings, so the inlets and outlets point the right way on the second side of the engine. Single-turbo engines need the standard rotation model.
Can I pair it with a standard rotation G25-585? Yes. That is the intended use. Garrett offers the standard rotation G25-585 with the same 0.72 A/R V-band internal wastegate housing, so a builder can run one of each with matched compressor and turbine sizes, matched actuators and the same flow on both banks.
How much power can each turbo support? Garrett rates each G25-585 at 300 to 585 horsepower, calculated from compressor choke flow as potential flywheel horsepower. The rating is per turbocharger, and real output from a twin installation depends on displacement, fuel, boost and how the engine is calibrated.
Is the actuator preset? Yes. Garrett assembles this reverse rotation turbocharger and calibrates the internal wastegate with a 0.5 bar actuator before shipping. Higher boost targets are normally set through the boost controller and the engine calibration rather than by changing the actuator on the turbocharger.
Should I choose the 0.72 or 0.92 A/R reverse housing? Garrett makes both. The 0.72 A/R on this unit brings boost on sooner and suits most engines in the lower and middle part of the rating. The 0.92 A/R flows more at high rpm and is the better match for larger engines or builds where peak power matters most.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
