What is the difference between the GXR57-88 Super Core and the GXR55-88?

The turbine. The GXR57-88 Super Core uses a 118mm by 112mm turbine wheel and G57 V-band housings, while the 149mm GXR55-88 uses a 112mm by 106mm wheel with G55 housings. The compressor is shared, and Garrett rates the GXR57-88 to 2600 horsepower against 2500.

Will it fit a class with an 88mm inducer rule?

The compressor inducer measures 88.9mm, and Garrett lists the GXR57-88 for drag race classes and classes with compressor inducer rules. Class requirements differ and change, so Garrett asks buyers to verify the rules before purchasing a core for a class car.

How much horsepower is it rated for?

Garrett gives 1200 to 2600 horsepower on engines from 3.0L to 12.0L. The rating is calculated from compressor choke flow and represents potential flywheel horsepower, so the actual figure depends on fuel, boost, intercooling and the calibration chosen for the engine.

Which turbine housings fit the GXR57?

Garrett lists three G57 kits: 1.09, 1.25 and 1.41 A/R, all with a V-band inlet and V-band outlet and no internal wastegate. There is no T6 inlet option in the GXR57 list, so the manifold needs a V-band turbine flange and an external wastegate.

What is the maximum shaft speed?

75,000 rpm, according to Garrett. Running faster is at the risk of the owner and can result in damage and premature failure. A speed sensor in the flange-style port, sold separately, lets the tuner watch shaft speed during a pass and adjust boost to suit.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

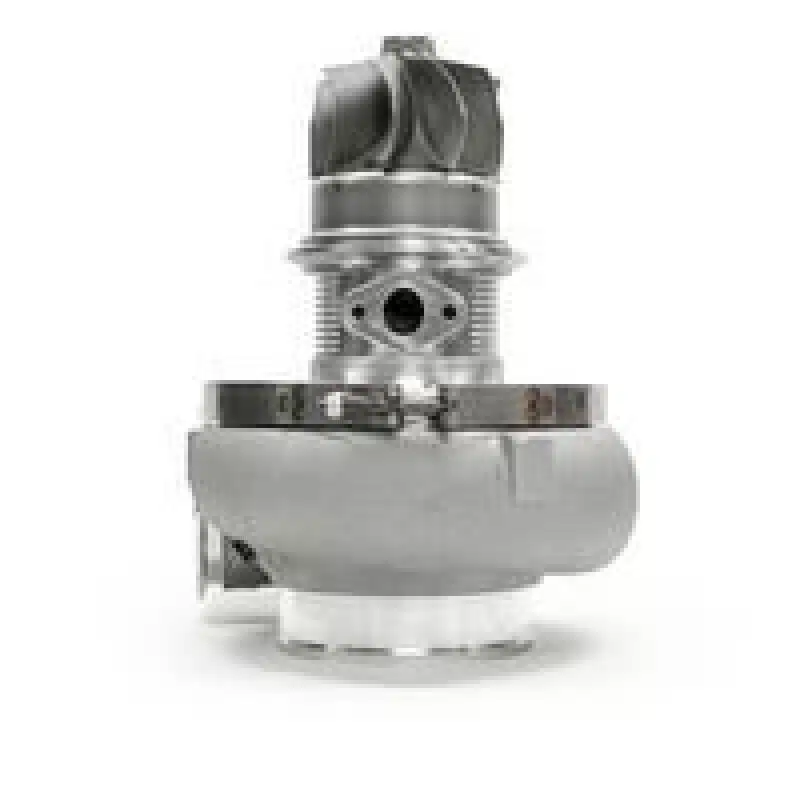

Garrett G-XRace GXR57-88 Super Core, 88.9mm Inducer, 112mm Turbine

Garrett’s GXR57-88 Super Core pairs the 88.9mm by 149mm XBoost compressor of the 149mm GXR55-88 with the larger GXR57 turbine, a 118mm inducer and 112mm exducer wheel, coded 8812. The bigger turbine lifts Garrett’s rating to 1200 to 2600 horsepower against 2500 for the GXR55-88, on the same 3.0L to 12.0L displacement window. It suits an 88mm inducer class car whose engine needs more exhaust flow than the 106mm turbine allows. Turbine housing choice narrows to three G57 V-band kits, so a T6 manifold is the wrong starting point for this core.

Construction

Garrett builds the GXR57 with a one-piece aluminum center housing and backplate and a flange-style speed sensor port, and describes the design as patented. The three G57 housings, 1.09, 1.25 and 1.41 A/R, have V-band inlet and outlet and an external wastegate layout.

Features

88.9mm inducer for classes with an 88mm inducer rule
118mm by 112mm GXR57 turbine wheel
40 percent more compressor flow than the G55-1950
One-piece aluminum center housing and backplate

Specifications

Garrett turbo reference: 8812
Compressor inducer and exducer: 88.9mm and 149mm
Turbine inducer and exducer: 118mm and 112mm
Maximum turbocharger speed: 75,000 rpm
Horsepower rating: Up to 2600 (Garrett rating)

Applications

The GXR57-88 Super Core is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 3.0L to 12.0L
Power range: 1200 to 2600 horsepower (Garrett rating)
Garrett turbine kits: G57 1.09, 1.25 and 1.41 A/R, V-band inlet and outlet, external wastegate

Notes

The turbine housing is not included; Garrett’s matching G57 turbine housing kits are sold separately
An external wastegate is required, because every turbine housing Garrett lists for this core is free float
The Garrett speed sensor kit is sold separately
Garrett states that running above 75,000 rpm is at the owner’s risk and can result in damage and premature failure
Garrett asks buyers to verify class rules before purchasing a core for an inducer-limited class
Larger-inducer cores are listed in the GXR57 range

Frequently Asked Questions

What is the difference between the GXR57-88 Super Core and the GXR55-88? The turbine. The GXR57-88 Super Core uses a 118mm by 112mm turbine wheel and G57 V-band housings, while the 149mm GXR55-88 uses a 112mm by 106mm wheel with G55 housings. The compressor is shared, and Garrett rates the GXR57-88 to 2600 horsepower against 2500.
Will it fit a class with an 88mm inducer rule? The compressor inducer measures 88.9mm, and Garrett lists the GXR57-88 for drag race classes and classes with compressor inducer rules. Class requirements differ and change, so Garrett asks buyers to verify the rules before purchasing a core for a class car.
How much horsepower is it rated for? Garrett gives 1200 to 2600 horsepower on engines from 3.0L to 12.0L. The rating is calculated from compressor choke flow and represents potential flywheel horsepower, so the actual figure depends on fuel, boost, intercooling and the calibration chosen for the engine.
Which turbine housings fit the GXR57? Garrett lists three G57 kits: 1.09, 1.25 and 1.41 A/R, all with a V-band inlet and V-band outlet and no internal wastegate. There is no T6 inlet option in the GXR57 list, so the manifold needs a V-band turbine flange and an external wastegate.
What is the maximum shaft speed? 75,000 rpm, according to Garrett. Running faster is at the risk of the owner and can result in damage and premature failure. A speed sensor in the flange-style port, sold separately, lets the tuner watch shaft speed during a pass and adjust boost to suit.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
