Which classes is the 0.25 inch GXR55-88 Super Core with the 106mm turbine listed for?

Garrett lists this GXR55-88 Super Core, part 934174-5007S, for X275 and for classes with an 88mm compressor inducer rule. Garrett names the 103mm turbine version with the same groove for LDR, so an LDR racer should compare the two against the current rule book.

What turbine housings fit the 106mm wheel?

Garrett lists six G55 kits: 1.24 and 1.40 A/R with a V-band inlet, plus 1.00, 1.12, 1.24 and 1.40 A/R with a T6 inlet. All have a V-band outlet and a free-float layout, so the build needs an external wastegate on the manifold.

How much horsepower will it support?

The Garrett rating is 1000 to 2350 horsepower on 3.0L to 12.0L engines. The rating is worked out from compressor choke flow and represents potential flywheel horsepower, so the number depends on how well the fuel, boost control and calibration use the airflow.

Why choose this over the 0.18 inch version?

Only because the rule book asks for a 0.25 inch map groove. The two cores share the compressor wheel, the 106mm turbine, the 84,000 rpm limit and the housing list. Ordering the wrong groove width can leave the car outside the class rules, so confirm the requirement first.

Do I need a speed sensor?

Garrett recommends one. The maximum allowable shaft speed is 84,000 rpm, and use above that is at the risk of the owner. The fully machined, flange-style port accepts the Garrett sensor, which is a separate purchase, and gives the tuner shaft speed alongside boost data.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

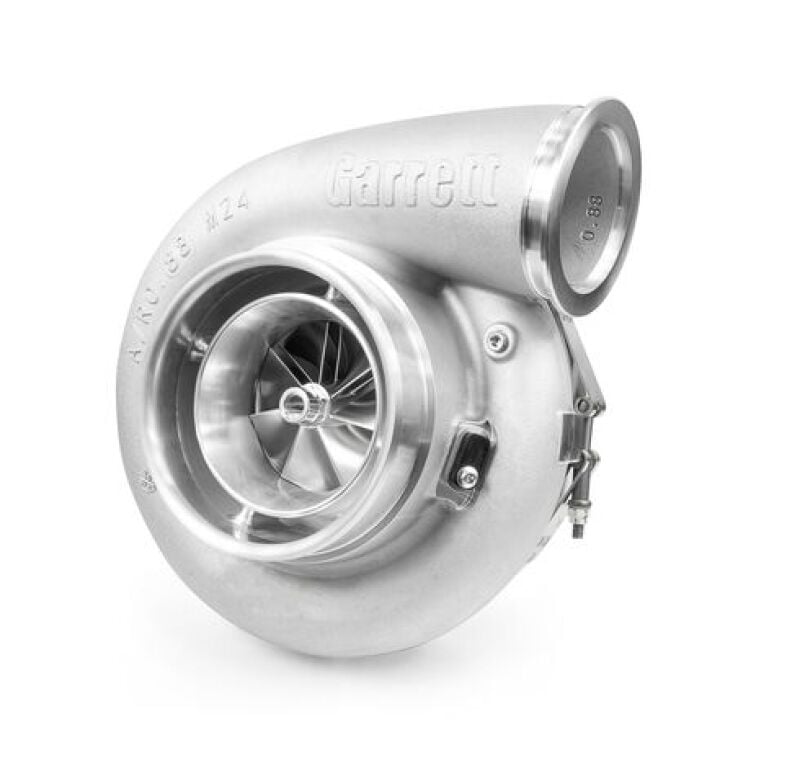

Garrett G-XRace GXR55-88 Super Core, 0.25 Inch Map Groove, 106mm Turbine

Garrett’s GXR55-88 Super Core with a 0.25 inch map groove and the 106mm turbine wheel joins the wider groove to the larger GXR55 turbine option, 112mm by 106mm with a trim of 90. The compressor is the 88.9mm by 133mm XBoost wheel in a 0.88 A/R housing, rated by Garrett at 1000 to 2350 horsepower on 3.0L to 12.0L engines. Garrett lists it for X275 and classes with an 88mm inducer rule. Its advantage over the 103mm version is housing choice, with six G55 kits including T6 inlets; its limit is that Garrett names it for X275 rather than LDR.

Features

0.25 inch map groove compressor housing
112mm by 106mm turbine wheel with a 90 trim
Takes G55 V-band and T6 inlet turbine housings
21 percent more compressor flow than the G55-1950

Specifications

Compressor inducer and exducer: 88.9mm and 133mm
Compressor trim and housing A/R: 44 and 0.88
Map groove: 0.25 inch
Turbine inducer and exducer: 112mm and 106mm
Turbine trim: 90
Maximum turbocharger speed: 84,000 rpm
Rotation: Standard

Applications

The GXR55-88 Super Core is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 3.0L to 12.0L
Power range: 1000 to 2350 horsepower (Garrett rating)
Garrett turbine kits: G55 1.24 and 1.40 A/R V-band inlet, or 1.00, 1.12, 1.24 and 1.40 A/R T6 inlet, all V-band outlet

Notes

The turbine housing is not included; Garrett’s matching G55 turbine housing kits are sold separately
An external wastegate is required, because every turbine housing Garrett lists for this core is free float
The Garrett speed sensor kit is sold separately
Garrett states that running above 84,000 rpm is at the owner’s risk and can result in damage and premature failure
Garrett asks buyers to verify class rules before purchasing a core for an inducer-limited class
Other map groove and turbine combinations are listed in the GXR55-88 range

Frequently Asked Questions

Which classes is the 0.25 inch GXR55-88 Super Core with the 106mm turbine listed for? Garrett lists this GXR55-88 Super Core, part 934174-5007S, for X275 and for classes with an 88mm compressor inducer rule. Garrett names the 103mm turbine version with the same groove for LDR, so an LDR racer should compare the two against the current rule book.
What turbine housings fit the 106mm wheel? Garrett lists six G55 kits: 1.24 and 1.40 A/R with a V-band inlet, plus 1.00, 1.12, 1.24 and 1.40 A/R with a T6 inlet. All have a V-band outlet and a free-float layout, so the build needs an external wastegate on the manifold.
How much horsepower will it support? The Garrett rating is 1000 to 2350 horsepower on 3.0L to 12.0L engines. The rating is worked out from compressor choke flow and represents potential flywheel horsepower, so the number depends on how well the fuel, boost control and calibration use the airflow.
Why choose this over the 0.18 inch version? Only because the rule book asks for a 0.25 inch map groove. The two cores share the compressor wheel, the 106mm turbine, the 84,000 rpm limit and the housing list. Ordering the wrong groove width can leave the car outside the class rules, so confirm the requirement first.
Do I need a speed sensor? Garrett recommends one. The maximum allowable shaft speed is 84,000 rpm, and use above that is at the risk of the owner. The fully machined, flange-style port accepts the Garrett sensor, which is a separate purchase, and gives the tuner shaft speed alongside boost data.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
