Is the 0.18 inch GXR55-88 Super Core with the 106mm turbine suited to X275?

Yes. Garrett lists this GXR55-88 Super Core, part 934174-5002S, for X275 drag racing and for classes with an 88mm compressor inducer rule. Because the map groove width is regulated in some classes, check that the rule book calls for 0.18 inch before ordering this part.

103mm or 106mm turbine: which should I choose?

Start with the class rules and the manifold. The 106mm wheel has a higher trim, 90 against 86, and fits six G55 housings including T6 inlet versions, while the 103mm wheel uses two dedicated V-band housings. A T6 manifold points to this 106mm version.

Which turbine housings does Garrett list for it?

Six G55 free-float kits: 1.24 and 1.40 A/R with a V-band inlet, and 1.00, 1.12, 1.24 and 1.40 A/R with a T6 inlet. All six end in a V-band outlet. The housing is not included, which leaves the A/R open to suit the displacement and the rpm range of the engine.

What horsepower does Garrett quote?

1000 to 2350 horsepower on engines from 3.0L to 12.0L, with 21 percent more compressor flow than the G55-1950. Garrett derives the rating from compressor choke flow, so it is potential flywheel horsepower. The real figure depends on fuel, boost, intercooling and tuning.

Does it need an external wastegate and speed sensor?

The wastegate is required, since every listed housing is free float with no internal gate. A speed sensor is not required, but Garrett advises one: the core is limited to 84,000 rpm, and running beyond that is at the risk of the owner. Both are sold separately.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

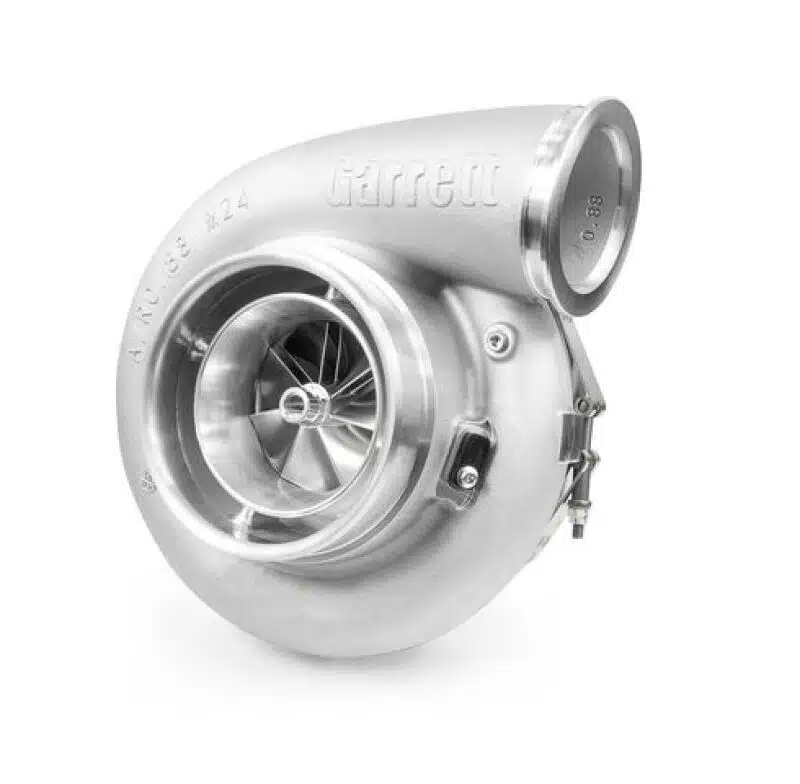

Garrett G-XRace GXR55-88 Super Core, 0.18 Inch Map Groove, 106mm Turbine

Garrett’s GXR55-88 Super Core here pairs the 0.18 inch map groove compressor housing with the larger GXR55 turbine option, a 112mm inducer and 106mm exducer wheel with a trim of 90. Up front is the same 88.9mm by 133mm XBoost compressor in a 0.88 A/R housing, and Garrett’s rating stays at 1000 to 2350 horsepower for 3.0L to 12.0L. What the 106mm wheel changes is the housing choice: Garrett lists six G55 housings for it, including T6 inlet versions, against two for the 103mm wheel. For an X275 car on a T6 manifold with a 0.18 inch groove rule, this is the version to order.

Features

0.18 inch map groove compressor housing
106mm exducer turbine wheel with a 90 trim
Works with six G55 turbine housings in V-band and T6 inlet forms
Lightweight aluminum backplate and fully machined speed sensor port

Specifications

Compressor inducer and exducer: 88.9mm and 133mm
Compressor trim and housing A/R: 44 and 0.88
Map groove: 0.18 inch
Turbine inducer and exducer: 112mm and 106mm
Turbine trim: 90
Maximum turbocharger speed: 84,000 rpm
Rotation: Standard

Applications

The GXR55-88 Super Core is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 3.0L to 12.0L
Power range: 1000 to 2350 horsepower (Garrett rating)
Garrett turbine kits: G55 1.24 and 1.40 A/R V-band inlet, or 1.00, 1.12, 1.24 and 1.40 A/R T6 inlet, all V-band outlet

Notes

The turbine housing is not included; Garrett’s matching G55 turbine housing kits are sold separately
An external wastegate is required, because every turbine housing Garrett lists for this core is free float
The Garrett speed sensor kit is sold separately
Garrett states that running above 84,000 rpm is at the owner’s risk and can result in damage and premature failure
Garrett asks buyers to verify class rules before purchasing a core for an inducer-limited class
Other map groove and turbine combinations are listed in the GXR55-88 range

Frequently Asked Questions

Is the 0.18 inch GXR55-88 Super Core with the 106mm turbine suited to X275? Yes. Garrett lists this GXR55-88 Super Core, part 934174-5002S, for X275 drag racing and for classes with an 88mm compressor inducer rule. Because the map groove width is regulated in some classes, check that the rule book calls for 0.18 inch before ordering this part.
103mm or 106mm turbine: which should I choose? Start with the class rules and the manifold. The 106mm wheel has a higher trim, 90 against 86, and fits six G55 housings including T6 inlet versions, while the 103mm wheel uses two dedicated V-band housings. A T6 manifold points to this 106mm version.
Which turbine housings does Garrett list for it? Six G55 free-float kits: 1.24 and 1.40 A/R with a V-band inlet, and 1.00, 1.12, 1.24 and 1.40 A/R with a T6 inlet. All six end in a V-band outlet. The housing is not included, which leaves the A/R open to suit the displacement and the rpm range of the engine.
What horsepower does Garrett quote? 1000 to 2350 horsepower on engines from 3.0L to 12.0L, with 21 percent more compressor flow than the G55-1950. Garrett derives the rating from compressor choke flow, so it is potential flywheel horsepower. The real figure depends on fuel, boost, intercooling and tuning.
Does it need an external wastegate and speed sensor? The wastegate is required, since every listed housing is free float with no internal gate. A speed sensor is not required, but Garrett advises one: the core is limited to 84,000 rpm, and running beyond that is at the risk of the owner. Both are sold separately.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
