How does the GXR45-80 Super Core compare with the GXR45-76 and GXR45-82?

All three share the 109mm exducer, the G45 turbine and the 100,000 rpm limit. The GXR45-80 Super Core has an 80.9mm inducer and tops out at 1750 horsepower in Garrett ratings, against 1650 for the 76.6mm core and 1800 for the 82.9mm core.

What is the horsepower range of the GXR45-80?

Garrett lists 750 to 1750 horsepower on engines from 2.0L to 8.0L. Garrett calculates the figure from compressor choke flow, so it stands for potential flywheel horsepower, and the real number depends on the fuel system, boost level, intercooling and the calibration.

Will my G45 turbine housing fit?

Yes. The GXR45-80 takes the eight G45 free-float housings Garrett lists: 1.01, 1.15, 1.28 and 1.44 A/R with a V-band or divided T4 inlet. Garrett states that G-XRace shares turbine housings with the G-Series, so the exhaust side of a G45 build carries over.

What else do I need to install it?

A turbine housing, an external wastegate, oil and water lines, and a calibration for the new airflow. Garrett also recommends a speed sensor because the maximum shaft speed is 100,000 rpm, and the Garrett sensor kit is sold separately from the core.

Is there a compressor map I can check?

Yes. Garrett publishes a compressor map for the GXR45-80 and an overlay comparing it with the G45-1600. Plot the airflow and pressure ratio the engine needs on that map before choosing between this core and its two siblings, and ask the tuner to check the plot.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

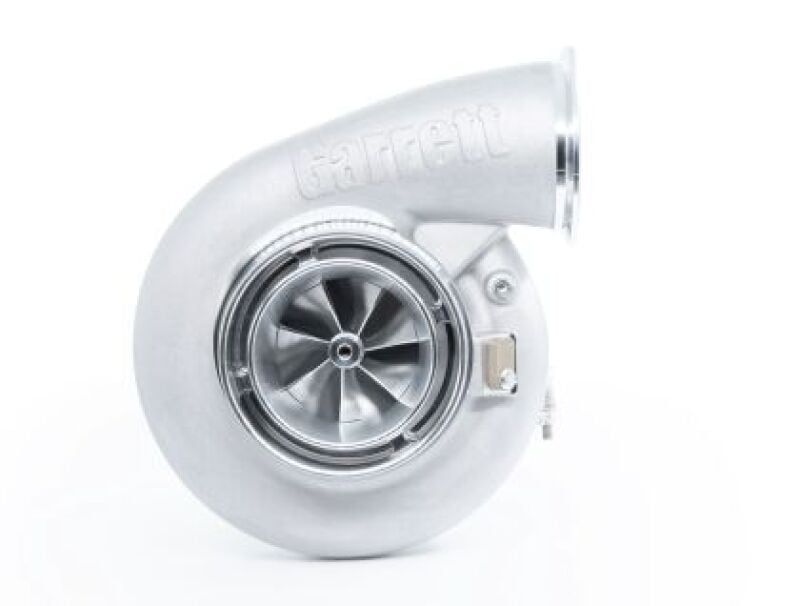

Garrett G-XRace GXR45-80 Super Core, 80.9mm Inducer, 109mm Exducer

Garrett’s GXR45-80 Super Core sits between the GXR45-76 and GXR45-82, with an 80.9mm inducer on the same 109mm exducer XBoost wheel and the 89mm by 82mm G45 turbine. Garrett codes it 8082 and rates it at 750 to 1750 horsepower for 2.0L to 8.0L. The extra inducer over the GXR45-76 is worth 100 horsepower at the top of Garrett’s range, and it costs nothing in housing choice, since all three cores take the same G45 kits. For a racer with no inducer limit and an engine that can use 1700 horsepower or more, this is a sensible middle pick; a lighter combination will spool faster on a GXR45-76.

Features

80.9mm inducer and 109mm exducer XBoost compressor
Improved pressure ratio capability for higher boost pressure
Flange-style speed sensor port and aluminum backplate
Takes every G45 V-band and divided T4 turbine housing kit

Specifications

Garrett turbo reference: 8082
Compressor inducer and exducer: 80.9mm and 109mm
Compressor housing A/R: 0.85
Turbine inducer and exducer: 89mm and 82mm
Maximum turbocharger speed: 100,000 rpm

Applications

The GXR45-80 Super Core is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 2.0L to 8.0L
Power range: 750 to 1750 horsepower (Garrett rating)
Garrett turbine kits: G45 1.01, 1.15, 1.28 and 1.44 A/R, V-band or divided T4 inlet, V-band outlet, free float

Notes

The turbine housing is not included; Garrett’s matching G45 turbine housing kits are sold separately
An external wastegate is required, because every turbine housing Garrett lists for this core is free float
The Garrett speed sensor kit is sold separately
Garrett states that running above 100,000 rpm is at the owner’s risk and can result in damage and premature failure
Garrett publishes a compressor map overlay for this core against the G45-1600

Frequently Asked Questions

How does the GXR45-80 Super Core compare with the GXR45-76 and GXR45-82? All three share the 109mm exducer, the G45 turbine and the 100,000 rpm limit. The GXR45-80 Super Core has an 80.9mm inducer and tops out at 1750 horsepower in Garrett ratings, against 1650 for the 76.6mm core and 1800 for the 82.9mm core.
What is the horsepower range of the GXR45-80? Garrett lists 750 to 1750 horsepower on engines from 2.0L to 8.0L. Garrett calculates the figure from compressor choke flow, so it stands for potential flywheel horsepower, and the real number depends on the fuel system, boost level, intercooling and the calibration.
Will my G45 turbine housing fit? Yes. The GXR45-80 takes the eight G45 free-float housings Garrett lists: 1.01, 1.15, 1.28 and 1.44 A/R with a V-band or divided T4 inlet. Garrett states that G-XRace shares turbine housings with the G-Series, so the exhaust side of a G45 build carries over.
What else do I need to install it? A turbine housing, an external wastegate, oil and water lines, and a calibration for the new airflow. Garrett also recommends a speed sensor because the maximum shaft speed is 100,000 rpm, and the Garrett sensor kit is sold separately from the core.
Is there a compressor map I can check? Yes. Garrett publishes a compressor map for the GXR45-80 and an overlay comparing it with the G45-1600. Plot the airflow and pressure ratio the engine needs on that map before choosing between this core and its two siblings, and ask the tuner to check the plot.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
