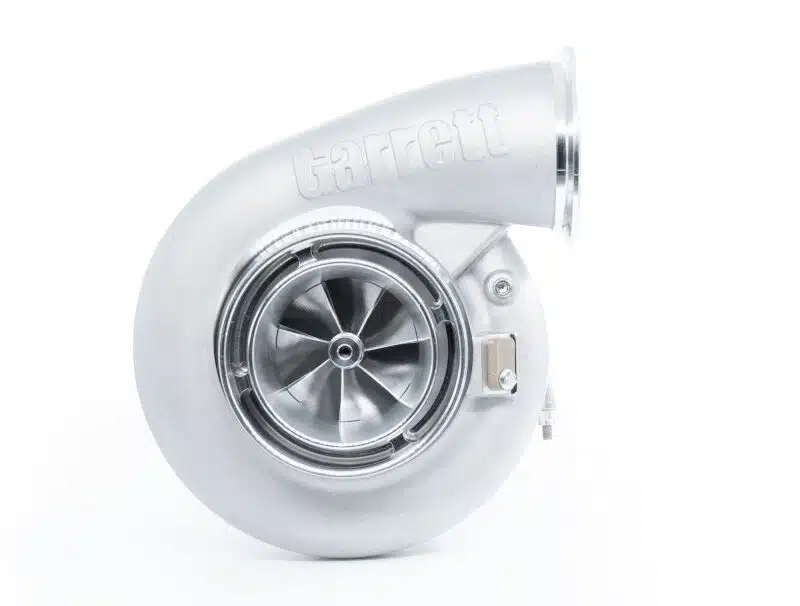

Garrett G-XRace GXR45-76 Super Core, 76.6mm Inducer, 109mm Exducer

Garrett’s GXR45-76 Super Core moves the GXR45 to a 109mm exducer compressor wheel with a 76.6mm inducer, the 7682 frame in Garrett’s reference, still riding on the 89mm by 82mm G45 turbine. Garrett rates it at 750 to 1650 horsepower on 2.0L to 8.0L engines and sets a 100,000 rpm limit for it, below the 109,000 rpm of the 102mm-exducer GXR45 cores. It suits a builder who wants more flow than the 102mm-exducer cores give the G45 turbine can drive while keeping a mid-frame package. A car whose class caps the inducer below 76.6mm should look at the GXR45-73 instead.

Design

Garrett lists XBoost on this core as patent pending, with improved pressure ratio capability for higher boost and better efficiency at high flow for a cooler charge. The aluminum backplate reduces weight, and a flange-style speed sensor port makes sensor fitting simple. Garrett publishes an overlay of its compressor map against the G45-1500.

Features

76.6mm inducer and 109mm exducer XBoost compressor wheel
Flange-style speed sensor port for shaft speed monitoring
Lightweight aluminum backplate
Fits the full set of G45 turbine housing kits

Specifications

Garrett turbo reference: 7682
Compressor inducer and exducer: 76.6mm and 109mm
Compressor housing A/R: 0.85
Turbine inducer and exducer: 89mm and 82mm
Maximum turbocharger speed: 100,000 rpm

Applications

The GXR45-76 Super Core is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 2.0L to 8.0L
Power range: 750 to 1650 horsepower (Garrett rating)
Garrett turbine kits: G45 1.01, 1.15, 1.28 and 1.44 A/R, V-band or divided T4 inlet, V-band outlet, free float

Notes

The turbine housing is not included; Garrett’s matching G45 turbine housing kits are sold separately
An external wastegate is required, because every turbine housing Garrett lists for this core is free float
The Garrett speed sensor kit is sold separately
Garrett states that running above 100,000 rpm is at the owner’s risk and can result in damage and premature failure
Larger-inducer versions, the GXR45-80 and GXR45-82, are listed in the GXR45 range

Frequently Asked Questions

What does the 7682 reference on the GXR45-76 Super Core mean? It is the frame size code Garrett gives the GXR45-76 Super Core, built from the 76.6mm compressor inducer and the 82mm turbine exducer. Other makers use the same style of code, so it helps when comparing a Garrett core with a competing turbocharger of a similar size.
How much horsepower is the GXR45-76 rated for? Garrett rates it at 750 to 1650 horsepower on engines from 2.0L to 8.0L. The rating is calculated from compressor choke flow and represents potential flywheel horsepower, so the figure is a ceiling for the compressor, not a dyno result for any one engine.
Why is the speed limit 100,000 rpm? That is the maximum Garrett publishes for this core, set below the 109,000 rpm of the 102mm-exducer GXR45 models. A larger compressor wheel reaches higher tip speed at the same shaft rpm. Running above the limit is at the risk of the owner, so a speed sensor is worth fitting.
Which turbine housings can I use? Garrett lists the eight G45 free-float housings: 1.01, 1.15, 1.28 and 1.44 A/R, each with either a V-band inlet or a divided T4 inlet and a V-band outlet. A G45 owner can keep the current housing when changing to this core.
Is this the right GXR45 for a street-driven car? Usually not. Garrett starts its range at 750 horsepower, and the 109mm exducer is aimed at high boost. A street car making less than that will spool more slowly than it would on a smaller frame. It makes sense where the power target sits well inside the 750 to 1650 range.
