Does the GXR45-67 Super Core have a map groove?

No. The standard GXR45-67 Super Core is for classes with no map groove rule. For classes that require a 0.25 inch map groove, such as PanAm, Garrett sells an optional compressor housing, part 934809-0009, which replaces the housing supplied on this core.

How much flow does it add over a G45?

Garrett quotes 29 percent more compressor flow for the GXR45-67 than for the G45-1125, with a higher pressure ratio capability and better efficiency at high flow. In practice that means more airflow from the same inducer limit, which is the point of the core in an inducer-capped class.

What horsepower rating applies?

Garrett lists 725 to 1475 horsepower on engines from 2.0L to 8.0L for the GXR45-67. The figure is calculated from the choke flow of the compressor map and represents potential flywheel horsepower, so the combination around the turbocharger decides the final number.

Which turbine housings fit the GXR45 frame?

Garrett lists eight G45 free-float kits: 1.01, 1.15, 1.28 and 1.44 A/R, each in V-band inlet and divided T4 inlet form with a V-band outlet. Smaller A/R choices help a smaller engine spool, and the 1.44 suits a big-displacement engine running high rpm.

Is a speed sensor needed on this core?

Garrett recommends one. The maximum allowable turbocharger speed is 109,000 rpm, and a sensor fitted to the compressor housing lets the tuner see shaft speed and stay below it. The Garrett speed sensor kit is sold separately from the core.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

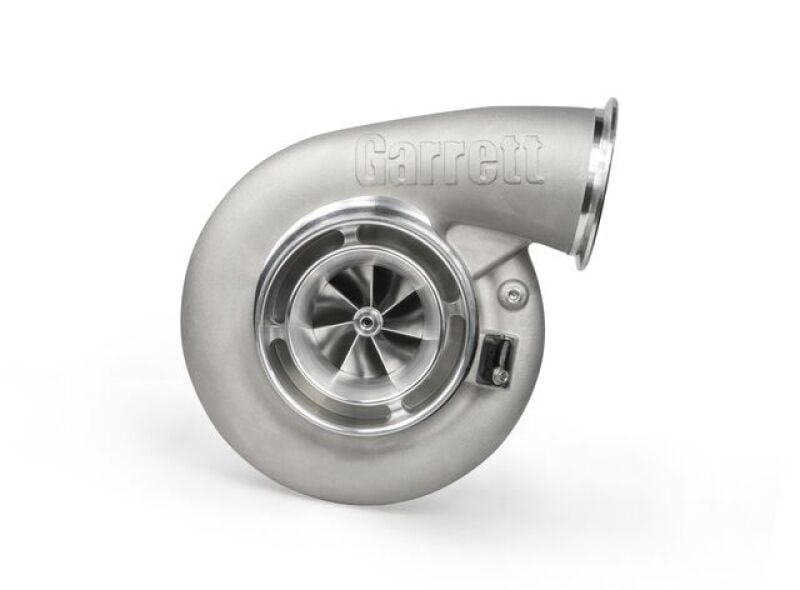

Garrett G-XRace GXR45-67 Super Core, 67.9mm Inducer, 82mm Turbine

Garrett’s GXR45-67 Super Core combines a 67.9mm inducer, 102mm exducer XBoost compressor with the larger G45 turbine, an 89mm inducer and 82mm exducer wheel. Garrett quotes 29 percent more compressor flow than the G45-1125 and rates the core at 725 to 1475 horsepower on 2.0L to 8.0L engines. The standard compressor housing has no map groove, for classes without a groove rule, and Garrett offers a separate 0.25 inch map groove housing for classes such as PanAm. A racer with a 67.9mm inducer cap and a large engine gets the bigger turbine here that a GXR42 cannot offer.

Features

67.9mm compressor inducer with a 102mm exducer
XBoost compressor with 29 percent more flow than the G45-1125
Lightweight aluminum backplate
Uses the same twin-scroll T4 and V-band turbine housings as the G45

Specifications

Compressor inducer and exducer: 67.9mm and 102mm
Compressor trim and housing A/R: 44 and 0.85
Turbine inducer and exducer: 89mm and 82mm
Turbine trim: 84
Maximum turbocharger speed: 109,000 rpm

Applications

The GXR45-67 Super Core is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 2.0L to 8.0L
Power range: 725 to 1475 horsepower (Garrett rating)
Garrett turbine kits: G45 1.01, 1.15, 1.28 and 1.44 A/R, V-band or divided T4 inlet, V-band outlet, free float

Notes

The turbine housing is not included; Garrett’s matching G45 turbine housing kits are sold separately
An external wastegate is required, because every turbine housing Garrett lists for this core is free float
The Garrett speed sensor kit is sold separately
Garrett states that running above 109,000 rpm is at the owner’s risk and can result in damage and premature failure
For classes with a 0.25 inch map groove rule, Garrett offers an optional GXR45-67 compressor housing
Garrett asks buyers to verify class rules before purchasing a core for an inducer-limited class

Frequently Asked Questions

Does the GXR45-67 Super Core have a map groove? No. The standard GXR45-67 Super Core is for classes with no map groove rule. For classes that require a 0.25 inch map groove, such as PanAm, Garrett sells an optional compressor housing, part 934809-0009, which replaces the housing supplied on this core.
How much flow does it add over a G45? Garrett quotes 29 percent more compressor flow for the GXR45-67 than for the G45-1125, with a higher pressure ratio capability and better efficiency at high flow. In practice that means more airflow from the same inducer limit, which is the point of the core in an inducer-capped class.
What horsepower rating applies? Garrett lists 725 to 1475 horsepower on engines from 2.0L to 8.0L for the GXR45-67. The figure is calculated from the choke flow of the compressor map and represents potential flywheel horsepower, so the combination around the turbocharger decides the final number.
Which turbine housings fit the GXR45 frame? Garrett lists eight G45 free-float kits: 1.01, 1.15, 1.28 and 1.44 A/R, each in V-band inlet and divided T4 inlet form with a V-band outlet. Smaller A/R choices help a smaller engine spool, and the 1.44 suits a big-displacement engine running high rpm.
Is a speed sensor needed on this core? Garrett recommends one. The maximum allowable turbocharger speed is 109,000 rpm, and a sensor fitted to the compressor housing lets the tuner see shaft speed and stay below it. The Garrett speed sensor kit is sold separately from the core.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
