What power range does Garrett give the GXR42-72 Super Core?

Garrett rates the GXR42-72 Super Core at 700 to 1450 horsepower on 2.0L to 7.0L engines. The figures are calculated from compressor choke flow and represent potential flywheel horsepower. Fuel system capacity, intercooling, boost and the calibration decide where a given engine actually lands.

Can I reuse my G42 turbine housing?

Yes. Garrett states that G-XRace uses the same twin-scroll T4 and V-band turbine housings as the G-Series, and it lists the G42 1.01, 1.15 and 1.28 A/R kits for this core. An owner upgrading from a G42 can keep the housing and change only the core.

How is the GXR42-72 different from the GXR42-68?

The compressor inducer. The GXR42-72 measures 72.9mm against 68.9mm, which raises the rating from 1400 to 1450 horsepower at the top and from 650 to 700 at the bottom. Both share the turbine wheel, the 0.85 A/R compressor housing and the turbine housing options.

Does this core need an external wastegate?

Yes. Each G42 housing Garrett lists for it is free float, which means there is no internal wastegate. The exhaust manifold needs a flange for an external wastegate, and the gate should be sized for the boost target and exhaust flow of the engine.

What is the speed limit for the GXR42-72?

Garrett sets the maximum allowable shaft speed at 109,000 rpm. Running above it is at the risk of the owner and can cause damage and premature failure, so Garrett recommends a speed sensor in the compressor housing. The Garrett sensor kit is a separate purchase.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

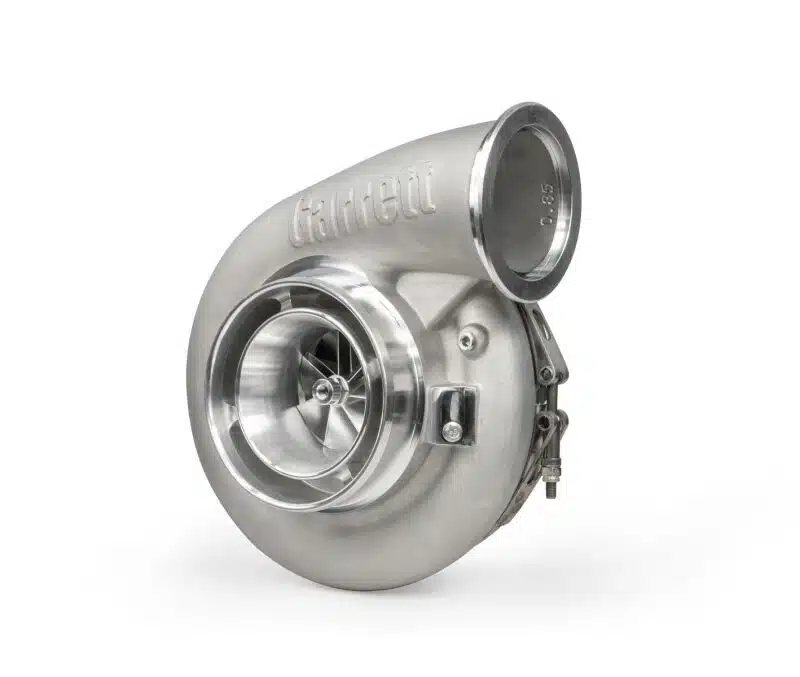

Garrett G-XRace GXR42-72 Super Core, 72.9mm Inducer, 75mm Turbine

Garrett’s GXR42-72 Super Core is the largest-inducer core on the GXR42 frame, a 72.9mm by 102mm XBoost compressor wheel over the same 82mm by 75mm turbine the GXR42-68 uses. That extra inducer lifts Garrett’s rating to 700 to 1450 horsepower for engines from 2.0L to 7.0L. It fits drag racing classes with a 72.9mm inducer limit and also suits an unrestricted build that wants the most flow a GXR42 can give before stepping up to the heavier GXR45. Below about 700 horsepower it is a poor fit; Garrett’s own range starts there.

Features

72.9mm compressor inducer with a 102mm exducer
XBoost aerodynamics for higher boost pressure and a lower intake temperature
Lightweight aluminum backplate
Uses the same twin-scroll T4 and V-band turbine housings as the G42

Specifications

Compressor inducer and exducer: 72.9mm and 102mm
Compressor trim and housing A/R: 51 and 0.85
Turbine inducer and exducer: 82mm and 75mm
Turbine trim: 84
Maximum turbocharger speed: 109,000 rpm
Rotation: Standard

Applications

The GXR42-72 Super Core is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 2.0L to 7.0L
Power range: 700 to 1450 horsepower (Garrett rating)
Garrett turbine kits: G42 1.01, 1.15 and 1.28 A/R, V-band or divided T4 inlet, V-band outlet, free float

Notes

The turbine housing is not included; Garrett’s matching G42 turbine housing kits are sold separately
An external wastegate is required, because every turbine housing Garrett lists for this core is free float
The Garrett speed sensor kit is sold separately
Garrett states that running above 109,000 rpm is at the owner’s risk and can result in damage and premature failure
Garrett asks buyers to verify class rules before purchasing a core for an inducer-limited class

Frequently Asked Questions

What power range does Garrett give the GXR42-72 Super Core? Garrett rates the GXR42-72 Super Core at 700 to 1450 horsepower on 2.0L to 7.0L engines. The figures are calculated from compressor choke flow and represent potential flywheel horsepower. Fuel system capacity, intercooling, boost and the calibration decide where a given engine actually lands.
Can I reuse my G42 turbine housing? Yes. Garrett states that G-XRace uses the same twin-scroll T4 and V-band turbine housings as the G-Series, and it lists the G42 1.01, 1.15 and 1.28 A/R kits for this core. An owner upgrading from a G42 can keep the housing and change only the core.
How is the GXR42-72 different from the GXR42-68? The compressor inducer. The GXR42-72 measures 72.9mm against 68.9mm, which raises the rating from 1400 to 1450 horsepower at the top and from 650 to 700 at the bottom. Both share the turbine wheel, the 0.85 A/R compressor housing and the turbine housing options.
Does this core need an external wastegate? Yes. Each G42 housing Garrett lists for it is free float, which means there is no internal wastegate. The exhaust manifold needs a flange for an external wastegate, and the gate should be sized for the boost target and exhaust flow of the engine.
What is the speed limit for the GXR42-72? Garrett sets the maximum allowable shaft speed at 109,000 rpm. Running above it is at the risk of the owner and can cause damage and premature failure, so Garrett recommends a speed sensor in the compressor housing. The Garrett sensor kit is a separate purchase.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
