Is the GXR42-68 Super Core right for a 68.9mm inducer class?

Yes. The compressor inducer measures 68.9mm, and Garrett built the GXR42-68 Super Core specifically for drag racing classes with that inducer limit. Garrett advises checking the rules of the class before buying, because sanctioning bodies revise measurement methods and limits.

How much power does Garrett rate the GXR42-68 for?

Garrett lists 650 to 1400 horsepower on engines from 2.0L to 7.0L. That rating is derived from compressor choke flow and represents potential flywheel horsepower. Inside a class, the inducer limit is fixed, so boost, fuel and the calibration set how close an engine gets to the top of that range.

Which turbine housings does Garrett list?

Six G42 free-float kits: 1.01, 1.15 and 1.28 A/R with a V-band inlet, and the same sizes with a divided T4 inlet, all with a V-band outlet. A smaller engine or a car that needs quick spool on the launch leans toward 1.01, while a large engine at high rpm suits 1.28.

Should I buy the GXR42-68 or the GXR42-72?

Let the class rules decide. The 68.9mm inducer exists for classes that limit inducer size, while the GXR42-72 brings a 72.9mm inducer and a higher 700 to 1450 horsepower rating for classes with a looser limit or none. Both use the same turbine wheel and housing choices.

Do I need a speed sensor?

Garrett strongly suggests one. The maximum allowable shaft speed is 109,000 rpm, and running past it is at the risk of the owner. A sensor installed in the compressor housing shows the tuner real shaft speed, and the Garrett sensor kit is sold separately.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

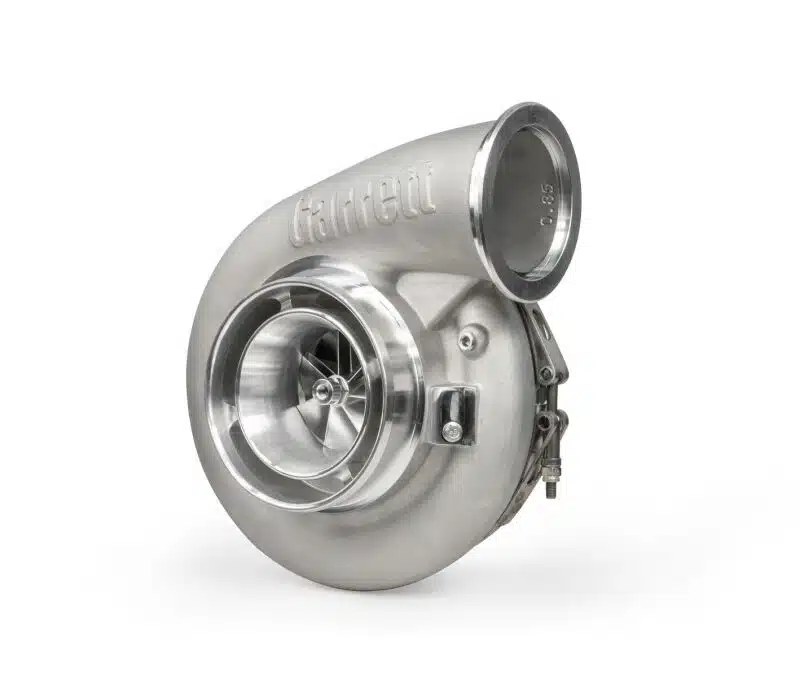

Garrett G-XRace GXR42-68 Super Core, 68.9mm Inducer, 75mm Turbine

Garrett’s GXR42-68 Super Core is aimed at drag racing classes that cap the compressor inducer at 68.9mm, pairing that inducer with a 102mm exducer and an 82mm by 75mm turbine wheel. Garrett rates it at 650 to 1400 horsepower and sizes it for engines from 2.0L to 7.0L, which places it between the GXR40 and GXR45 frames. Its XBoost compressor raises pressure ratio capability, so a class car limited on inducer size can still chase boost. For an unrestricted build with no inducer rule, the larger-inducer GXR42-72 makes more power from the same frame; for a car under 650 horsepower, the low end of Garrett’s range, it is the wrong size.

Frame and Housings

The GXR42 frame uses the same twin-scroll T4 and V-band turbine housings as the G-Series G42, which Garrett describes as an easy upgrade path. The compressor housing is 0.85 A/R, the backplate is aluminum, and Garrett publishes a flange diagram for the GXR42 and GXR45 frames to help with manifold and piping layout.

Features

68.9mm compressor inducer and 102mm exducer for inducer-limited classes
XBoost compressor for higher boost pressure and efficiency at high flow rates
Lightweight aluminum backplate
Shares G42 turbine housings, so an existing G42 exhaust side carries over

Specifications

Compressor inducer and exducer: 68.9mm and 102mm
Compressor trim and housing A/R: 45 and 0.85
Turbine inducer and exducer: 82mm and 75mm
Turbine trim: 84
Maximum turbocharger speed: 109,000 rpm
Rotation: Standard

Applications

The GXR42-68 Super Core is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 2.0L to 7.0L
Power range: 650 to 1400 horsepower (Garrett rating)
Garrett turbine kits: G42 1.01, 1.15 and 1.28 A/R, V-band or divided T4 inlet, V-band outlet, free float

Notes

The turbine housing is not included; Garrett’s matching G42 turbine housing kits are sold separately
An external wastegate is required, because every turbine housing Garrett lists for this core is free float
The Garrett speed sensor kit is sold separately
Garrett states that running above 109,000 rpm is at the owner’s risk and can result in damage and premature failure
Garrett asks buyers to verify class rules before purchasing a core for an inducer-limited class

Frequently Asked Questions

Is the GXR42-68 Super Core right for a 68.9mm inducer class? Yes. The compressor inducer measures 68.9mm, and Garrett built the GXR42-68 Super Core specifically for drag racing classes with that inducer limit. Garrett advises checking the rules of the class before buying, because sanctioning bodies revise measurement methods and limits.
How much power does Garrett rate the GXR42-68 for? Garrett lists 650 to 1400 horsepower on engines from 2.0L to 7.0L. That rating is derived from compressor choke flow and represents potential flywheel horsepower. Inside a class, the inducer limit is fixed, so boost, fuel and the calibration set how close an engine gets to the top of that range.
Which turbine housings does Garrett list? Six G42 free-float kits: 1.01, 1.15 and 1.28 A/R with a V-band inlet, and the same sizes with a divided T4 inlet, all with a V-band outlet. A smaller engine or a car that needs quick spool on the launch leans toward 1.01, while a large engine at high rpm suits 1.28.
Should I buy the GXR42-68 or the GXR42-72? Let the class rules decide. The 68.9mm inducer exists for classes that limit inducer size, while the GXR42-72 brings a 72.9mm inducer and a higher 700 to 1450 horsepower rating for classes with a looser limit or none. Both use the same turbine wheel and housing choices.
Do I need a speed sensor? Garrett strongly suggests one. The maximum allowable shaft speed is 109,000 rpm, and running past it is at the risk of the owner. A sensor installed in the compressor housing shows the tuner real shaft speed, and the Garrett sensor kit is sold separately.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
