What is the difference between the V-band and hose GXR38-64 Super Core?

Only the compressor outlet. This one ends in a V-band flange that clamps to a matching flange on the charge pipe, and the hose model takes a coupler. The wheels and turbine housing choices are identical, and Garrett publishes an overlay compressor map comparing airflow and pressure ratio between the two outlet designs.

Will the GXR38-64 suit a class with a 64.9mm inducer limit?

Yes. Its compressor inducer measures 64.9mm, and Garrett designed it for XWorld drag racing and other classes with that limit. Rules are revised from season to season, so Garrett asks every buyer to confirm the current regulations of the sanctioning body before ordering a core for a class car.

How much power will the GXR38-64 Super Core make?

Garrett rates the GXR38-64 Super Core at 500 to 1150 horsepower for engines between 2.0L and 5.5L. The figure comes from compressor choke flow and stands for potential flywheel horsepower, so fuel delivery, boost level, intercooling and the calibration decide what the engine produces on the dyno.

Which turbine housings fit this core?

Garrett pairs it with six G38 free-float housings: 0.85, 0.95 and 1.06 A/R with a V-band inlet, and the same three sizes with a divided T4 inlet. All three share a V-band outlet. The 0.85 A/R brings boost in sooner, and the 1.06 A/R trades some response for flow at high rpm.

What is the maximum shaft speed?

Garrett sets the limit at 125,000 rpm and states that running beyond it is at the risk of the owner and can lead to damage and early failure. A speed sensor in the compressor housing lets the tuner watch shaft speed in real time, and Garrett sells the sensor separately.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

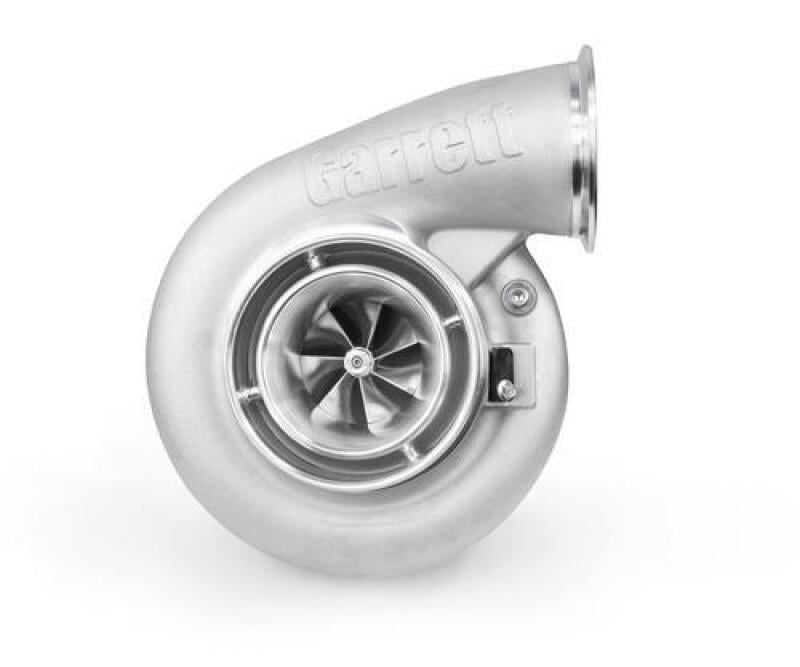

Garrett G-XRace GXR38-64 Super Core, V-Band Compressor Outlet

Garrett’s GXR38-64 Super Core with a V-band compressor outlet is the version for a build that clamps its charge pipe to a flange instead of running a coupler at the turbocharger. It shares the hose model wheels, 64.9mm by 88mm and 74mm by 66mm. Garrett rates the frame at 500 to 1150 horsepower and lists it for engines from 2.0L to 5.5L, with XWorld drag racing named as a target class. An engine aiming well under 500 horsepower, the bottom of that range, is better served by a smaller turbocharger.

Compressor Stage

XBoost is the G-XRace compressor design. Garrett says it lifts the pressure ratio the wheel can reach, so the engine can run more boost, and that it holds efficiency at high flow for a cooler charge. The aluminum backplate trims weight, and Garrett cites U.S. patents including US9850911B2 for the design.

Features

V-band compressor outlet for a clamped charge pipe joint
XBoost compressor aerodynamics for higher boost capability and efficiency at high flow
Fully machined sensor port that accepts a Garrett speed sensor or the G-Smart module
Aluminum backplate to reduce turbocharger weight

Specifications

Garrett turbo reference: 6466
Compressor inducer and exducer: 64.9mm and 88mm
Turbine inducer and exducer: 74mm and 66mm
Compressor outlet: V-band
Maximum turbocharger speed: 125,000 rpm

Applications

The GXR38-64 Super Core is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 2.0L to 5.5L
Power range: 500 to 1150 horsepower (Garrett rating)
Garrett turbine kits: G38 0.85, 0.95 and 1.06 A/R, V-band or divided T4 inlet, V-band outlet, free float

Notes

The turbine housing is not included; Garrett’s matching G38 turbine housing kits are sold separately
An external wastegate is required, because every turbine housing Garrett lists for this core is free float
The Garrett speed sensor kit is sold separately
Garrett states that running above 125,000 rpm is at the owner’s risk and can result in damage and premature failure
Garrett asks buyers to verify class rules before purchasing a core for an inducer-limited class
The same core is also built with a hose compressor outlet

Frequently Asked Questions

What is the difference between the V-band and hose GXR38-64 Super Core? Only the compressor outlet. This one ends in a V-band flange that clamps to a matching flange on the charge pipe, and the hose model takes a coupler. The wheels and turbine housing choices are identical, and Garrett publishes an overlay compressor map comparing airflow and pressure ratio between the two outlet designs.
Will the GXR38-64 suit a class with a 64.9mm inducer limit? Yes. Its compressor inducer measures 64.9mm, and Garrett designed it for XWorld drag racing and other classes with that limit. Rules are revised from season to season, so Garrett asks every buyer to confirm the current regulations of the sanctioning body before ordering a core for a class car.
How much power will the GXR38-64 Super Core make? Garrett rates the GXR38-64 Super Core at 500 to 1150 horsepower for engines between 2.0L and 5.5L. The figure comes from compressor choke flow and stands for potential flywheel horsepower, so fuel delivery, boost level, intercooling and the calibration decide what the engine produces on the dyno.
Which turbine housings fit this core? Garrett pairs it with six G38 free-float housings: 0.85, 0.95 and 1.06 A/R with a V-band inlet, and the same three sizes with a divided T4 inlet. All three share a V-band outlet. The 0.85 A/R brings boost in sooner, and the 1.06 A/R trades some response for flow at high rpm.
What is the maximum shaft speed? Garrett sets the limit at 125,000 rpm and states that running beyond it is at the risk of the owner and can lead to damage and early failure. A speed sensor in the compressor housing lets the tuner watch shaft speed in real time, and Garrett sells the sensor separately.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
