Should I choose the hose or the V-band outlet GXR38-64 Super Core?

Pick the one that matches the charge piping on the engine. This version takes a coupler and clamp at the compressor outlet, while the V-band version needs a matching V-band flange. Wheels, frame and turbine housing options are shared, and Garrett publishes an overlay map that shows how airflow and pressure ratio differ between the two outlets.

How much horsepower is the GXR38-64 rated for?

Garrett rates the GXR38-64 at 500 to 1150 horsepower on 2.0L to 5.5L engines. The figure is calculated from the choke flow of the compressor map and represents potential flywheel horsepower. Garrett does not print a separate number for the hose outlet, so its overlay map is the best guide to where this version lands.

Does the core come with a turbine housing?

No. The GXR38-64 Super Core is the center section with the compressor housing fitted, and the turbine housing is bought on its own. Garrett lists six G38 housings for it in 0.85, 0.95 and 1.06 A/R, each with a V-band outlet and a choice of V-band inlet or divided T4 inlet.

Do I need an external wastegate?

Yes. Every turbine housing Garrett lists for this frame is a free-float design with no internal wastegate port, so boost is held by an external wastegate on the exhaust manifold ahead of the turbocharger. Size the gate for the exhaust flow and boost target of the engine rather than the turbocharger alone.

Which speed sensor fits the machined port?

Garrett names three choices: the G-Smart module and app, part 923586-0003, the street speed sensor kit with gauge, part 781328-0003, and the pro kit without a gauge, part 781328-0004. The maximum shaft speed is 125,000 rpm, and a sensor lets the tuner keep the turbocharger under that limit.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

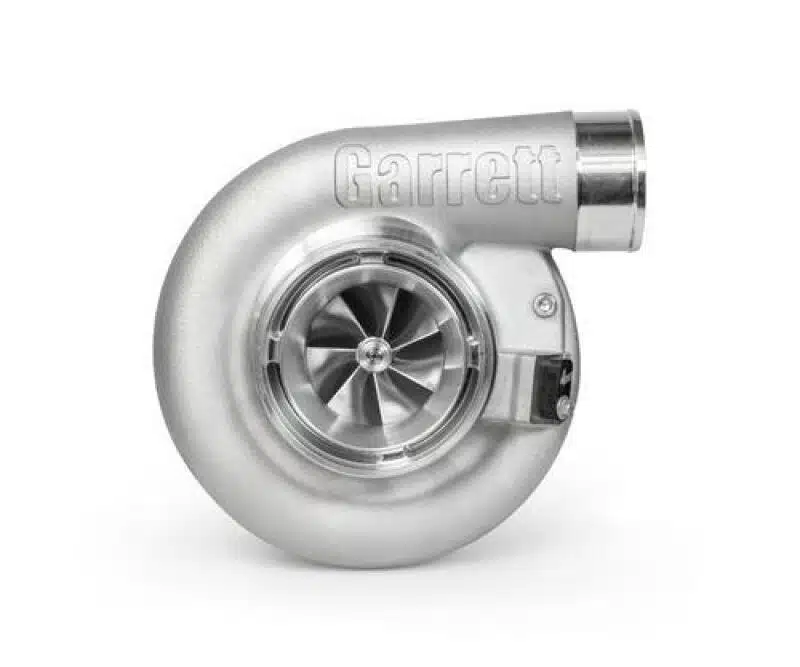

Garrett G-XRace GXR38-64 Super Core, Hose Compressor Outlet

Garrett’s GXR38-64 Super Core in hose outlet form finishes the compressor housing in a plain outlet that takes a coupler and clamp, so it suits charge piping built around hose joints. Behind that outlet sits a 64.9mm inducer, 88mm exducer compressor wheel with Garrett’s XBoost aerodynamics, paired with a 74mm by 66mm turbine wheel. Garrett sizes the GXR38-64 for 2.0L to 5.5L engines across a 500 to 1150 horsepower range and drew it up for XWorld drag racing and other classes capped at a 64.9mm inducer. For a mild street engine it is far more turbocharger than needed.

XBoost Compressor

Garrett credits XBoost with a higher pressure ratio capability for more boost and better efficiency at high flow for a cooler, denser charge. The backplate of the GXR38-64 Super Core is aluminum to save weight. Garrett publishes an overlay map comparing the hose and V-band versions.

Features

Hose compressor outlet for intercooler piping joined with couplers and clamps
Integrated, fully machined sensor port for a Garrett speed sensor kit or the G-Smart module
Lightweight aluminum backplate
Built for classes with a 64.9mm compressor inducer limit

Specifications

Garrett turbo reference: 6466
Compressor inducer and exducer: 64.9mm and 88mm
Turbine inducer and exducer: 74mm and 66mm
Compressor outlet: Hose
Maximum turbocharger speed: 125,000 rpm

Applications

The GXR38-64 Super Core is not vehicle specific. Garrett sizes it by engine and output:

Engine displacement: 2.0L to 5.5L
Power range: 500 to 1150 horsepower (Garrett rating)
Garrett turbine kits: G38 0.85, 0.95 and 1.06 A/R, V-band or divided T4 inlet, V-band outlet, free float

Notes

The turbine housing is not included; Garrett’s matching G38 turbine housing kits are sold separately
An external wastegate is required, because every turbine housing Garrett lists for this core is free float
The Garrett speed sensor kit is sold separately
Garrett states that running above 125,000 rpm is at the owner’s risk and can result in damage and premature failure
Garrett asks buyers to verify class rules before purchasing a core for an inducer-limited class
The same core is also built with a V-band compressor outlet

Frequently Asked Questions

Should I choose the hose or the V-band outlet GXR38-64 Super Core? Pick the one that matches the charge piping on the engine. This version takes a coupler and clamp at the compressor outlet, while the V-band version needs a matching V-band flange. Wheels, frame and turbine housing options are shared, and Garrett publishes an overlay map that shows how airflow and pressure ratio differ between the two outlets.
How much horsepower is the GXR38-64 rated for? Garrett rates the GXR38-64 at 500 to 1150 horsepower on 2.0L to 5.5L engines. The figure is calculated from the choke flow of the compressor map and represents potential flywheel horsepower. Garrett does not print a separate number for the hose outlet, so its overlay map is the best guide to where this version lands.
Does the core come with a turbine housing? No. The GXR38-64 Super Core is the center section with the compressor housing fitted, and the turbine housing is bought on its own. Garrett lists six G38 housings for it in 0.85, 0.95 and 1.06 A/R, each with a V-band outlet and a choice of V-band inlet or divided T4 inlet.
Do I need an external wastegate? Yes. Every turbine housing Garrett lists for this frame is a free-float design with no internal wastegate port, so boost is held by an external wastegate on the exhaust manifold ahead of the turbocharger. Size the gate for the exhaust flow and boost target of the engine rather than the turbocharger alone.
Which speed sensor fits the machined port? Garrett names three choices: the G-Smart module and app, part 923586-0003, the street speed sensor kit with gauge, part 781328-0003, and the pro kit without a gauge, part 781328-0004. The maximum shaft speed is 125,000 rpm, and a sensor lets the tuner keep the turbocharger under that limit.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
