What is the Air-to-Liquid Intercooler Core 873213-6005?

It is a Garrett charge air core cooled by liquid rather than by outside air. Turn 14 lists this Air-to-Liquid Intercooler Core at 4.5 by 15.0 by 8.80 inches with a 1250 horsepower rating. Garrett builds its air-to-liquid cores with bar and plate construction for compact, high-output charge cooling.

What else do I need to build a water-to-air system?

The core is only the heat transfer element. A working system also needs tanks with charge air inlets and outlets, a coolant pump, a heat exchanger at the front of the vehicle to shed the heat, a reservoir, hoses and wiring for the pump. Plan the whole circuit before buying the core.

Why choose air-to-liquid over air-to-air?

Packaging and charge pipe length. An air-to-liquid core can sit near the throttle body or inside an intake plenum, keeping the charge air path short, which helps response. An air-to-air core is simpler, with no pump or coolant, but needs room at the front of the vehicle and longer piping to reach it.

Is 1250 horsepower the power I will make?

No. 1250 horsepower is the rating Turn 14 gives this core, a measure of how much charge air it is sized to cool, not an output figure. The power an engine makes depends on its turbocharger, fuel system and calibration. The core rating tells you the build can grow without the core becoming the limit.

Why is this part not on the Garrett website?

Garrett does not show 873213-6005 in its current intercooler table, which lists a related 873213-6002 air-to-liquid core at 980 horsepower. The size and 1250 horsepower rating here come from Turn 14, the Garrett distributor. Contact us before ordering if you need more detail on its layout.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

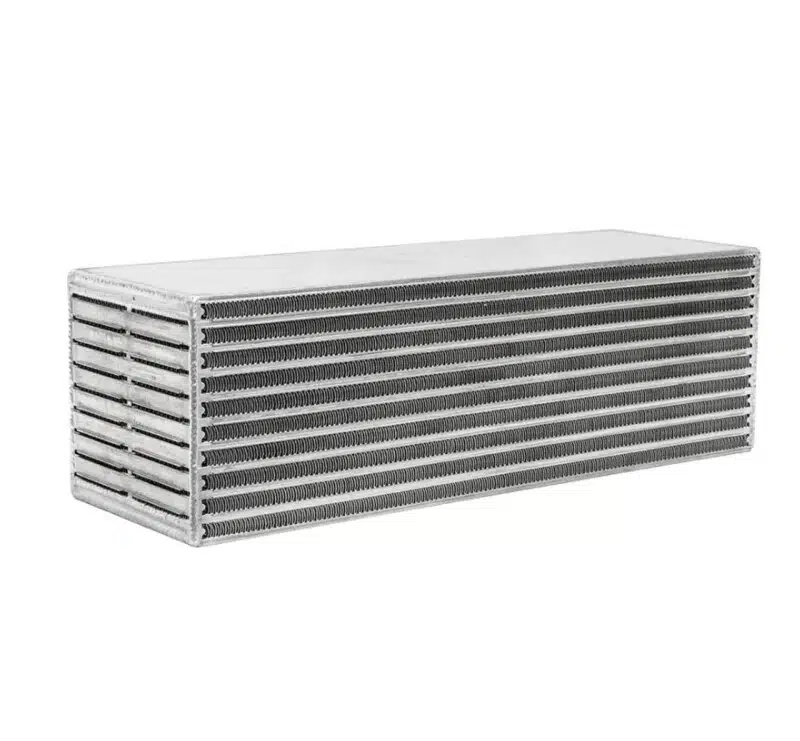

Garrett Air-to-Liquid Intercooler Core, 4.5 x 15.0 x 8.8 in, 1250 HP

Garrett’s Air-to-Liquid Intercooler Core 873213-6005 is a water-cooled charge air core that Turn 14 lists at 4.5 x 15.0 x 8.80 in and rated for 1250 horsepower. Garrett’s current catalog does not show this part number, so the listing keeps to what Turn 14 states and to what Garrett publishes about its air-to-liquid cores in general: bar and plate construction, built to reduce intake temperatures where packaging is compact. A 1250 horsepower rating puts it in big-power territory, suited to a fabricated water-to-air system on a high-output build, and it is far more than a modest street engine needs.

Air-to-Liquid Systems

An air-to-liquid core cools the charge air with coolant rather than outside air, which lets it sit close to the engine with short charge piping. The core is one part of a system: the builder also supplies the tanks, a coolant pump, a front-mounted heat exchanger, a reservoir and the plumbing between them.

Features

Air-to-liquid design, cooled by a coolant circuit rather than by outside air
Bar and plate construction, as Garrett uses across its air-to-liquid cores
The Air-to-Liquid Intercooler Core is listed by Turn 14 at 1250 horsepower

Specifications

Part number: 873213-6005
Type: Air-to-liquid core
Dimensions: 4.5 x 15.0 x 8.80 in (Turn 14 listing)
Construction: Bar and plate
Supported power: 1250 horsepower (Turn 14 listing)

Applications

The Air-to-Liquid Intercooler Core is not vehicle specific. It is sized by power and packaging:

Supported power: 1250 horsepower (Turn 14 listing)
Dimensions: 4.5 x 15.0 x 8.80 in
Typical use: Fabricated water-to-air charge cooling on high-output builds

Notes

This part number does not appear in Garrett’s current intercooler catalog; the size and rating come from Turn 14
Supplied as a core; tanks, pump, heat exchanger and plumbing are not included
Confirm which dimension is the charge air path with us before designing tanks around it
Garrett offers other intercooler cores

Frequently Asked Questions

What is the Air-to-Liquid Intercooler Core 873213-6005? It is a Garrett charge air core cooled by liquid rather than by outside air. Turn 14 lists this Air-to-Liquid Intercooler Core at 4.5 by 15.0 by 8.80 inches with a 1250 horsepower rating. Garrett builds its air-to-liquid cores with bar and plate construction for compact, high-output charge cooling.
What else do I need to build a water-to-air system? The core is only the heat transfer element. A working system also needs tanks with charge air inlets and outlets, a coolant pump, a heat exchanger at the front of the vehicle to shed the heat, a reservoir, hoses and wiring for the pump. Plan the whole circuit before buying the core.
Why choose air-to-liquid over air-to-air? Packaging and charge pipe length. An air-to-liquid core can sit near the throttle body or inside an intake plenum, keeping the charge air path short, which helps response. An air-to-air core is simpler, with no pump or coolant, but needs room at the front of the vehicle and longer piping to reach it.
Is 1250 horsepower the power I will make? No. 1250 horsepower is the rating Turn 14 gives this core, a measure of how much charge air it is sized to cool, not an output figure. The power an engine makes depends on its turbocharger, fuel system and calibration. The core rating tells you the build can grow without the core becoming the limit.
Why is this part not on the Garrett website? Garrett does not show 873213-6005 in its current intercooler table, which lists a related 873213-6002 air-to-liquid core at 980 horsepower. The size and 1250 horsepower rating here come from Turn 14, the Garrett distributor. Contact us before ordering if you need more detail on its layout.

About Garrett

Garrett Motion has turbocharged engines since 1955, when its T15 was matched to the Caterpillar D9 crawler, and in 1962 a Garrett turbocharger went into the Oldsmobile Jetfire Turbo Rocket, the first turbocharged production car. Garrett has supplied turbocharging in Formula 1 with Scuderia Ferrari, the FIA World Rally Championship and the 24 Hours of Le Mans. It has operated as a stand-alone company since 2018, and its technology is fitted to around 150 million vehicles worldwide.
