Do the Charge Pipes for Ferrari 488 fit the GTB and the Spider?

Yes. The Charge Pipes for Ferrari 488 fit both the 488 GTB coupe and the 488 Spider from 2016 to 2019, since the two share the same 3.9-liter twin-turbo V8 and the same charge-pipe routing. They are a direct bolt-on in place of the factory pipes, so no cutting or custom work is needed on either body style.

Do I need a tune to run them?

No tune is required. The pipes match the factory diameter and routing and replace the plastic originals, so the car runs them on the stock calibration with no check engine light. Fabspeed recorded the 21 wheel horsepower and 23 lb-ft gain with no tune, so the power comes from flow alone.

Why replace the factory charge pipes?

The factory charge pipes are molded ABS plastic that turns brittle under years of heat and boost and can crack or split, which drops boost and can strand the car. Swapping them for polished 6061 aluminum removes that failure point, improves flow for a measured power gain, and sharpens the intake sound at the same time.

Will they make the turbos louder?

Yes. Aluminum carries sound where the factory plastic muffles it, so you hear more of the twin-turbos' whistle and the rush of air under boost, with a sharper intake note overall. It is a mechanical, induction-side sound rather than a louder exhaust, and it comes on strongest as boost builds through the mid-range.

Are the silicone air intake hoses included?

The silicone coupler hoses that seal the charge pipes are included. The separate Ferrari 488 silicone air intake hoses for the airbox side, and the BMC filter, are optional upgrades offered at checkout for an added cost. The charge pipes work fully on their own; the extra hoses and filter are there if you want to go further.

Is installation a direct bolt-on?

Yes. The pipes are a direct bolt-on replacement for the OEM charge pipes, using the factory connection points and the included silicone hoses. Most owners have a shop handle it to work cleanly around the hot-side plumbing, but there is no cutting, welding, or tuning involved.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

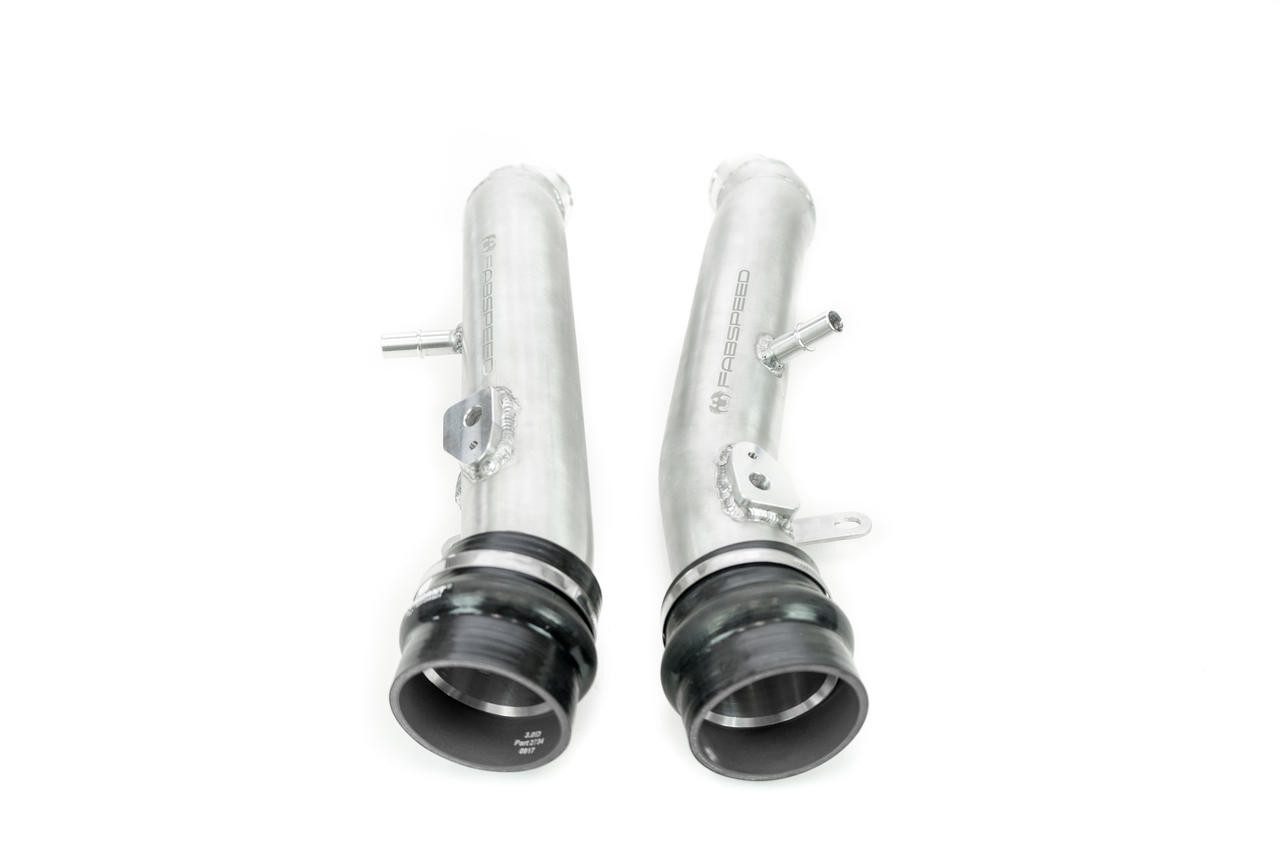

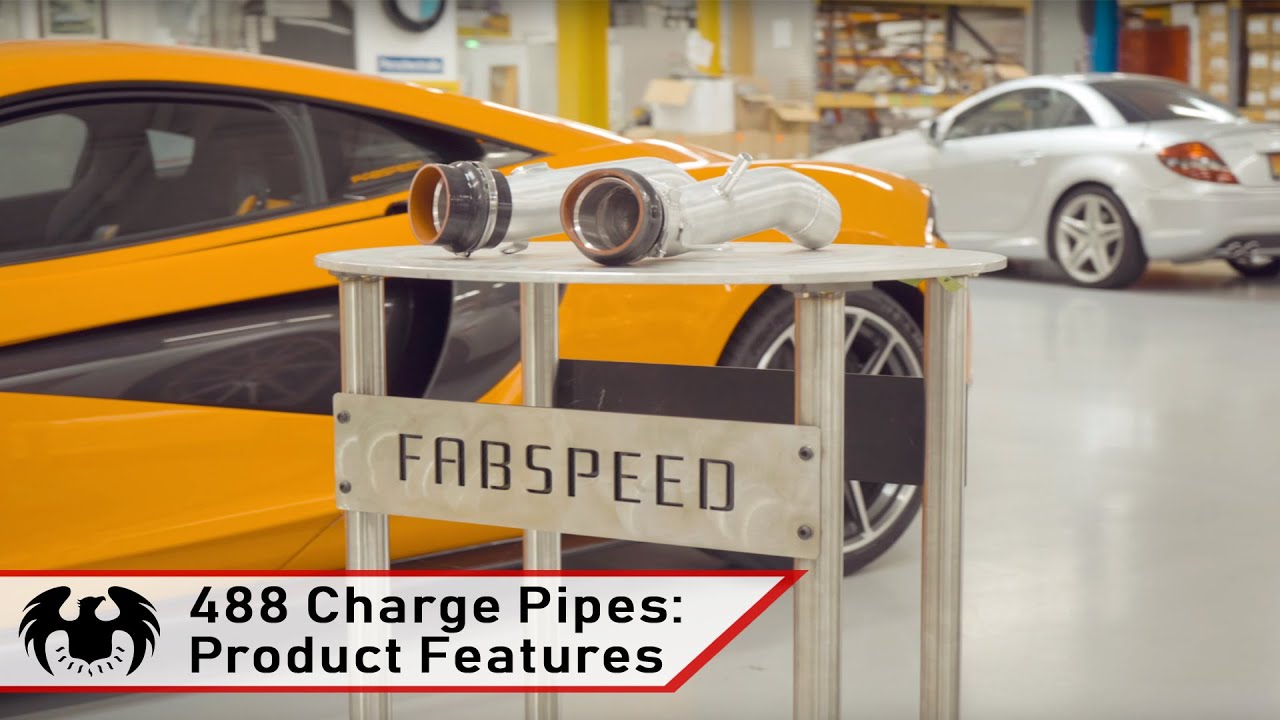

Fabspeed Pista Style Intake Charge Pipes for Ferrari 488 GTB / Spider

Introducing the Fabspeed Pista Style Intake Charge Pipes for the Ferrari 488 GTB—a cutting-edge upgrade designed to elevate your driving experience. Constructed from high-grade 6061 aluminum with a polished, mandrel-bent design, these intake charge pipes optimize flow and enhance heat dissipation. The kit includes a set of high-performance silicone hoses, ensuring improved sealing and the ability to maintain higher boost pressure. For those looking to maximize their engine’s efficiency, optional upgrades like the BMC Air Filter and Air Intake Hoses are available to further boost performance. Each piece is precision-engineered with CNC-machined outlets and inlets, plus connection beads for leak-proof sealing. This direct bolt-on replacement for the OEM plastic ABS charge pipes offers not only significant performance enhancements, particularly in the mid-range RPM, but also adds an aggressive exhaust note, letting you hear the exhilarating whistle of the turbos.

Features

Constructed from polished mandrel bent, high-grade 6061 aluminum for ultimate flow and high heat dissipation
CNC-machined outlet and inlet for precision with connection bead for leak-proof sealing
Adds an aggressive exhaust note for exotic high-performance sound
Adds +21 whp and +23 ft/lbs
Direct bolt-on replacement
No ECU tune necessary
Includes set of high performance free-flowing silicone hoses

Applications

Ferrari 488 GTB: F142M | 2016-2019 | 3.9L Twin-Turbo V8
Ferrari 488 Spider: F142M | 2016-2019 | 3.9L Twin-Turbo V8

Notes

All Fabspeed products are expected to ship within one week of order, though timelines are often much quicker

Frequently Asked Questions

Do the Charge Pipes for Ferrari 488 fit the GTB and the Spider? Yes. The Charge Pipes for Ferrari 488 fit both the 488 GTB coupe and the 488 Spider from 2016 to 2019, since the two share the same 3.9-liter twin-turbo V8 and the same charge-pipe routing. They are a direct bolt-on in place of the factory pipes, so no cutting or custom work is needed on either body style.
Do I need a tune to run them? No tune is required. The pipes match the factory diameter and routing and replace the plastic originals, so the car runs them on the stock calibration with no check engine light. Fabspeed recorded the 21 wheel horsepower and 23 lb-ft gain with no tune, so the power comes from flow alone.
Why replace the factory charge pipes? The factory charge pipes are molded ABS plastic that turns brittle under years of heat and boost and can crack or split, which drops boost and can strand the car. Swapping them for polished 6061 aluminum removes that failure point, improves flow for a measured power gain, and sharpens the intake sound at the same time.
Will they make the turbos louder? Yes. Aluminum carries sound where the factory plastic muffles it, so you hear more of the twin-turbos’ whistle and the rush of air under boost, with a sharper intake note overall. It is a mechanical, induction-side sound rather than a louder exhaust, and it comes on strongest as boost builds through the mid-range.
Are the silicone air intake hoses included? The silicone coupler hoses that seal the charge pipes are included. The separate Ferrari 488 silicone air intake hoses for the airbox side, and the BMC filter, are optional upgrades offered at checkout for an added cost. The charge pipes work fully on their own; the extra hoses and filter are there if you want to go further.
Is installation a direct bolt-on? Yes. The pipes are a direct bolt-on replacement for the OEM charge pipes, using the factory connection points and the included silicone hoses. Most owners have a shop handle it to work cleanly around the hot-side plumbing, but there is no cutting, welding, or tuning involved.

About Fabspeed

Fabspeed Motorsport is situated in Fort Washington, Pennsylvania, within the United States of America. Their extensive 26,000 sqft. facility serves as a hub for various car clubs, including Porsche Club of America, Ferrari, McLaren, Lamborghini, and more. The company is renowned for its comprehensive approach to product development. They handle the entire process, from design and engineering to dyno testing, street trials, and racing assessments, ensuring the quality and performance of every item. Fabspeed also collaborates closely with race engine builders and tuners hailing from Italy, Germany, and the United States, resulting in the creation of the Ultimate Performance parts. To cater to their passionate global audience, Fabspeed meticulously crafts systems using aerospace-grade austenitic stainless steel, titanium, and carbon fiber materials, setting a standard for excellence in the industry.
