Do the Fabspeed Muffler Bypass Pipes fit my Gallardo?

They fit the Lamborghini Gallardo from 2004-2008 with the 5.0L V10. The listing is offered in a 2004-2005 configuration and a 2006-2008 configuration, so you select the one that matches your model year. They install as a direct DIY bolt-on with no cutting or welding, using the factory mounting points.

What do they do, and how much do they change?

The Muffler Bypass Pipes replace the factory center muffler to free up flow, adding 30 hp and 25 ft-lbs across the rev range. They also remove 59 lbs from the rear of the car, since the stock Gallardo muffler is very heavy, which noticeably sharpens handling and acceleration on top of the gain in sound.

What are they made from?

Fabspeed CNC mandrel-bends the pipes from T304L stainless steel for durability, clean flow, and a precise fit. The stainless construction handles sustained heat and hard driving, and the pipes are backed by Fabspeed's lifetime warranty.

This is the loudest, rawest setup Fabspeed offers for the Gallardo. Replacing the factory muffler with a straight-through section produces a dramatic jump in volume and a hard, unfiltered V10 tone at all engine speeds, with no quiet mode, so it suits owners who want maximum sound.

Is installation difficult?

No. The pipes are a simple DIY bolt-on that needs no cutting or welding and installs at Level-1 difficulty using the factory mounting points. On 2007-2008 models the factory exhaust valves are removed in the process, which may trigger a check engine light.

Do they affect the catalytic system or emissions?

No. The Muffler Bypass Pipes replace the center muffler only, not the emissions hardware, so the catalytic system is untouched. They are a sound and weight upgrade; the main things to keep in mind are the increased volume for local noise laws and the possible check engine light on 2007-2008 cars from the removed valves.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

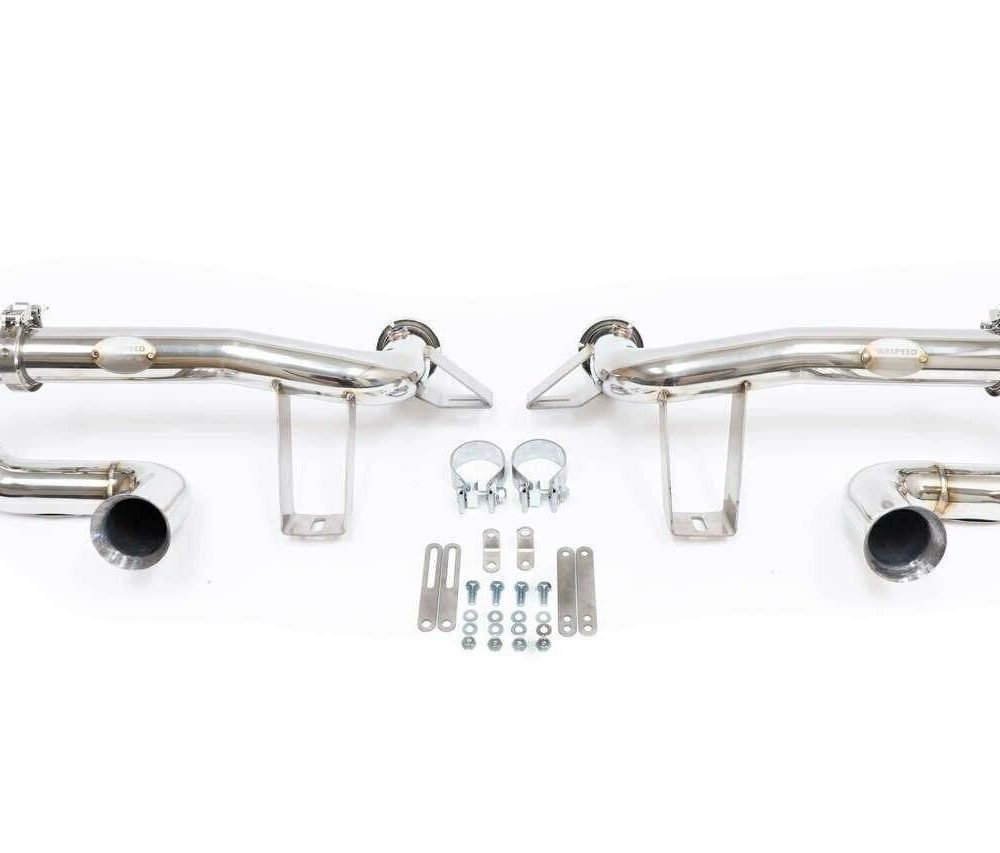

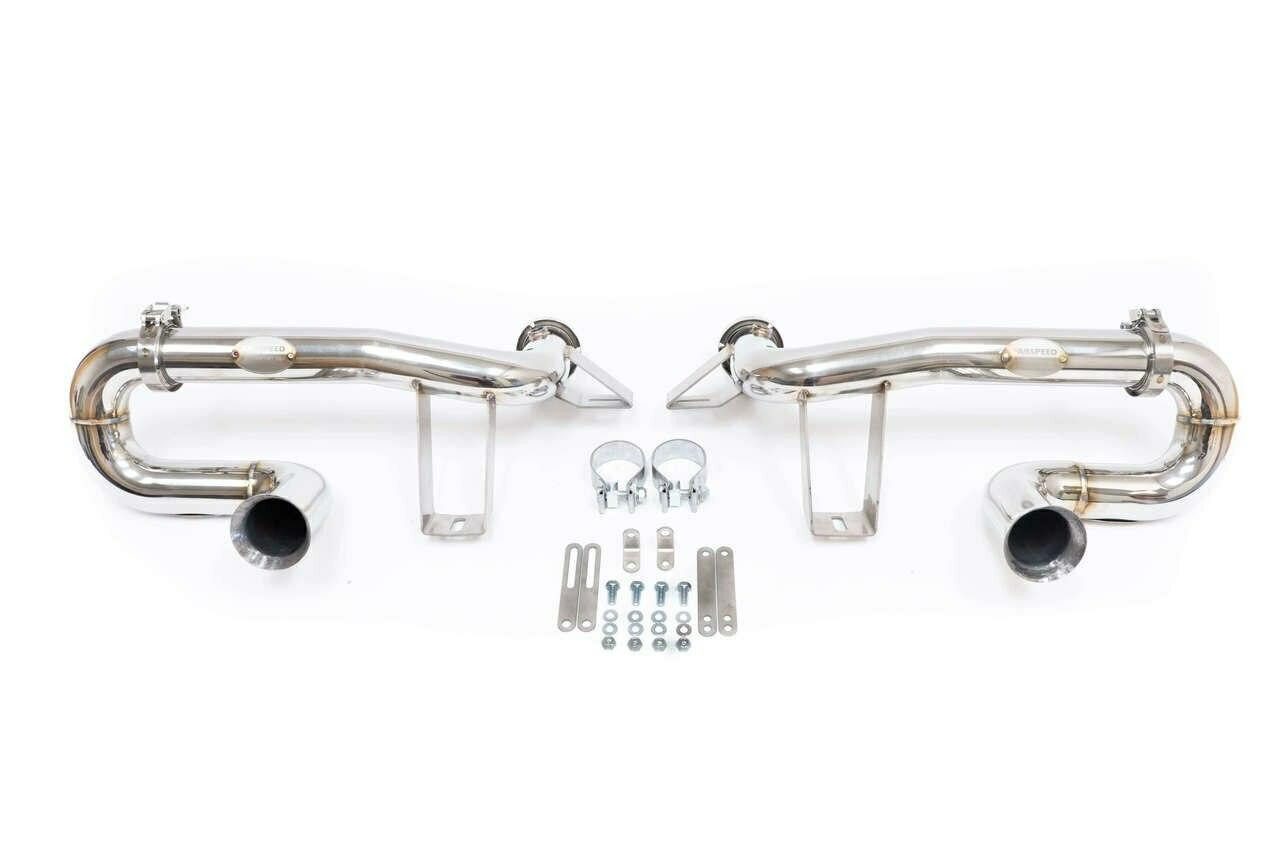

Fabspeed Muffler Bypass Pipes for Lamborghini Gallardo

Fabspeed’s Muffler Bypass Pipes for the Lamborghini Gallardo give the early 5.0L V10 the loudest, rawest voice in the catalog. Fabspeed Motorsport builds the pipes in-house in Fort Washington, Pennsylvania, CNC mandrel-bending T304L stainless steel to replace the heavy factory center muffler with a straight-through path. The result is a dramatic jump in sound and a gain of 30 hp and 25 ft-lbs across the rev range, along with a 59 lb weight saving pulled off the back of the car. They bolt in without cutting or welding, and they leave the rest of the exhaust in place. For the Gallardo owner who wants the most aggressive, unfiltered version of that V10, this is the loudest step Fabspeed makes for the car.

Features

Replaces the factory center muffler with a straight-through bypass
CNC mandrel-bent T304L stainless steel construction
Adds 30 hp and 25 ft-lbs across the rev range
Saves 59 lbs (26.8 kg) compared to the factory muffler
The loudest, rawest exhaust note Fabspeed offers for the Gallardo
Simple DIY bolt-on installation; no cutting or welding, Level-1 install difficulty
Lifetime warranty

Applications

Lamborghini Gallardo: 2004-2008 | 5.0L V10

Notes

Fits the Lamborghini Gallardo from 2004-2008 with the 5.0L V10; choose the 2004-2005 or 2006-2008 configuration to match your car
On 2007-2008 models, this removes the factory exhaust valves, which may trigger a check engine light
This is the loudest, rawest option Fabspeed offers for the Gallardo, so consider local noise laws for street use
Pair with the Fabspeed Competition Link Pipes for a full high-flow system
Special order item; expected to ship within one week of order
Backed by Fabspeed’s lifetime warranty

Frequently Asked Questions

Do the Fabspeed Muffler Bypass Pipes fit my Gallardo? They fit the Lamborghini Gallardo from 2004-2008 with the 5.0L V10. The listing is offered in a 2004-2005 configuration and a 2006-2008 configuration, so you select the one that matches your model year. They install as a direct DIY bolt-on with no cutting or welding, using the factory mounting points.
What do they do, and how much do they change? The Muffler Bypass Pipes replace the factory center muffler to free up flow, adding 30 hp and 25 ft-lbs across the rev range. They also remove 59 lbs from the rear of the car, since the stock Gallardo muffler is very heavy, which noticeably sharpens handling and acceleration on top of the gain in sound.
What are they made from? Fabspeed CNC mandrel-bends the pipes from T304L stainless steel for durability, clean flow, and a precise fit. The stainless construction handles sustained heat and hard driving, and the pipes are backed by Fabspeed’s lifetime warranty.
How loud are they? This is the loudest, rawest setup Fabspeed offers for the Gallardo. Replacing the factory muffler with a straight-through section produces a dramatic jump in volume and a hard, unfiltered V10 tone at all engine speeds, with no quiet mode, so it suits owners who want maximum sound.
Is installation difficult? No. The pipes are a simple DIY bolt-on that needs no cutting or welding and installs at Level-1 difficulty using the factory mounting points. On 2007-2008 models the factory exhaust valves are removed in the process, which may trigger a check engine light.
Do they affect the catalytic system or emissions? No. The Muffler Bypass Pipes replace the center muffler only, not the emissions hardware, so the catalytic system is untouched. They are a sound and weight upgrade; the main things to keep in mind are the increased volume for local noise laws and the possible check engine light on 2007-2008 cars from the removed valves.

About Fabspeed

Fabspeed Motorsport is situated in Fort Washington, Pennsylvania, within the United States of America. Their extensive 26,000 sqft. facility serves as a hub for various car clubs, including Porsche Club of America, Ferrari, McLaren, Lamborghini, and more. The company is renowned for its comprehensive approach to product development. They handle the entire process, from design and engineering to dyno testing, street trials, and racing assessments, ensuring the quality and performance of every item. Fabspeed also collaborates closely with race engine builders and tuners hailing from Italy, Germany, and the United States, resulting in the creation of the Ultimate Performance parts. To cater to their passionate global audience, Fabspeed meticulously crafts systems using aerospace-grade austenitic stainless steel, titanium, and carbon fiber materials, setting a standard for excellence in the industry.
