How many bolts are in a set?

Ten bolts per quantity ordered. A complete four-wheel vehicle set requires two sets.

Which bolt length do I need?

Match the bolt length to your spacer thickness; 62mm bolt with the 10mm spacer, 67mm bolt with the 15mm spacer, 72mm bolt with the 20mm spacer.

What torque should I use?

Refer to your vehicle manufacturer specifications for the proper dry torque setting. Do not use impact tools or anti-seize compounds, both will void any applied warranties.

What is the thread pitch?

M14x1.5, matches the OEM Ferrari thread spec for these chassis.

Do the bolts work without spacers?

These are extended-length bolts engineered for use with wheel spacers. For standard OEM-fit applications without spacers, use the OEM-length bolt.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

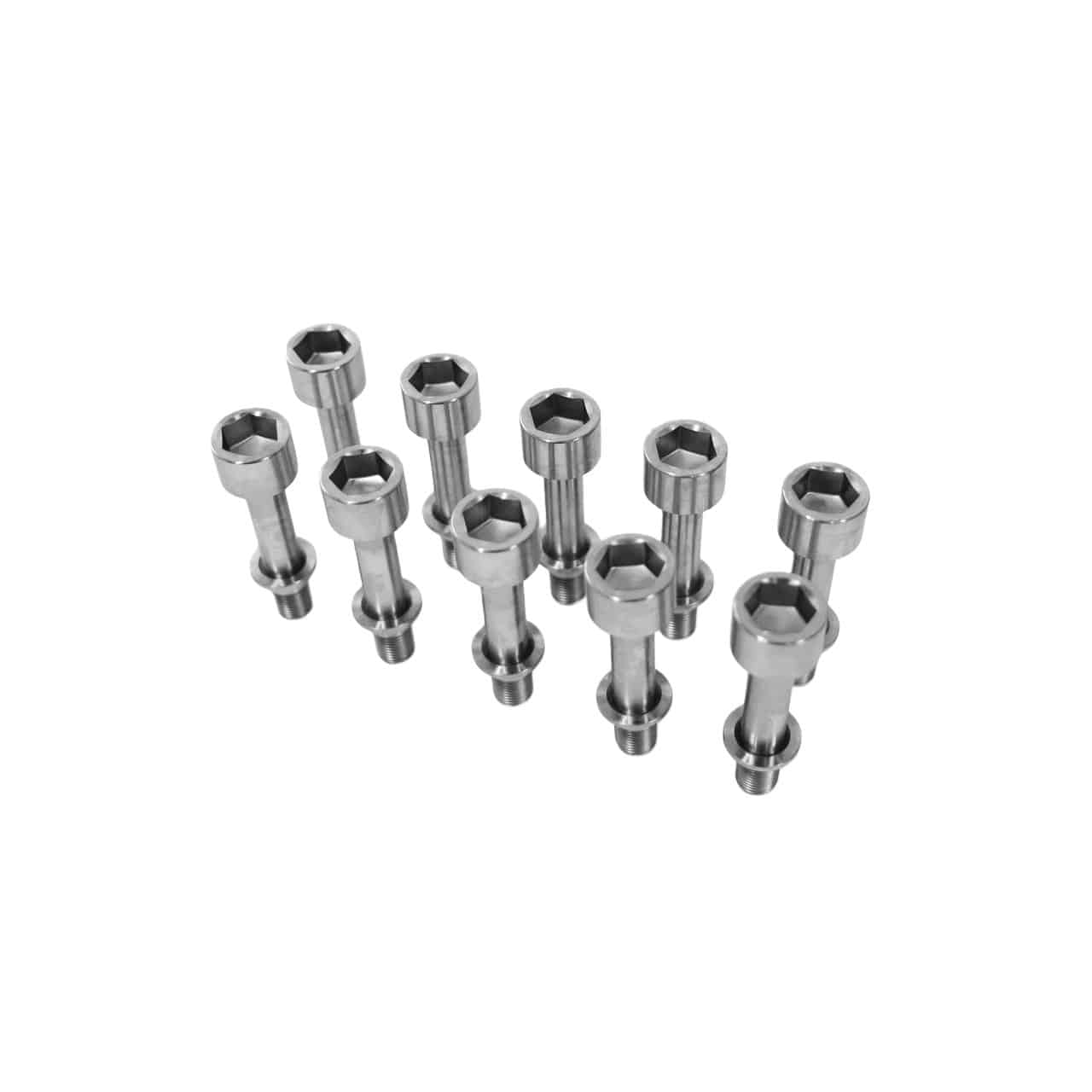

Exotic Car Gear Polished Titanium 2-Piece Extended Wheel Bolt Set (10-pieces) for Ferrari 458, 488, 599, 812, F8, F12, FF, GTC4Lusso, Portofino, and SF90

Exotic Car Gear’s extended titanium wheel bolts are hot-forged from Gr5 Ti-6Al-4V titanium with rolled threads for fatigue resistance and finished in a polished Titanium Nitride coating that reads clean without pulling attention away from the wheel. Built to M14x1.5 spec for the Ferrari 458, 488, 599, 812, F8, F12, FF, GTC4Lusso, Portofino, and SF90, each ten-bolt set is available in 62mm, 67mm, or 72mm to pair correctly with 10mm, 15mm, and 20mm spacers respectively. At 63g per bolt versus 128g for OEM steel, the roughly 40% weight reduction is a meaningful drop in unsprung rotational mass at the wheel face.

Features

Hot-forged Gr5 Ti-6Al-4V titanium for higher strength than machined-head bolts
Rolled threads vs. cut threads for greater fatigue resistance and reduced galling
Polished Titanium Nitride finish
Compliant with DIN 912/933/7991/7984/6921, ISO 7380, JIS, BS
Around 40% weight savings per bolt
Available in 62mm, 67mm, and 72mm
Level-1 install difficulty
10-bolt set sold per quantity ordered

Specifications

Tensile Strength: 900MPa ~ 1050MPa (130,000psi – 152,000psi)
Thread Pitch: M14x1.5
Quantity: 10 bolts
Finish: Polished titanium nitride finish
Weight:
- ECG OEM Spec Ti Bolt: 63g
- OEM Steel Bolt: 128g

Applications

Ferrari 458 Italia: F142 | 2009-2015
Ferrari 458 Speciale: F142 | 2013-2015
Ferrari 458 Spider: F142 | 2011-2015
Ferrari 488 GTB: F142M | 2015-2019
Ferrari 488 Pista: F142M | 2018-2019
Ferrari 488 Pista Spider: F142M | 2018-2019
Ferrari 488 Spider: F142M | 2015-2019
Ferrari 599 GTB Fiorano: F141 | 2007-2012
Ferrari 599 GTO: F141 | 2010-2012
Ferrari 812 Competizione: F152M | 2021-2024
Ferrari 812 Competizione A: F152M | 2021-2024
Ferrari 812 GTS: F152M | 2019-2024
Ferrari 812 Superfast: F152M | 2017-2024
Ferrari F8 Tributo: F142MFL | 2019-2023
Ferrari F8 Spider: F142MFL | 2019-2023
Ferrari F12berlinetta: F152 | 2012-2017
Ferrari F12tdf: F152 | 2015-2017
Ferrari FF: 2011-2016
Ferrari GTC4Lusso: F151M | 2016-2020
Ferrari GTC4Lusso T: F151M | 2017-2020
Ferrari Portofino: F164 | 2017-2023
Ferrari Portofino M: F164 | 2021-2023
Ferrari SF90 Spider: F173 | 2020-present
Ferrari SF90 Stradale: F173 | 2020-present

Notes

Sold as a set of 10 bolts (one wheel set with 4 wheel spacers requires two sets)
These bolts pair with ECG’s wheel spacers, please refer to guide below:
- 10mm spacers = 62mm extended bolts
- 15mm spacers = 67mm extended bolts
- 20mm spacers = 72mm extended bolts

Frequently Asked Questions

How many bolts are in a set? Ten bolts per quantity ordered. A complete four-wheel vehicle set requires two sets.
Which bolt length do I need? Match the bolt length to your spacer thickness; 62mm bolt with the 10mm spacer, 67mm bolt with the 15mm spacer, 72mm bolt with the 20mm spacer.
What torque should I use? Refer to your vehicle manufacturer specifications for the proper dry torque setting. Do not use impact tools or anti-seize compounds, both will void any applied warranties.
What is the thread pitch? M14x1.5, matches the OEM Ferrari thread spec for these chassis.
Do the bolts work without spacers? These are extended-length bolts engineered for use with wheel spacers. For standard OEM-fit applications without spacers, use the OEM-length bolt.
