Eventuri Matte Carbon Intake System for E90 / E92 / E93 BMW M3

Eventuri Matte Carbon Intake System for E90 / E92 / E93 BMW M3

The BMW E9X M3 Eventuri intake system is the culmination of thorough research and optimization efforts that enhance what is already one of the best-designed stock intake systems Eventuri has encountered. The original E9X stock airbox system is adeptly designed to provide an excellent flow path and ambient air feed system. However, upon closer inspection, Eventuri identified restrictions in the inlet tube connecting the airbox to the inlet manifold. By redesigning this tube while retaining the airbox, they enabled the V8 engine to breathe more efficiently, thereby increasing power. Furthermore, Eventuri discovered an additional restriction in the air feed system. To address this, they developed a scoop that increases airflow through the airbox, further reducing inlet temperatures and enhancing the system’s performance.

Carbon Intake Tube

• The intake tube was engineered to enhance the airflow path from the filter to the manifold compared to the stock tube. It features a one-piece design without internal interfaces, providing a smoother path for airflow. Additionally, the tube transitions from a circular opening at the filter end to an oval exit for the manifold, a more efficient shape change compared to the stock tube’s transition from a rectangular filter opening to an oval manifold exit.

Closer Look at the Stock System:

• The stock intake tube incorporates two concertina sections to allow flexibility for engine movement. These sections create multiple internal interfaces, causing turbulence and reducing the efficiency of the airflow path. In contrast, the Eventuri tube has no internal interfaces, allowing for laminar airflow and more efficient engine breathing. The stock tube also features a large internal face at the filter connection, where the sharp geometry change from rectangular to oval causes airflow to circulate and enter the tube turbulently.

Flexibility and Movement:

• Addressing the need for movement with the engine was a critical challenge. Rather than using silicon couplers with flexible sections, which would introduce interfaces similar to those in the stock tube, Eventuri designed the tube to move with the engine. It includes a compressible neoprene band around the section that interfaces with the stock airbox. This design seals the tube to the airbox while allowing it to move in and out as the engine shifts. This approach ensures that the airflow path remains as smooth as possible, enhancing overall performance.

Carbon Air Scoop

• The E9X M3 airbox system receives cold air from two primary sources: a lower feed located beneath the headlamp and an upper feed positioned behind the kidney grills. The main source of airflow is the lower feed, which directly connects to the airbox via a large opening and undergoes minimal directional changes. This area is a high-pressure zone where air flows from underneath the vehicle to the top, exiting through the vent in the bonnet. Conversely, the upper feed behind the kidney grills, despite being beneficial, supplies a significantly lesser volume of air compared to the lower feed. This reduction is due to the air needing to make two 90-degree turns and the duct narrowing considerably before reaching the airbox.
• Upon closer examination of the lower duct, it is evident that there is a prominent ridge that curves back towards itself just before the airbox opening. This ridge functions as a barrier, impeding the direct flow of air into the box by decreasing the speed at which air enters.
• By creating a scoop that sits atop the stock duct and curves upward earlier to remove the ridge, airflow can now move from the duct to the airbox without any obstruction.
• The airflow path becomes much smoother with the redesigned scoop, significantly boosting the velocity at which air enters the airbox. This adjustment results in lower intake temperatures; Eventuri’s data logging on the road demonstrated a 2-degree decrease in intake air temperature (IAT) with the scoop in place. To demonstrate the scoop’s effectiveness, Eventuri conducted a simple experiment using a leaf blower to create airflow and an airspeed meter to gauge the speed of the air entering the airbox. The blower was fixed in a position that directed air straight into the lower duct, and the meter was placed inside the airbox to record the incoming air speed. The results indicated a notable increase in air speed, nearly 50%, attributable to the use of the scoop.

Debris Shield

• The final component is a debris shield attached to the filter – this deflects debris and water from impacting the filter directly. With the increase of airflow entering the airbox with the scoop – this is an important addition. There is no negative impact on performance since the airflow is not impeded through the airbox – temperatures are still lower than stock.

Features

• Improved power and sound
• 1-piece design
• Carbon air scoop
• Debris shield
• Matte Finish

Specifications

• Performance Dyno: 8-10hp / 10-12ft-lb
• Performance Road Dyno (Insoric): 16hp / 14Nm
• IAT Difference with Ambient:
  • Stock: 7.5C
  • Eventuri: 4.5C
• V-Box Acceleration: 100-200kph reduced by 0.3 Seconds

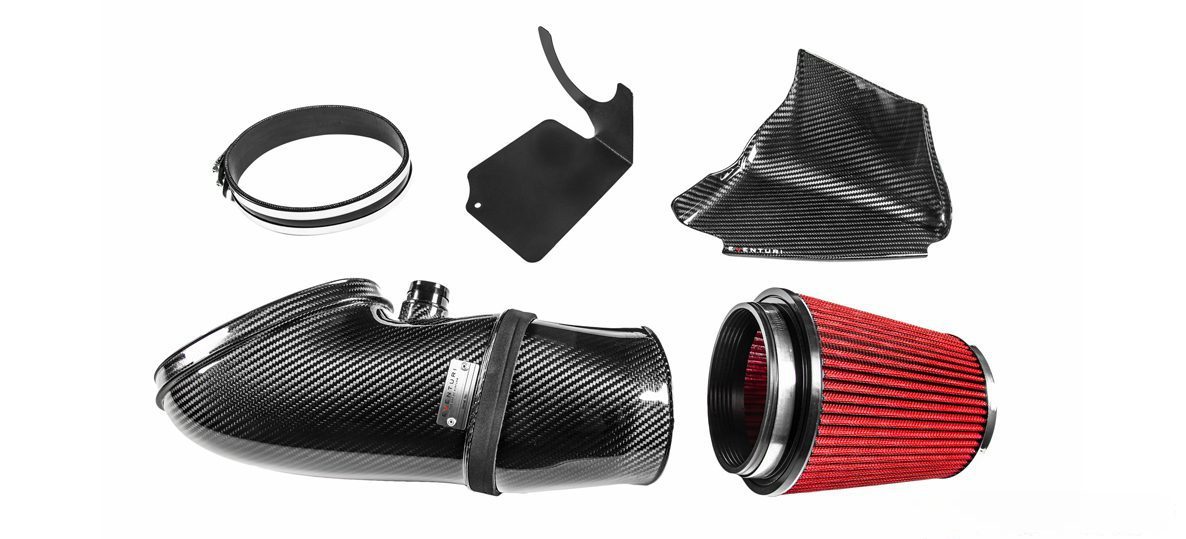

What’s Included

• Carbon intake tube
• Carbon inlet scoop
• CNC machined breather adapter
• High flow urethane cone filter
• Laser cut stainless steel debris guard
• Silicon coupler and OEM specification clamps

Applications

• BMW M3: E90, E92, E93 (2007-2013) – 4.0L V8 S65

Notes

• Some images shown with the optional Carbon Airbox Lid
• The gloss carbon intake system can be found here
• This item is not eligible for return
