Eventuri Hybrid Carbon Airbox System for E85 / E86 BMW Z4 M [EVE-Z4MABX-CF-INT]
The Eventuri E85 E86 Z4 M hybrid carbon intake system is one of the most complete induction upgrades available for the BMW Z4 M. Engineered specifically for the S54 engine, it combines a hand-laid carbon fiber airbox with a polyurethane inlet to replace the factory airbox entirely, directing cold, dense air straight to the engine while isolating it from underhood heat. If you’re running an E85 or E86 Z4 M and looking for a high-quality, performance-proven intake solution, this is the system.
How It’s Built
The airbox itself uses a hybrid construction: the outer shell is hand-laid carbon fiber, while the inner liner is a smooth, non-porous surface designed to reduce turbulence and prevent heat absorption from the engine bay. The polyurethane inlet pipe connects the airbox to the throttle body and is shaped to maintain consistent airflow velocity through the system. The foam filter is sized to the inlet and provides the filtration surface. Together, these materials keep the charge air cooler and flowing more efficiently than the factory setup.
Performance and Results
Eventuri’s testing data for the E85 / E86 Z4 M system shows gains of 7 to 10 horsepower and 5 to 8lb-ft of torque across the rev range. Those figures come from dyno testing conducted by Eventuri using a direct comparison with the stock airbox under controlled conditions. In addition to peak numbers, the system is engineered to improve throttle response and mid-range delivery, which is where the S54 is most sensitive to induction quality. The sound character also changes noticeably, with a more aggressive induction note at higher RPM.
Features
- Hand-laid carbon fiber airbox with smooth inner liner
- Polyurethane inlet pipe for consistent airflow velocity
- High-flow foam filter included
- Complete hardware kit, no additional parts needed
- Direct OEM airbox replacement; no permanent modifications
- Fits E85 and E86 Z4 M with S54 engine

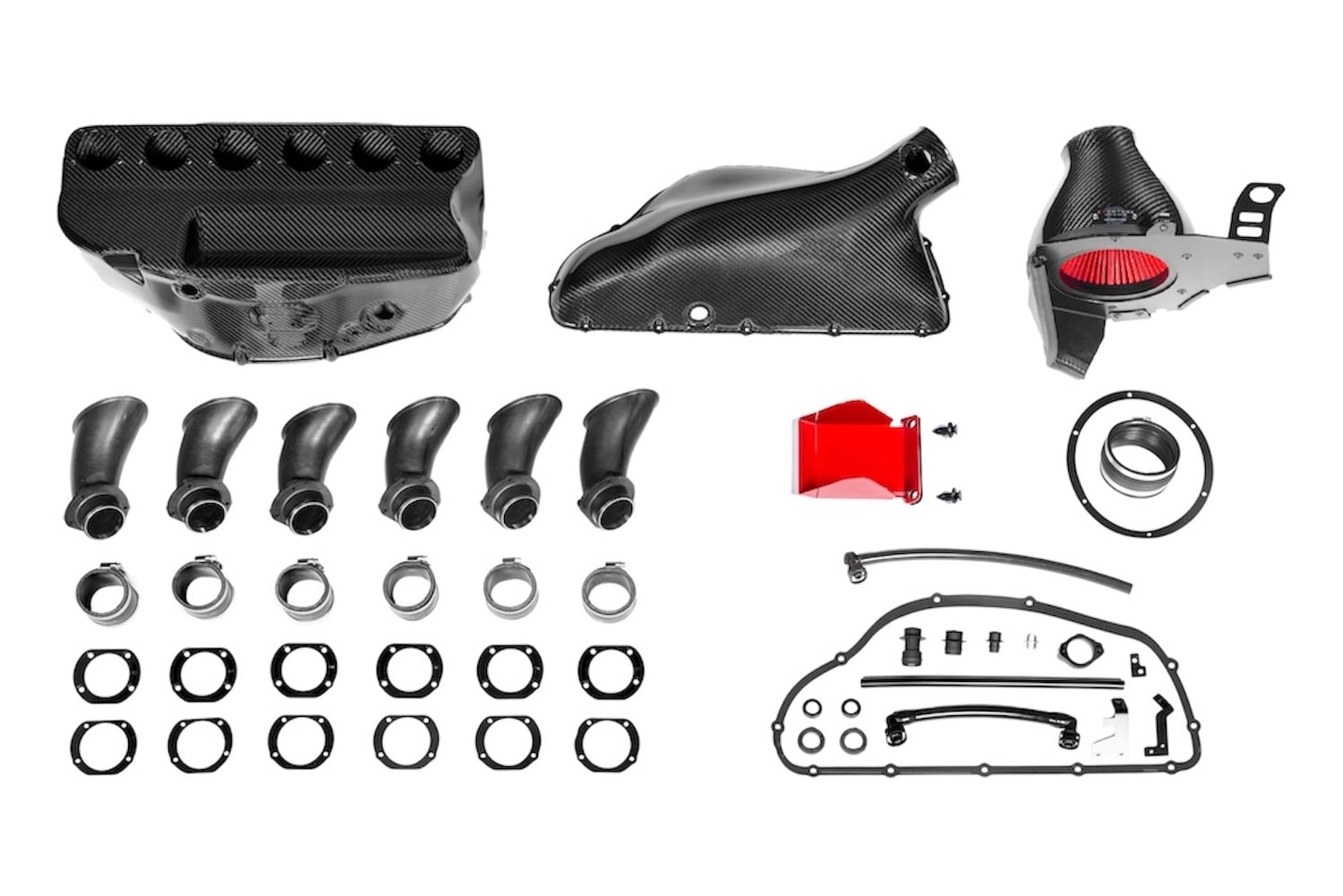

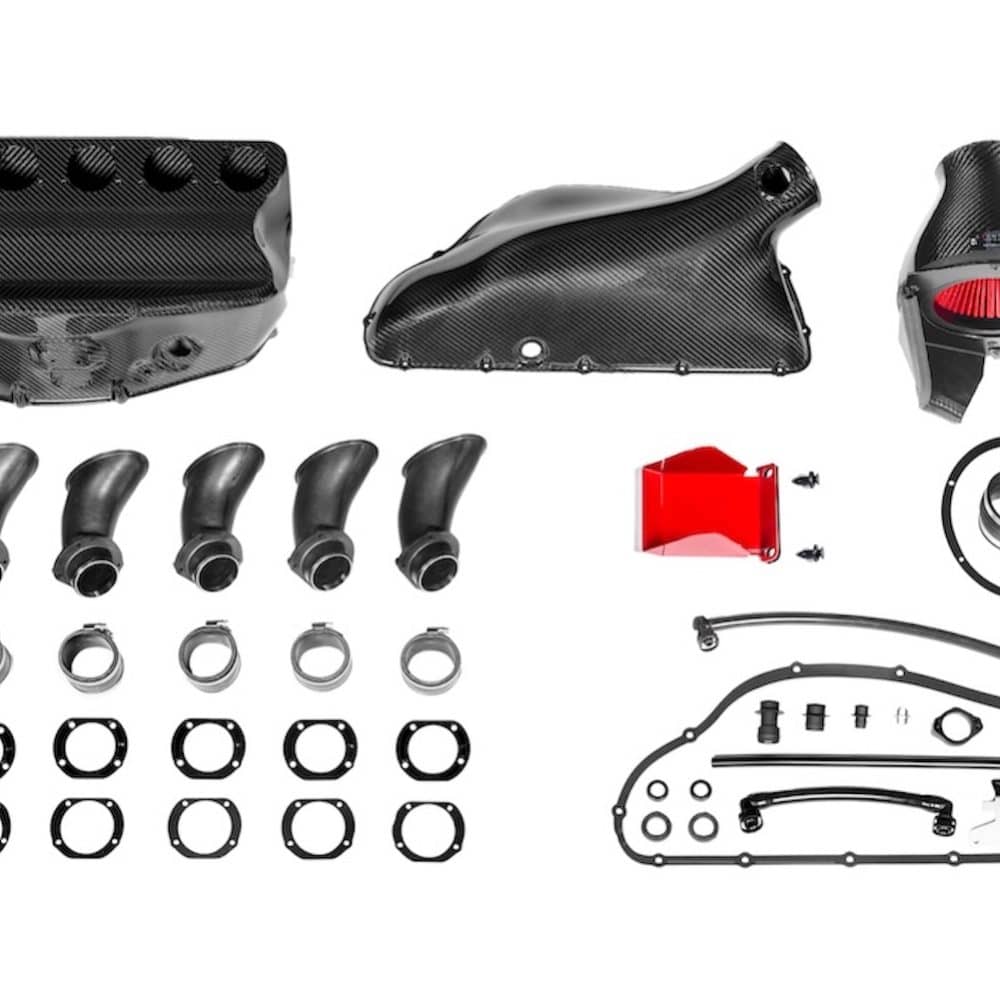

What’s Included
- Carbon fiber main airbox
- Carbon fiber airbox snorkel with integrated MAF tube
- Thermoplastic intake trumpets with stainless reinforcement rings
- Carbon fiber Venturi filter housing
- Bespoke high-flow dry air filter
- Custom intake system specific to Z4 M
- Carbon cold-air scoop
- Stainless steel brackets and mounting hardware
- CNC-machined breather adapters
- Crankcase breather hose
- Additional vacuum tubing
- Silicone couplers and EPDM flexible coupler
Applications
- BMW Z4 M Roadster: E85 | 2006-2008 | S54B32 – 3.2L I6
- BMW Z4 M Coupé: E86 | 2006-2008 | S54B32 – 3.2L I6
Notes
- The factory or existing Z4 M intake cannot be reused
- No ECU tuning required, utilizes OEM MAF sensor
- Replacement filter available here
About Eventuri
Eventuri was founded by a team of engineers and enthusiasts with a background in Aeronautics and tuning – all sharing a passion for cars and performance. After owning various intakes over many years for their own cars and being disappointed with the gains which seldom lived up to their claims – they decided to take things into our own hands and rewrite the book. To set a new benchmark in intake design and technology, above all – to engineer systems which provide real gains and then to publish genuine figures. Their systems are extensively developed using cutting edge design, testing and prototyping methods. With a focus on performance, each design undergoes CFD analysis and is then validated at the prototype stage through volumetric airflow, intake temperature and extensive dynamometer testing. They strive to publish all the development information to illustrate the depths they go to in bringing an intake from concept to reality. Only the best materials are selected for each component – even down to the choice of fasteners and fixings in order to ensure that the quality of the end product is second to none. After many years of disappointment with the usual aftermarket intakes, they are proud to be raising the bar and creating intake systems which are setting a new standard and genuinely improve the performance of your vehicle.
FAQ
Does the Eventuri hybrid carbon intake system fit both the E85 and E86 Z4 M? Yes. The Eventuri E85 E86 Z4 M hybrid carbon intake system is designed to fit both the E85 roadster and E86 coupe variants of the BMW Z4 M equipped with the S54 engine. The system replaces the factory airbox assembly directly, with no permanent modifications required to fit either body style.
What power gains can I expect from the Eventuri Z4 M intake system? Eventuri’s own testing data shows gains of 7 to 10 horsepower and 5 to 8lb-ft of torque on the BMW Z4 M with the S54 engine. Results are based on dyno comparisons against the stock airbox under controlled conditions. Individual results may vary depending on vehicle condition, tune, and other modifications.
What materials are used in the Eventuri E85 E86 Z4 M hybrid carbon intake system? The airbox uses a hybrid construction with a hand-laid carbon fiber outer shell and a smooth inner liner to reduce heat absorption and turbulence. The inlet pipe is polyurethane, shaped to maintain consistent airflow velocity. A high-flow foam filter is included and sized specifically for this system.
Does the Eventuri Z4 M intake require professional installation? The system installs with standard hand tools and requires no permanent modifications to the vehicle. Eventuri provides installation instructions and the kit ships with all necessary mounting hardware. Professional installation is recommended if you are not familiar with intake system work on the S54 engine, though an experienced DIY mechanic can complete the job.
What is included in the Eventuri E85 / E86 Z4 M hybrid carbon airbox kit? The kit includes the hybrid carbon fiber airbox, a polyurethane inlet pipe, a high-flow foam filter, and all required mounting hardware. It is a complete, ready-to-install system designed to replace the factory airbox without the need to source additional components.
